Overview

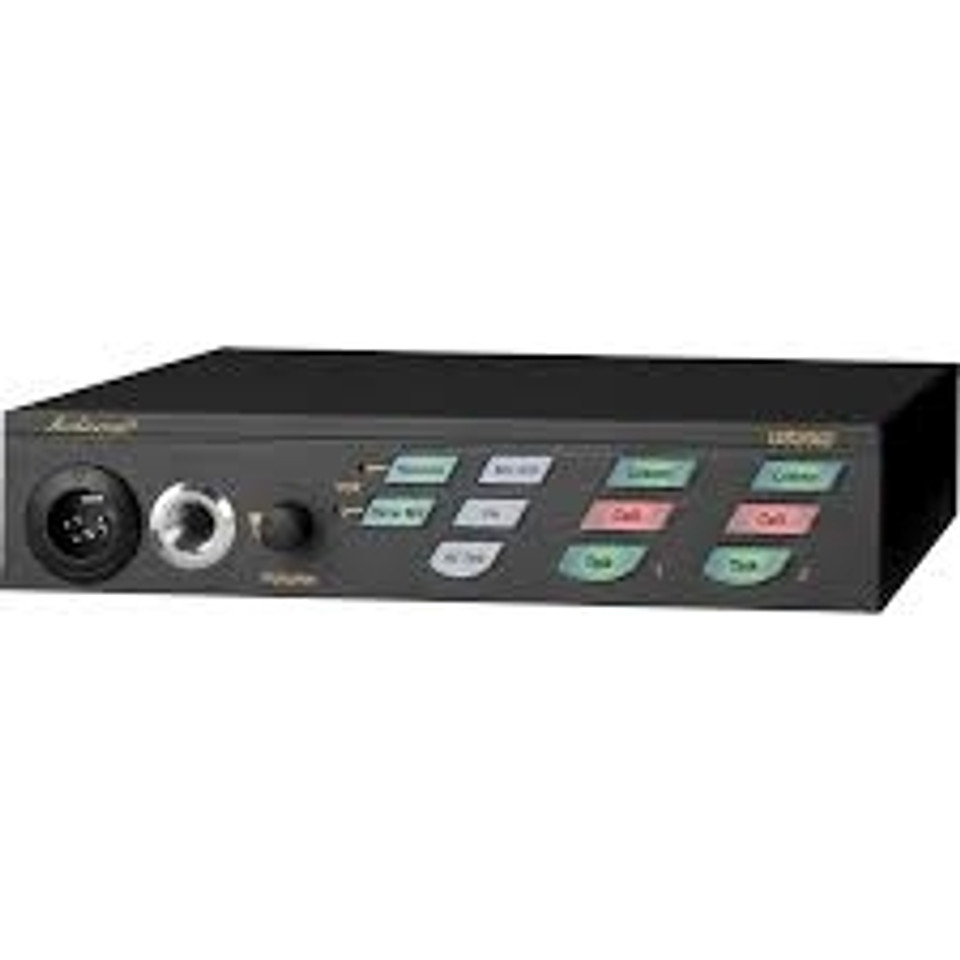

2 Ch user/main station with external balanced/unbalanced selector switch, dynamic mic headset jack (XLR-4M), gooseneck mic jack (1/4" locking), separate channel program input (DB9F) and level control, call light and audible tone and level control, (4) XLR-3 channel connectors (one M/F per channel), PA output (1/8" stereo phone jack) and (2) RCA speaker output jacks (one per channel), 1/2 rack wide by 1 high. Requires a power supply.

Balanced Audio Transmission

Balanced audio transmission system for crisp clean audio even under the most challenging conditions.

Headset Operation

For Noise Reduction and Privacy

Remote Mic Kill

Remote mic kill feature allows users to silence any open mic on the intercom channel.

Digi-Latch Technology

Separate Listen, Call, and Talk buttons with Digi-Latch technology gives users complete control of system communications while maintaining ease of operation.

Backlit Buttons

Backlit buttons with lettering on the button allow users to see which button to push even in darkened room environments.

â…›-Inch Rear Data Connector

Convenient â…›-inch rear data connector allows the Master Station to be linked with one or more ES-4000A Expansion Stations for access of up to 22 intercom channels.

VOX Feature

VOX (voice activated microphone) feature is on/off programmable via front panel with individual trim pots for headset and front panel microphones.

Rack Mountable

Rack mountable in a variety of modular configurations with one of several optional rack mount kits.
