Overview:

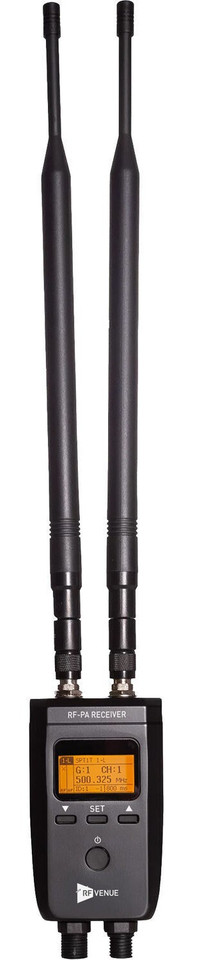

The RF Venue RF PA Receiver is a professional UHF wireless receiver designed for extending PA audio to remote locations—indoors or outdoors—without running long cables or setting up complex network systems. Operating in the dependable 470 to 506 MHz band, it delivers clear, full-range audio to secondary zones such as lobbies, green rooms, patios, or overflow areas with ease.
Built for Real-World Use
Housed in a rugged, IP54-rated enclosure, the RF PA Receiver is built to handle the demands of touring, rental, and event production. It's the perfect choice for live sound providers, AV installers, and event managers who need to deliver consistent, professional audio across multiple locations without the cost and hassle of cabling.
Simple Setup, Professional Results
Setup is quick and intuitive: just connect power, attach the included antenna, and link to an RF Venue transmitter. With its compact form factor and versatile mounting hardware, the RF-PA-RX integrates easily into any system and delivers reliable performance every time.
Specs:
General
Compatibility
RF Venue RF PA Transmitter
Display
Panel Type
LCD
Display Size
Not Specified by Manufacturer
Touchscreen
No
Inputs/Outputs
Audio I/O
1x Mini-XLR Output
Wireless
Wireless
UHF
*Built-In
Power
Power Source
AC Input (Included)
AC Input Power
120 to 240 VAC, 50 / 60 Hz
DC Input Power
12 VDC at 0.5 A
Physical
Mounting
Back: 1x 10mm Bolt
Back: 1x Hook-and-Loop Fastener
Color
Black
Environmental Resistance
Dust/Water-Resistant (IP57)
Operating Conditions
14 to 122°F / -10 to 50°C
Dimensions
14.3 x 2.8 x 1.2" / 362 x 70 x 30 mm
Weight
1 lb / 454 g
Packaging Info
Package Weight
1.45 lb
Box Dimensions (LxWxH)
14.8 x 4.1 x 2.5"
