Overview

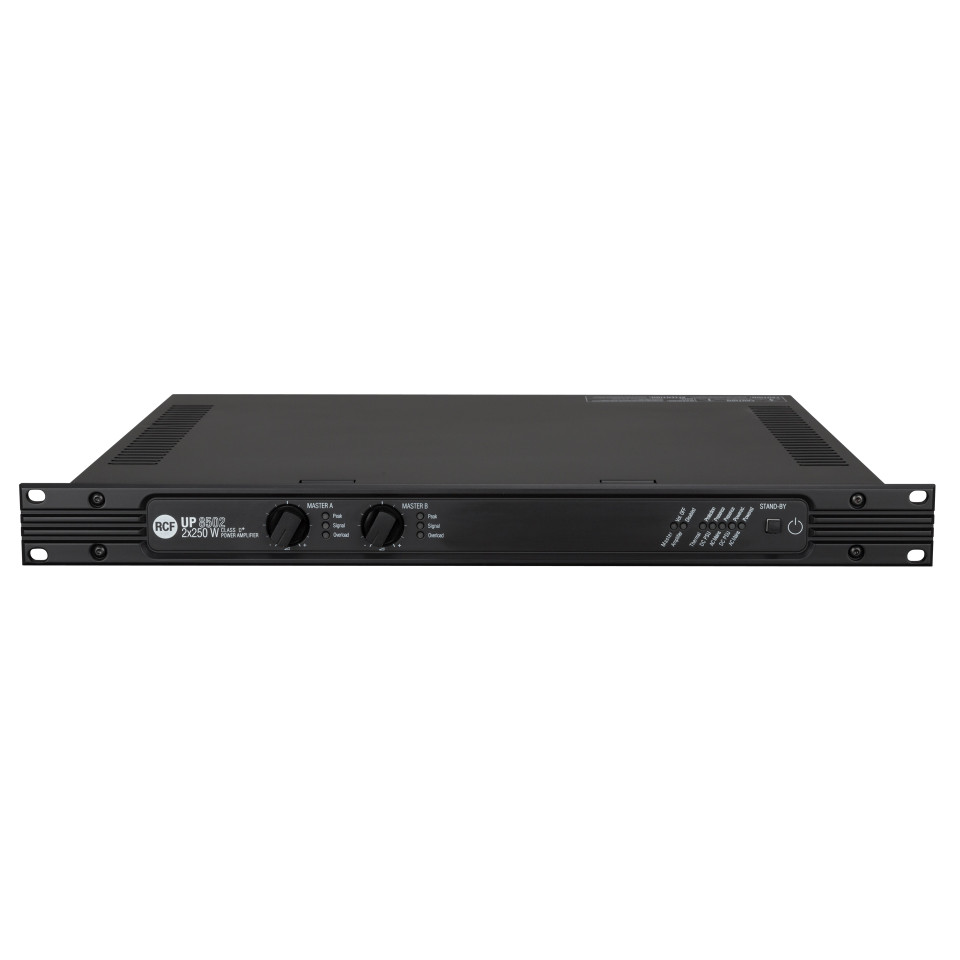

The UP 8500 series power amplifiers are designed with an innovative RCF power supply and amplification technology. The full digital technology allows merging extremely high efficiency both with AC and DC power supply, pro audio quality reproduction and compactness. All UP 8500 series power amplifiers are certified according to EN 54-16 standard in combination with DXT 7000 Voice Alarm system.
Features
- 2 x 250 W power amplifier
- 2 inputs per channel
- Dual AC and DC power supply
- Priority circuit
- No output lines tranformers
- Status LEDs on front panel
Specifications
Amplifier
- Amplifier Class: D
- Number of channels: 2
- Power output (@ 100V): 500W RMS
- Frequency Response (-3dB): 40Hz - 16kHz
- Signal/noise rate (”A” weighted) >86dB
- Crosstalk
- Distortion (THD+N) @ 1kHz nominal power:
Input section
- Total number of inputs: 4
- Balanced: 4
- Mono: 2
- Stereo: 2
- Line inputs: 4
- Line connectors: Euroblock
- General Purpose Inputs (GPI): 4
Output section
- Power output connectors: Euroblock
- General Purpose Outputs (GPO): 1
- Controls Configuration: DIP switch, Front panel
- Priority: Yes
Protections
- Cooling: Forced
- Short circuit: Yes
- Thermal: Yes
- DC: Yes
- Fuses: Yes
Power requirement
- Operating voltage: 220-240/115V~ 50/60Hz V ~ Hz
- Voltage selection: Internal
- DC power: Yes
- DC power value: 48V
- Power consumption: 800W
- Standard compliance EN54-16 certified: Yes
- CE marking: Yes
- CPR number: 1438-CPR-0241
Physical specifications
- Cabinet/Case Material: Metal
- Color: Black
- Rack mounting: 19", 1U
Size
- Height: 44mm / 1.73 inches
- Width: 482mm / 18.98 inches
- Depth: 375mm / 14.76 inches
- Weight: 5.2kg / 11.46lbs
Shipping information
- Package Height: 180mm / 7.09 inches
- Package Width: 550mm / 21.65 inches
- Package Depth: 480mm / 18.9 inches
- Package Weight: 7.2kg / 15.87lbs
