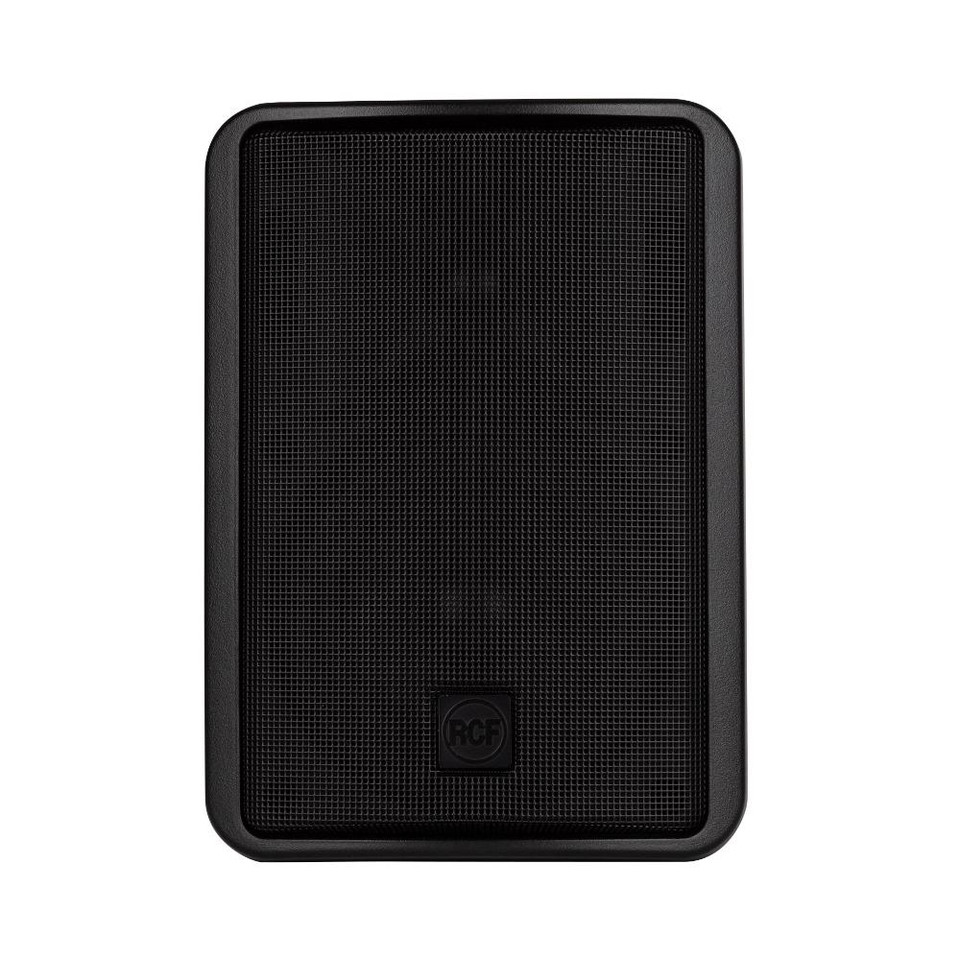

MR 40 is a bass-reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make the MR 40 the perfect speaker for listening in demanding applications.

• 40 W RMS power handling
• 108 dB max SPL
• 70 ÷ 20000 Hz frequency range
• 110° x 100° coverage angles
• 1 x 4" woofer (1’’ v.c.)
• 1 x 1" neodyminum dome tweeter (0.8’’ v.c.)
• Self-extinguishing plastic cabinet
• Wall mount accessory included
• M6 inserts available for optional U bracket
• 4 pole EUROBLOCK connector (audio input and parallel link output)
• Finish: Black or White

Acoustical Specifications

• Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
• Max SPL @ 1m: 108 dB
• Horizontal coverage angle: 110°
• Vertical coverage angle: 100°
• Directivity index Q: 7
• System Sensitivity: 86 dB

Power Section

• Nominal Impedance (ohm): 8 ohm
• Power Handling: 40 W RMS
• Peak Power Handling: 160 W PEAK
• Recommended Amplifier: 80 W
• Protections: Bulb lamp
• Crossover Frequencies: 3000 Hz

Transducers

• Dome Tweeter: 1.0'' neo, 0.8'' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 10 W AES, 20 W PROGRAM POWER
• Sensitivity: 93 dB, 1W @ 1m
• Woofer: 4.0'', 1.0'' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 40 W AES, 80 W PROGRAM POWER
• Sensitivity: 86 dB, 1W @ 1m

Input/Output section

• Input connectors: Euroblock
• Output connectors: Euroblock

Standard Compliance

• CE marking: Yes

Physical Specifications

• Cabinet/Case Material: Plastic
• Hardware: Wall mount bracket
• Grille: Steel
• Colour:
  • Black - RAL 9005
  • White – RAL 9003

Size

• Height: 216 mm / 8.5 inches
• Width: 154 mm / 6.06 inches
• Depth: 135 mm / 5.31 inches
• Weight: 2.2 kg / 4.85 lbs

Shipping Information

• Package Height: 285 mm / 11.22 inches
• Package Width: 400 mm / 15.75 inches
• Package Depth: 235 mm / 9.25 inches
• Package Weight: 5.3 kg / 11.68 lbs
