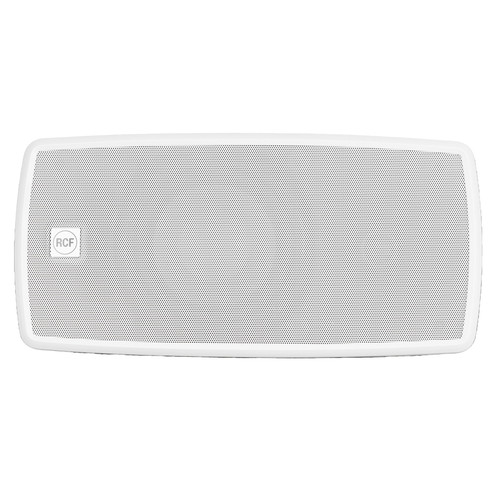

PMR 60T is a two-way pendant monitor speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and refined finishes, it is suitable for all environmental and architectural conditions. Featuring a 6.5’’ woofer and 80 W RMS power, it is also equipped with a transformer for connection to constant voltage lines (70/100 V). The high quality of its transducers (arranged in a coaxial configuration) guarantees faithful and precise musical reproduction throughout the audio spectrum and allows to reach truly remarkable sound pressure levels for such compact products. The connection is simple and safe thanks to the removable four-pole screw terminals. The front grille is fixed by magnets and can therefore be easily removed to access the power rotary switch.
FeaturesRCF PMR-60T
RCF PMR-60T
Overview80W RMS power handling 114 dB max SPL 70 ÷ 20000 Hz frequency range 130° constant directivity conical coverage angle 6.5" high power woofer 1" neodymium dome tweeter Self extinguishing plastic body Steel magnetic front grille 4 pole EUROBLOCK connector (audio input and parallel link output) 5 m hanging cable included Specifications
Acoustical specifications
Frequency Response (-10dB) : 70 Hz ÷ 20000 Hz
Max SPL @ 1m : 114 dB
Coverage angle : 130°
System Sensitivity : 89 dB
Power section
Amplification : Full Range
Nominal Impedance : 8 ohm
Power Handling : 80 W RMS
Peak Power Handling : 320 W PEAK
Crossover Frequencies : 2500 Hz
Recommended Amplifiers : DMA 504, DMA 162, DMA 82, DMA 162P
Transducers
Dome Tweeter : 1 x 1.0'' neo, 1.0'' v.c
Woofer : 1 x 6.5'', 1.2'' v.c
Input/Output section
Input connectors : Euroblock
Output connectors : Euroblock
Constant Voltage Transformer : 70/100 V
Power selection 1 : 80 W - 125 ohm
Power selection 2 : 40 W - 250 ohm
Power selection 3 : 20 W - 500 ohm
Power selection 4 : 10 W - 1000 ohm
Power selection 5 : 5 W - 2000 ohm
Standard compliance
Safety agency : CE compliant
Physical specifications
Cabinet/Case Material : ABS
Grille : Steel
Color : White - RAL 9003, Black - RAL 9005
Size / Weight
Height : 236 mm / 9.29 inches
Diameter : 300 mm / 11.81 inches
Weight : 5.1 kg / 11.24 lbs
Shipping information
Package Height : 340 mm / 13.39 inches
Package Width : 362 mm / 14.25 inches
Package Depth : 362 mm / 14.25 inches
Package Weight : 6.5 kg / 14.33 lbs
