Overview4 x 2" compression drivers. Rated power (100 V): 200 W. 110 dB sensitivity. Colour white RAL 9003. Fiberglass body. In/out ceramic terminal block. Thermal fuse protection. Protection grade IP65. Specifications

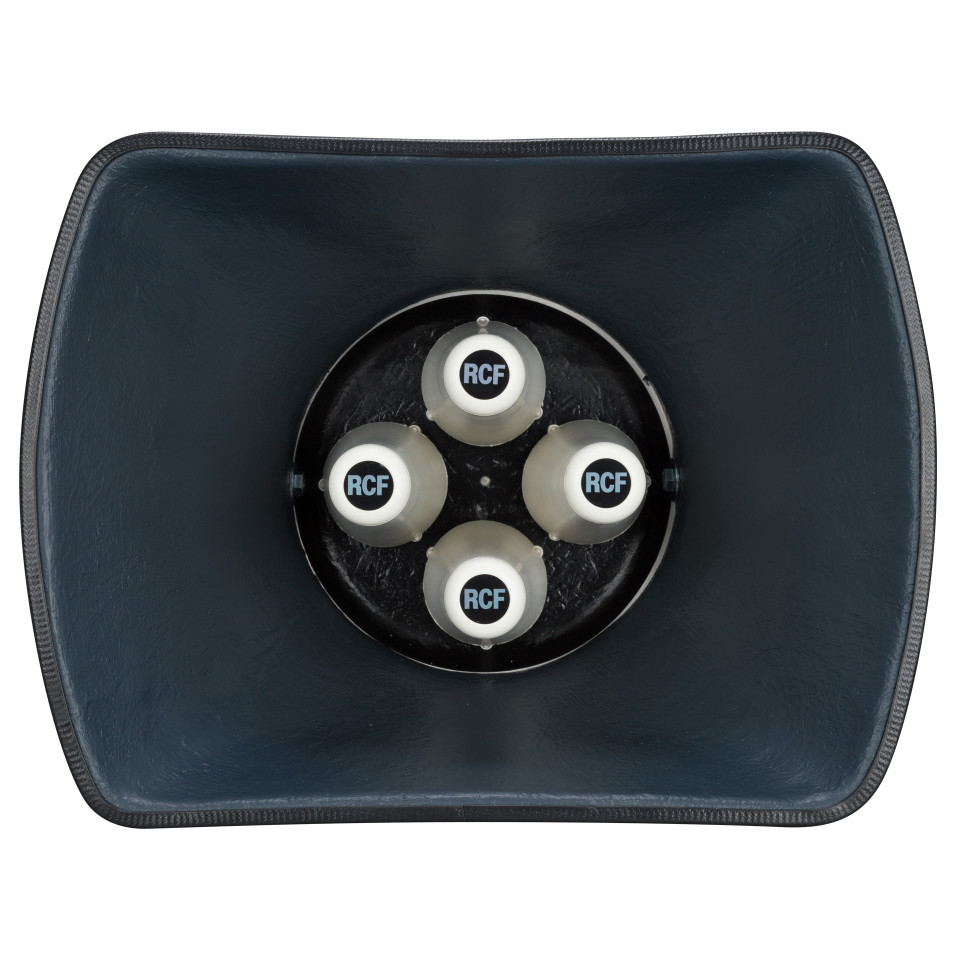

HD 6045EN is a fiberglass horn designed to withstand the most adverse weather conditions, offering high sound reproduction quality and sound pressure levels. A high level of efficiency and sound pressure can be obtained thanks to the use of 4 dynamic compression driver units. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.
Features Acoustical specifications
Frequency Response (-10dB) : 200 Hz ÷ 10000 Hz
Max SPL @ 1m : 133 dB
Max SPL @ 4m : 114 dB
Horizontal coverage angle : 60°
Vertical coverage angle : 50°
System Sensitivity : 110 dB
System Sensitivity 1W @ 4m : 91 dB
Power section
Power Handling : 200 W
Peak Power Handling : 800 W PEAK
Protections : Thermal fuse
Recommended Amplifiers : DXT 3000, DXT 4000, DXT 7000
Transducers
Compression Driver : 4 x 2.0''
Input/Output section
Input connectors : Ceramic screw terminals
Output connectors : Ceramic screw terminals
Constant Voltage Transformer : 100 V
Power selection 1 : 200 W - 50 ohm
Standard compliance
IP protection grade : IP 65
Safety agency : CE compliant
EN54-24 certified : Yes
CPR number : 0068-CPR-030/2015
Physical specifications
Cabinet/Case Material : Fiberglass
Color : White - RAL 9003
Size / Weight
Height : 475 mm / 18.7 inches
Width : 620 mm / 24.41 inches
Depth : 564 mm / 22.2 inches
Weight : 21.4 kg / 47.18 lbs
Shipping information
Package Height : 615 mm / 24.21 inches
Package Width : 645 mm / 25.39 inches
Package Depth : 495 mm / 19.49 inches
Package Weight : 23.6 kg / 52.03 lbs
