Overview

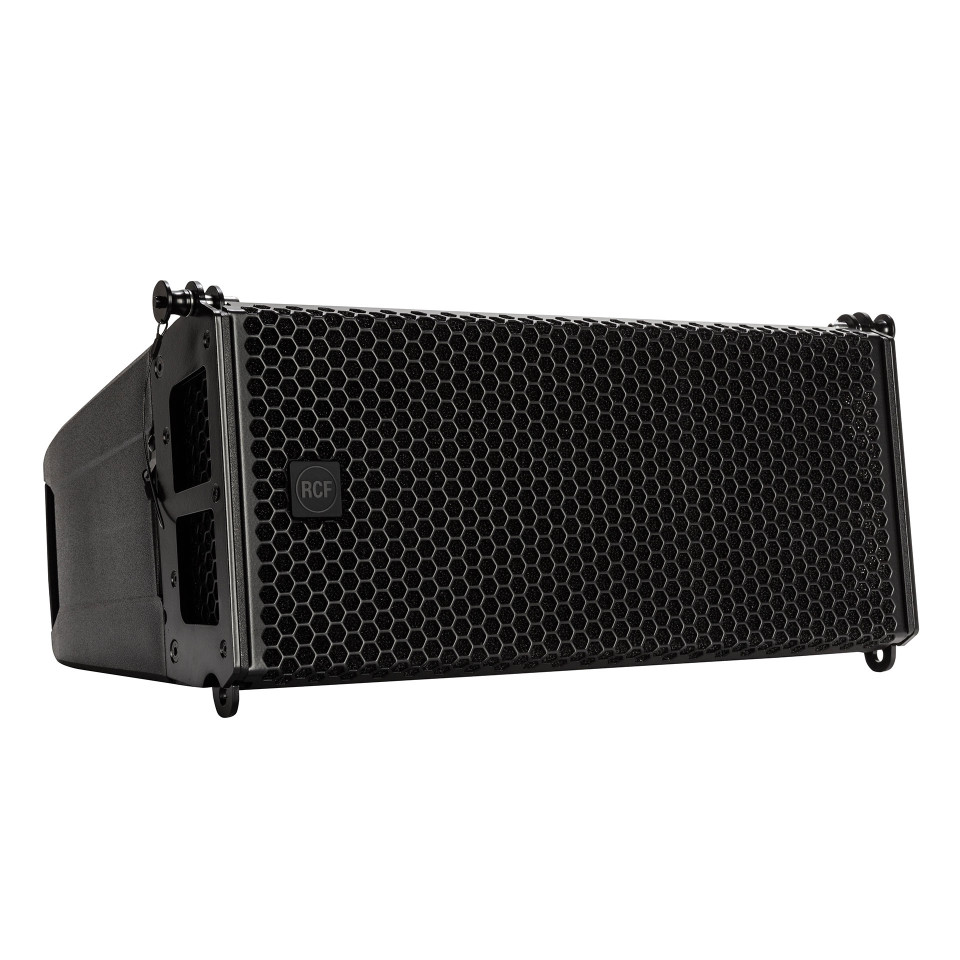

The RCF HL 6 is an ultra-compact passive two-way full-range system for small and medium-sized spaces. The 1.75" neodymium compression driver with a constant-directivity waveguide design generates a horizontal constant-directivity coverage of 100 degrees over the entire vocal range with remarkable clarity. Two high-power 6" woofers deliver extended low-end up to 131 dB SPL for a wide range of applications, both alone, or in line-array configuration.

Features

• 1000W Peak Power Handling
• 131 dB Max SPL
• 65 ÷ 20000 Hz Frequency Range
• 100° x 10° Coverage Angles
• 1.75” Neodymium Compression Driver
• 2 x 6” High-Powered Neodymium Woofers
• Constant Directivity Waveguide
• Extremely Low Weight

Specifications

Acoustical

• Frequency Response (-10dB) 65 Hz ÷ 20000 Hz
• Max SPL @ 1m 131 dB
• Horizontal coverage angle 100°
• Vertical coverage angle 10°
• Directivity index Q 16

Power section

• Amplification Full Range
• Nominal Impedance 16 ohm
• Power Handling 250 W
• Peak Power Handling 1000 W PEAK
• Protections Dynamic Active Mosfet
• Crossover Frequencies 900 Hz
• Recommended Amplifiers XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K

Transducers

• Compression Driver 1 x 1.0'' neo, 1.75'' v.c
• Woofer 2 x 6.0'' neo, 2.0'' v.c

Input/Output section

• Input connectors Speakon
• Output connectors Speakon

Standard compliance

• Safety agency CE compliant

Physical

• Cabinet/Case Material PP Composite
• Hardware Integrated array mechanics
• Handles 2 on the rear panel
• Grille Steel
• Color Black - RAL 9005

Size

• Height 237 mm / 9.33 inches
• Width 470 mm / 18.5 inches
• Depth 377 mm / 14.84 inches
• Weight 11.8 kg / 26.01 lbs
