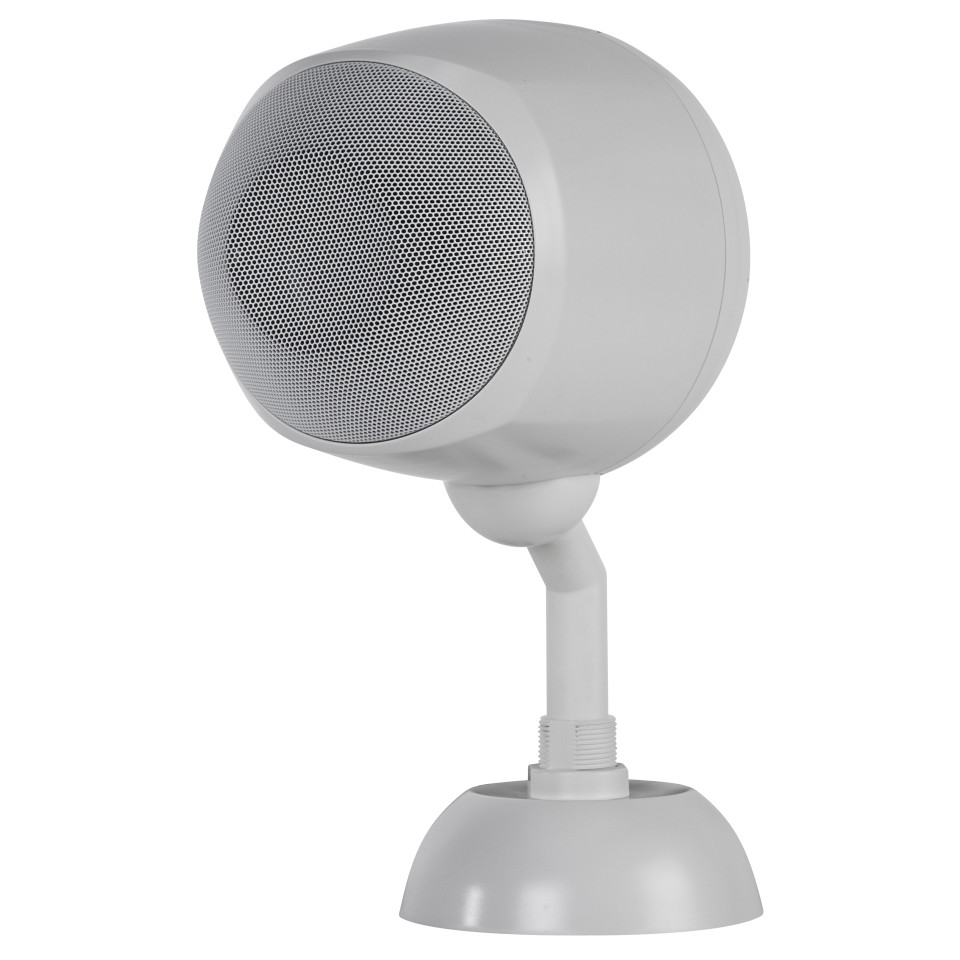

DP 5EN is a 20 W weatherproof sound projector in compliance with EN 54-24 regulations. It is suitable for all those installations where high intelligibility for alarm messages broadcasting and great sound reproduction quality are required; moreover, thanks to its IP 65 protection grade, it can be installed both indoor and outdoor. A modern and endearing design makes it the perfect product for environments where projectors are intended also as architectural elements and contribute to improve global aesthetics.
Features- 5'' full range speaker for alarm voice messages broadcasting and high quality background music
- ABS cabinet with steel mesh grille
- It can be installed both indoors and outdoors (IP 65 protection grade)
- Equipped with transformer for 100 V (/ 70 V) constant voltage lines
- Internal power setting
- Ceramic screw terminal for connection
- Internal thermal fuse
General
- FREQUENCY RESPONSE (-10DB): 80 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 101 dB
- MAX SPL @ 4M: 89 dB
- COVERAGE ANGLE: 210°
- SYSTEM SENSITIVITY: 88 dB
- SYSTEM SENSITIVITY 1W @ 4M: 76 dB
- POWER HANDLING: 20 W RMS
- PEAK POWER HANDLING: 80 W PEAK
- RECOMMENDED AMPLIFIER: 40 W
- PROTECTIONS: Thermal fuse
- FULLRANGE: 5.0''
- NPUT CONNECTORS: Ceramic screw terminals
- OUTPUT CONNECTORS:Ceramic screw terminals
- CONSTANT VOLTAGE TRANSFORMER: 100 V
- POWER SELECTION 1 (100 V): 20 W - 500 ohm
- POWER SELECTION 2 (100 V): 10 W - 1000 ohm
- POWER SELECTION 3 (100 V): 5 W - 2000 ohm
- POWER SELECTION 4 (100 V): 2.5 W - 4000 ohm
- IP PROTECTION GRADE: IP 65
- EN54-24 CERTIFIED: Yes
- CE MARKING: Yes
- CPR NUMBER: 0068-CPR-058/2014
- CABINET/CASE MATERIAL: ABS
- HARDWARE: Wall mount metal plate
- GRILLE: Steel
- COLOR: White - RAL 9016
Physical & Dimensions
- Height: 183mm
- Width: 176mm
- Depth: 261mm
- Weight: 2.61kg
