Overview2 x 5" fullrange transducers. Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W. 86 dB sensitivity. Colour white RAL 9016. Flameproof ABS body, steel grille. In/out ceramic terminal block. Thermal fuse protection. Protection grade IP65. Specifications

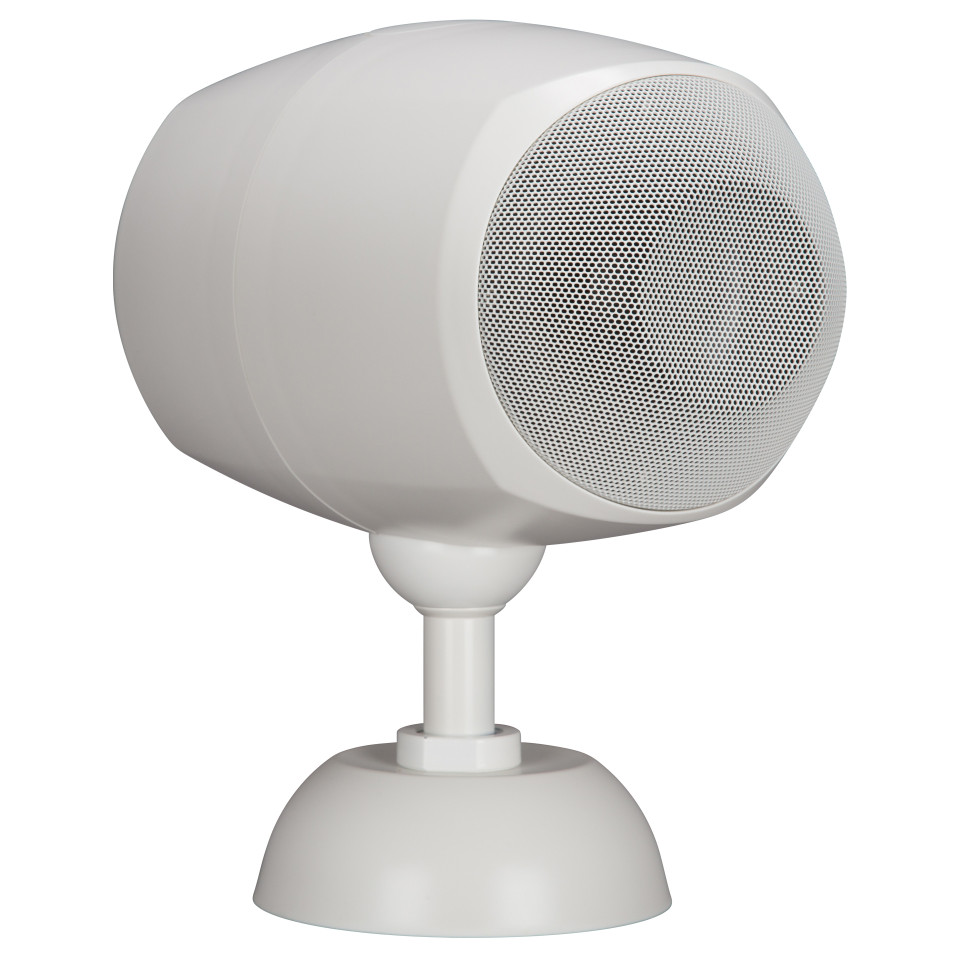

BD 5EN is a weatherproof bidirectional sound projector suitable for all those installations where high intelligibility for alarm messages broadcasting and great sound reproduction quality are required. Thanks to its IP65 protection grade, it can be installed both indoor and outdoor. Moreover, a modern and endearing design makes it the perfect product for environments where projectors are intended also as architectural elements and contribute to improve global aesthetics.
Features Acoustical specifications
Frequency Response (-10dB) : 150 Hz ÷ 18000 Hz
Max SPL @ 1m : 99 dB
Max SPL @ 4m : 87 dB
Coverage angle : 210°
System Sensitivity : 86 dB
System Sensitivity 1W @ 4m : 74 dB
Power section
Amplification : Full Range
Power Handling : 20 W
Peak Power Handling : 80 W PEAK
Protections : Thermal fuse
Recommended Amplifiers : DMA 504, DMA 162, DMA 162P, DXT 3000, DXT 4000, DXT 7000
Transducers
Fullrange : 2 x 5.0''
Input/Output section
Input connectors : Ceramic screw terminals
Output connectors : Ceramic screw terminals
Constant Voltage Transformer : 100 V
Power selection 1 : 20 W - 500 ohm
Power selection 2 : 10 W - 1000 ohm
Power selection 3 : 5 W - 2000 ohm
Power selection 4 : 2.5 W - 4000 ohm
Standard compliance
IP protection grade : IP 65
Safety agency : CE compliant
EN54-24 certified : Yes
CPR number : 0068-CPR-058/2014
Physical specifications
Cabinet/Case Material : ABS
Hardware : Wall mount metal plate
Grille : Steel
Color : White - RAL 9016
Size / Weight
Height : 183 mm / 7.2 inches
Width : 332 mm / 13.07 inches
Depth : 176 mm / 6.93 inches
Weight : 3.59 kg / 7.91 lbs
Shipping information
Package Height : 230 mm / 9.06 inches
Package Width : 400 mm / 15.75 inches
Package Depth : 380 mm / 14.96 inches
Package Weight : 4.63 kg / 10.21 lbs
