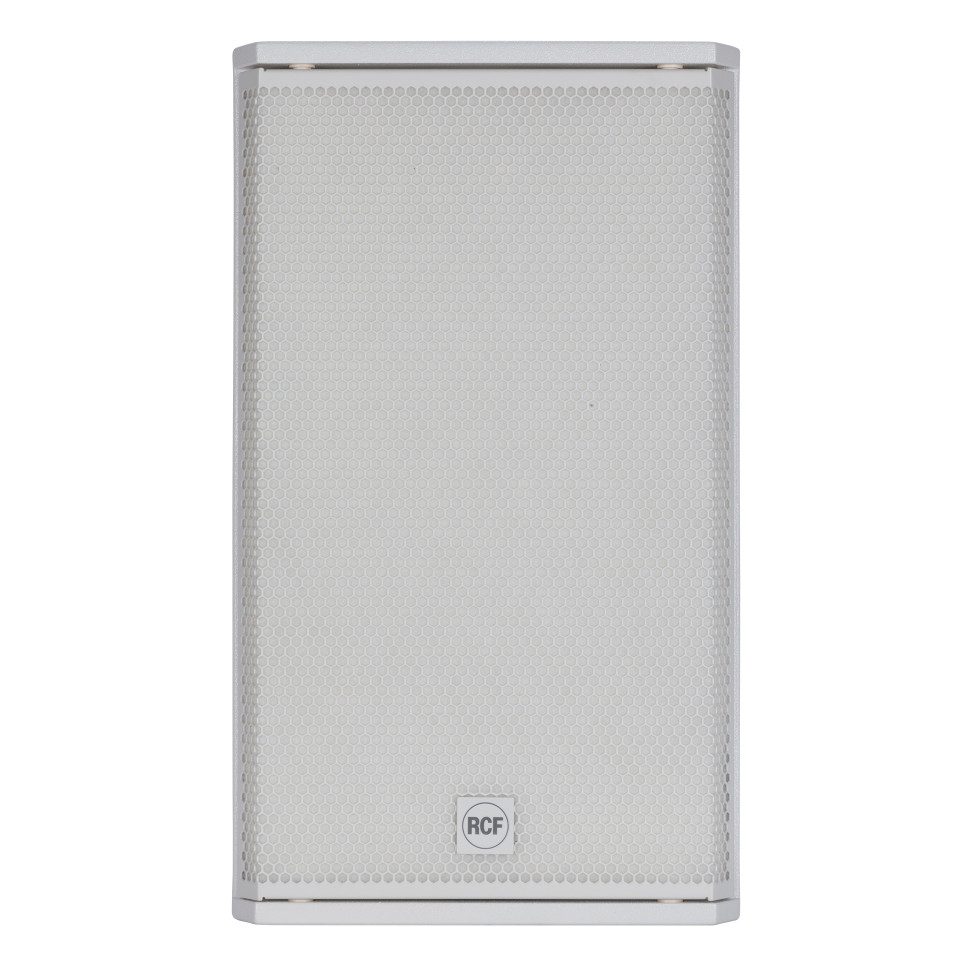

RCF COMPACT M 10-W

RCF

RCF COMPACT M 10-W

Passive 1200W 10" 2-Way Compact Speaker (White)

SKU: RCF-COMPACT M 10-W

MSRP: $1,139.00

MAP: $749.00

UPC:

Current Stock:

Quantity:

Description

Overview

COMPACT M 10 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 10 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 10 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 10 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 10 on wall or ceiling installations.

Features

300 W RMS power handling
128 dB max SPL
60 ÷ 20000 Hz frequency range
90° x 70° constant directivity coverage angle
1 x 10" high power woofer
1 x 1.4" voice coil compression driver
High quality plywood cabinet
Steel front grille with clothing
Installation points available on rear, top and bottom panels
4 pole EUROBLOCK connector (audio input and parallel link output)

Multipurpose sound

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.

Engage your customers

Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience enjoying an immersive musical experience.

Smooth installation

Compact M speakers sticks to the functionality and style of the Italian design, always in harmony with any type of interiors. With a complete range of solid wood cabinets, multiple rigging points and accessories, installation time is minimal. The EUROBLOCK connection panel can be replaced with female Neutrik SpeakON connection panel in seconds.

Specifications

Acoustical specifications

Frequency Response (-10dB): 60 Hz ÷ 20000 Hz

Max SPL @ 1: 128 dB

Horizontal coverage angle: 90°

Vertical coverage angle: 70°

Directivity index Q: 9

System Sensitivity: 98 dB

Power section

Amplification: Full Range

Nominal Impedance: 8 ohm

Power Handling: 300 W

Peak Power Handling:1200 W PEAK

Protections: Dynamic active mosfet

Crossover Frequencies: 1800 Hz

Recommended Amplifiers:XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504

Transducers

Compression Driver: 1 x 1.0'', 1.4'' v.c

Woofer: 1 x 10'', 2.5'' v.c

Physical specifications Cabinet/Case Material: Plywood Hardware: 8 x M8, 8 x M10 Grille: Steel with clothing Color: Black - RAL 9005, White - RAL 9003
