Overview

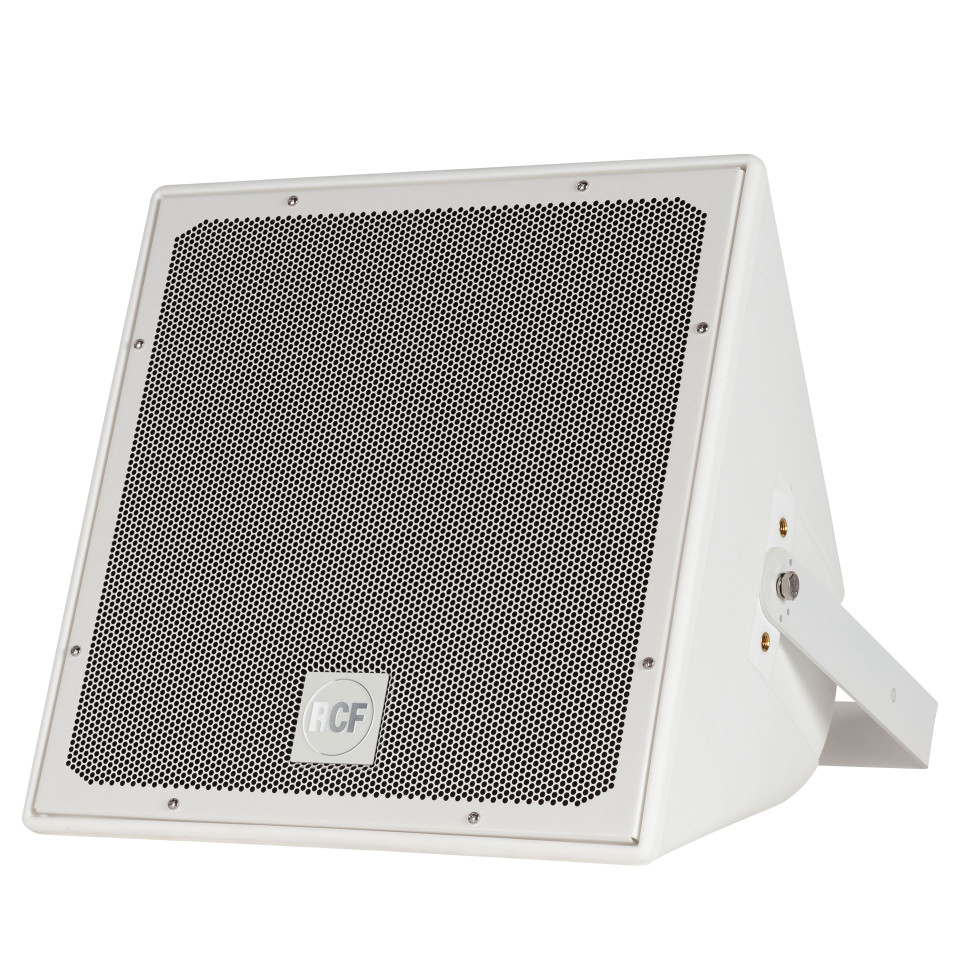

The P 6215 is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for very high output and long-throw applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” neodymium woofer, the high-frequency section combines a 1.3” neodymium RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. Internal circuit provides low crossover frequency for accurate vocal intelligibility and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and one durable and corrosion-resistant 316P stainless steel U-Bracket with f spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.

Features

• 600 W RMS power handling
• 134 dB max SPL
• 75 Hz ÷ 20000 Hz frequency range
• 15" neodymium woofer, 3.0" v.c.
• 2.5" v.c. neodymium compression driver
• 60° x 60° constant directivity
• Weatherproof IP55 cabinet with UV protection
• Aluminum grille
• AISI 316L stainless steel bracket
• 12 suspension points (M10)

Specifications

Acoustical

• Frequency Response (-10dB): 75 Hz ÷ 20000 Hz
• Max SPL @ 1m: 134 dB
• Horizontal coverage angle: 60°
• Vertical coverage angle: 60°
• Directivity index Q: 13
• System Sensitivity: 100 dB

Power section

• Nominal Impedance (ohm): 8 ohm
• Power Handling: 600 W RMS
• Peak Power Handling: 2400 W PEAK
• Recommended Amplifier: 1200 W
• Protections: Dynamic active mosfet
• Crossover Frequencies: 1100 Hz

Transducers

• Compression Driver: Coaxial 1.3'' neo, 2.5'' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 90 W AES, 180 W PEAK
• Sensitivity: 108 dB, 1W @ 1m
• Woofer: Coaxial 15'' neo, 3.0'' v.c
• Nominal Impedance (ohm): 8 ohm
• Input Power Rating: 450 W AES, 900 W PEAK
• Sensitivity: 101 dB, 1W @ 1m

Input/Output section

• Input connectors: Neoprene Cable

Standard compliance

• IP protection grade: IP 55
• CE marking: Yes

Physical

• Cabinet/Case Material: PE Low Density
• Hardware: 12 x M10 + U-Bracket and Pair of spacers
• Grille: Aluminum with waterproof clothing
• Color: Grey

Size

• Height: 463 mm / 18.23 inches
• Width: 463 mm / 18.23 inches
• Depth: 433 mm / 17.05 inches
• Weight: 17 kg / 37.48 lbs
