Overview

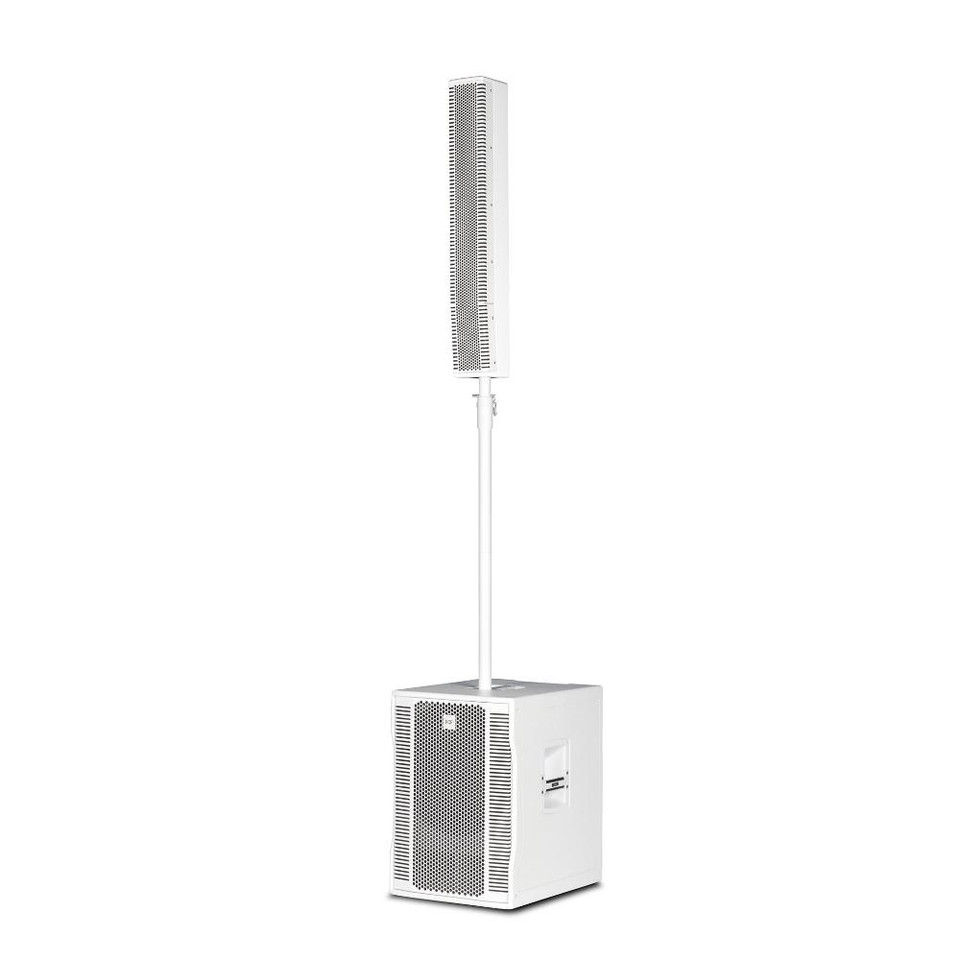

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

Features

• 1400 Watt
• 130 dB max SPL
• 40 Hz 20 kHz frequency response
• 15" Woofer
• 8 x 4" neodymium full-range woofer
• 90° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

Specifications

Acoustical specifications

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 130 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 30°

Transducers

• Fullrange: 8 x 4.0'', 1.0'' v.c
• Woofer: 15'', 3.0'' v.c

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor section

• Crossover Frequencies: 180 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, EQ

Power section

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE

Standard compliance

• Safety agency: CE compliant

Physical specifications

• Color: Black, White - RAL 9003

Size

• Height: 2200 mm / 86.61 inches
• Width: 410 mm / 16.14 inches
• Depth: 560 mm / 22.05 inches
• Weight: 36.4 kg / 80.25 lbs
