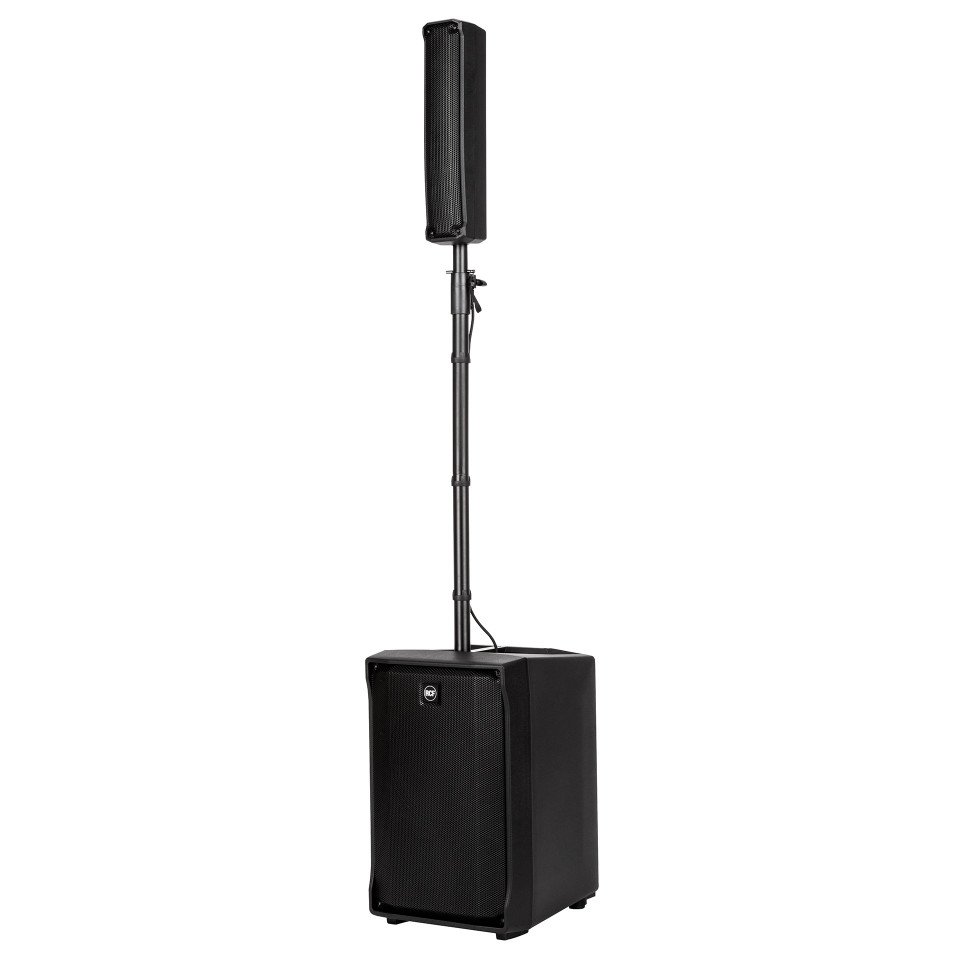

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

• 128 dB Max SPL
• 1400 Watt 2-way peak power
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• Perfect for Live Sound, Clubs and DJs, Corporate events, AV presentations

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2.0'', 1.0'' v.c
• Woofer:12'', 2.5'' v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XRL, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Amplifier Specifications

• Total power: 1400 W PEAK
  • High frequencies: 400 W PEAK
  • Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
  • High frequencies: 200 W RMS
  • Low frequencies: 500 W RMS
• Connections: Convection

Cabinet

• Cabinet Material: PP Composite
• Handles: 1 Top
• Pole Mount/Cap: Yes
• Grille: steel
• Colour: Black

Physical & Dimensions

• Height: 623mm
• Width: 400mm
• Depth: 460mm
• Weight: 23.8kg
