Overview

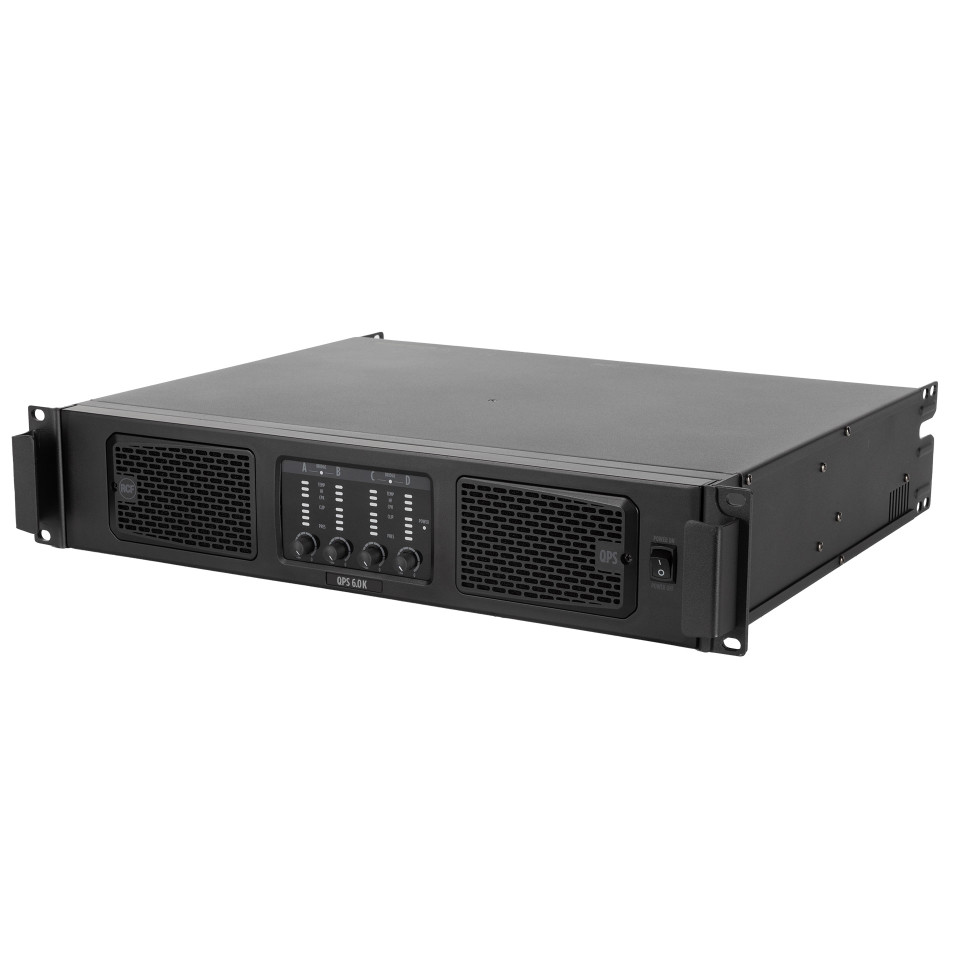

QPS 6.0K is a 4-channel power amplifier that delivers up to 4 x 1,500 W @ 2 Ohms. It features independent gain control, signal/clip and faults indicators, channels A and C XLR output link, parallel/bridge modes, and speakON output connectors. Moreover, it is protected against shorts and open circuits. Thanks to its high-efficiency heat sinks and variable speed fans, QPS 6.0K can withstand the most extreme heat conditions ensuring reliability.
Features- 4 x 1,500 W class HD power amplifier
- Fast response and low distortion
- Stereo, parallel and bridge modes
- Comprehensive protection circuits
- Variable speed cooling
- Signal, clip, fault led indicators
- XLR inputs and speakON outputs
- Limiter on each channel
- 20 ÷ 20000 Hz frequency range
Amplifier specifications
- Amplifier Class: HD
- Output power:
- 4 x 1500 W @ 2 ohm
- 4 x 1300 W @ 4 ohm
- 4 x 700 W @ 8 ohm
- 2 x 3000 W @ 4 ohm (bridge)
- 2 x 2600 W @ 8 ohm (bridge)
- Frequency Response (-3dB): 20 Hz ÷ 20000 Hz
- SNR Analog inputs (“A” weighted): >110 dB
- Crosstalk: <70 dB
- Distortion (THD+N) @ 1 kHz nominal power: <0.05 %
Input section
- Total number of inputs: 4
- Balanced: 4
- Mono: 4
- Line inputs: 4
- Line connectors: XLR
Output section
- Signal output number: 2
- Signal output connectors: XLR
- Power output connectors: Speakon
Configuration and control
- Configuration: DIP switch, Front panel
Protections
- Cooling: Forced
- Short circuit: Yes
- Thermal: Yes
- DC: Yes
- Fuses: Yes
- VHF (Very High Frequencies): Yes
Power requirement
- Operating voltage: 220-240/115 V~ 50/60Hz
- Power consumption: 1400 W
Standard compliance
- Safety agency: CE compliant
Physical & Dimensions
- Cabinet/Case Material: Metal
- Handles: Metal handles included in the front panel
- Colour: Black - RAL 9005
- Rack mounting: 19", 2U
- Height: 88 mm / 3.46 inches
- Width: 483 mm / 19.02 inches
- Depth: 399 mm / 15.71 inches
- Weight: 13.7 kg / 30.2 lbs
