Overview

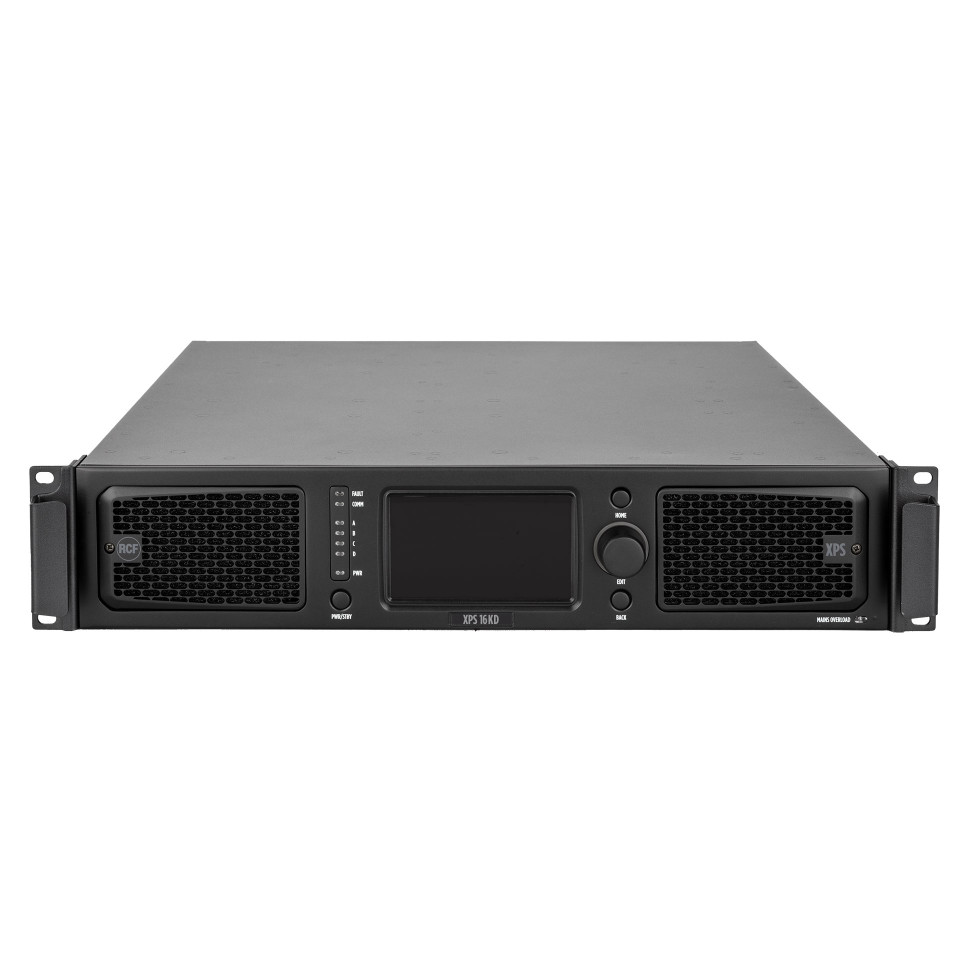

XPS 16KD is a four-channel power amplifier with advanced processing and advanced routing with Dante, digital and analog I/O for both touring and install use. With 4x4000 W Class D continuous power at 2.7 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing, XPS 16K packs extreme power density in a 2U chassis. Designed for both touring and installed sound systems, XPS is intended for use with high-performance speakers and provides ready-to-use configurations and presets. It can also be used in linear mode with advanced tuning capabilities. Each output features: 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal limiter. XPS delivers rider-friendly premium sound with full RDNet remote management, large touch interface onboard, exceptional signal/noise ratio, ultra-low distortion, and extreme dynamic range.

Features

• 16000 W Total Continuous Power
• 40-bit Floating-point DSP and 32-bit routing up to 96 kHz
• Dante Audio Network
• FiRPHASE, Bass Motion Control, Bass Shaper
• RDNet Networked Management
• Touch 4.3" Color TFT Interface
• Full On-board Processing with Delay, EQ, Comp/Limiter
• On-board Speaker Presets Library
• Class-D Modules with SMPS and Advanced PFC

Installed Audio

Quality Power for Fixed Sound Systems

XPS Series is the best choice for high-power installation systems such as auditoriums, theme parks, and performance venues. Whether perfectly integrating with RCF passive speakers with ready-to-use presets, XPS provides installation-specific features, including enhanced system status monitoring, GPIOs for extended capabilities, flexible routing, and perfect integration with our proprietary RDNet management platform.

Tour Sound

Thinking Out of the Box, and Into The Rack

XPS shines when used in touring applications and live events from medium to very large capacity. Paired with RCF high-powered passive speakers, XPS gives a new perspective in sound system management. The system designer now has complete flexibility in choosing powered, or externally amplified speakers, balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management, via RDNet.

Power to Change Everything

Four-Channel Modular Amplifier

XPS 16K provides extreme power density with 4 x 4000 W continuous power outputs in 2 RU space for both touring and installed sound systems. The unit features 4 analog and digital AES/EBU inputs/outputs, a Dante Network ready design, and complete signal processing, tuning, and routing capability all at 96 kHz. Redundancy and full scalability are granted by the advanced and modular design of the circuitry. A complete set of RCF speaker presets is available, with powerful signal processing for complete system tuning.

CONTINUOUS POWER OUTPUTS

New Attitude in Sound Management

XPS 16K supports the RCF philosophy with a power-agnostic approach, where the sound system engineer has complete freedom in choosing powered, or externally amplified, modules for their system. XPS 16K offers a new solution for balancing portability, weight, ease of installation, cabling, fast setup speed, and complete remote management of each connected device, via RDNet.

Power You Can Trust

RCF’s effort in assisting both installers and sound providers with the best audio technology and clear, powerful sound is at the core of the company’s beliefs. Since 1949, providing both power amplifiers and transducers to the professional market, the RCF experience marks a new milestone with XPS 16K.

Flexible Signal Routing

The comprehensive digital architecture of the amplifier features multiple inputs and outputs that can be routed easily to suit any project. Analog inputs 3 and 4 can be switched to 4 AES/EBU digital input ports. Each input can be routed to any of the four digital and power outputs. Dante networking delivers completely lossless audio and near infinite signal routing flexibility on a standard IP network.

Specifications

AMPLIFIER SPECIFICATIONS

• Amplifier Class: D
• Output power (EIAJ 8:32 all channels driven):
  • (4) 4000 W @ 2.7 ohm
  • (4) 2600 W @ 4 ohm
  • (4) 1400 W @ 8 ohm
• Frequency Response (-3dB): 20 Hz ÷ 23000 Hz
• SNR Analog inputs (unweighted): >111 dB
• SNR Digital inputs (unweighted): >115 dB
• Crosstalk:
• THD+N (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm):
• Gain (linear mode @ 0 dB): 32 dB
• Damping factor (@ 8 ohm, 20 Hz ÷ 1500 Hz): >95
• Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N): 200 ms

INPUT SECTION

• Total number of inputs: 16
• Line inputs: 4
• Line connectors: XLR
• Digital inputs: 12
• Digital connectors: Ethercon, XLR
• Digital type: AES/EBU, DANTE
• General Purpose Inputs (GPI): 2
• Programmable GPI: Yes
• Photo-coupled GPI: 2

OUTPUT SECTION

• Signal output number: 4
• Signal output connectors: XLR
• Power output connectors: Speakon
• General Purpose Outputs (GPO): 3
• Programmable GPO: Yes

PROCESSING

• DSP:
  • 2 SHARC, 40-bit floating point, 96 kHz
  • 2 ADAU 1442, 32-bit fixed point, 96 kHz
• EQ Filters: Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)
• Advanced algorithms: FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
• Compressors: RMS limiter | dynamic compressor | power limiter | thermal compressor
• Delay: 0 ÷ 4000 ms (each channel)
• Tone controls: Yes
• High-pass filter: 10 Hz ÷ 1000 Hz
• Crossover: 2500 ÷ 3500 Hz
• Automatic gain control: Yes

CONFIGURATION AND CONTROL

• Configuration: Front panel touch screen, PC Software
• Network: Gigabit ethernet
• RCF speakers presets: Yes
• Priority: Yes
• Protocols for system integration: Proprietary OSC based protocol, Q-SYS
• RDNet: Yes

PROTECTIONS

• Cooling: Forced
• Short circuit: Yes
• Thermal: Yes
• DC: Yes
• Fuses: Yes
• VHF (Very High Frequencies): Yes

OPERATING CONDITIONS

• Temperature range - Continuous operation: -5°C ÷ +40°C / +23°F ÷ +104°F
• Temperature range - Reduced output power: -5°C to +50°C / +23°F to +122°F
• Fan noise idle < (dBA):
• Fan noise max < (dBA):

POWER REQUIREMENT

• Operating voltage: 90-240 V~ 50/60Hz
• Nominal current AC @ 100-120 V: 30 A
• Nominal current AC @ 220-240 V: 16 A
• Stand by power consumption: 20 W
• Idle power consumption: 90 W
• Power consumption (MAX): 5800 W
• Main fuse: Internal
• Fuses Model: F 315 mA H 100 V

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Metal
• Handles: 2 metal handles for rack mount
• Color: Black - RAL 9005
• Rack mounting: 19", 2U

Size / Weight

• Height: 88.7 mm / 3.49 inches
• Width: 482 mm / 18.98 inches
• Depth: 482.4 mm / 18.99 inches
• Weight: 15 kg / 33.07 lbs

SHIPPING INFORMATION

• Package Height: 150 mm / 5.91 inches
• Package Width: 580 mm / 22.83 inches
• Package Depth: 600 mm / 23.62 inches
• Package Weight: 18 kg / 39.68 lbs
