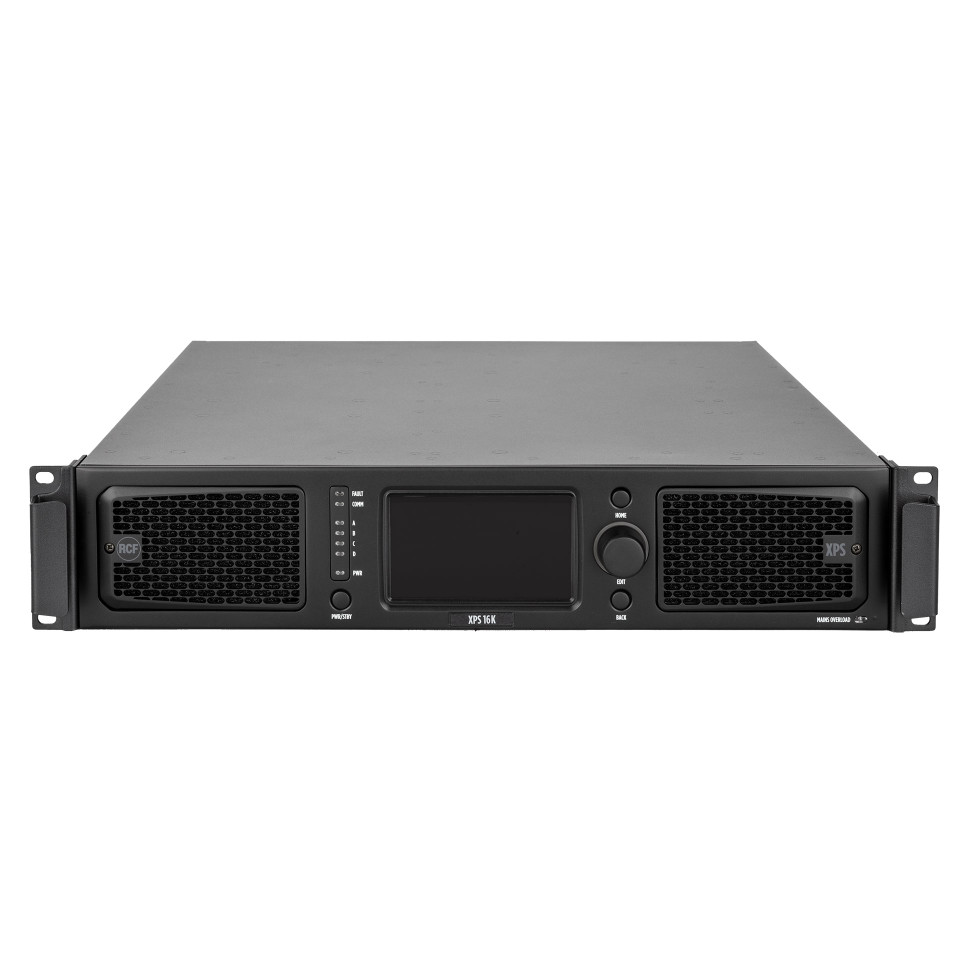

Class D Power Amplifier with DSP, RDNet Management (4 X 4,000 W @ 2.7 Ω)

SKU: RCF-XPS 16K
MSRP: $17,999.00

Overview

The XPS 16K power amplifier boasts advanced processing and analog/digital routing options, making it suitable for both touring and install use. Its compact 2U chassis packs a punch with 4x4000 W Class D continuous power at 2.7 ohms, 40-bit floating-point processing at 96 kHz, and 32-bit internal routing. Whether you're setting up a touring sound system or an installed one, the XPS 16K is the perfect choice for high-performance speakers, with its readily available configurations and presets. Additionally, it offers advanced tuning capabilities for linear mode use.

Each output of the XPS 16K features a suite of professional-grade tools, including 4000 ms output delay (1372 m / 4501 ft), EQ Filters, Crossovers, FIR Filters, Multiband Compressor, RMS Limiter, and Thermal Limiter. It's designed to deliver premium sound quality with full RDNet remote management, a large onboard touch interface, exceptional signal/noise ratio, ultra-low distortion, and an extreme dynamic range. The XPS 16K's rider-friendly features make it a top choice for sound professionals who demand the best in their audio equipment.

Features

  • 16000 W Total Continuous Power
  • 40-bit Floating-point Processing, up to 96 kHz
  • 32-bit Fixed-point Internal Routing
  • FiRPHASE, Bass Motion Control, Bass Shaper
  • RDNet Networked Management
  • Touch 4.3" Color TFT Interface
  • Full On-board Processing with Delay, EQ, Comp/Limiter
  • RCF Speaker Presets Library

Specifications

AMPLIFIER SPECIFICATIONS

  • Amplifier Class: D
  • Output power (EIAJ 8:32 all channels driven):
    • (4) 4000 W @ 2.7 ohm
    • (4) 2600 W @ 4 ohm
    • (4) 1400 W @ 8 ohm
  • Frequency Response (-3dB): 20 Hz ÷ 23000 Hz
  • SNR Analog inputs (unweighted): >111 dB
  • SNR Digital inputs (unweighted): >115 dB
  • Crosstalk:
  • THD+N (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm):
  • Gain (linear mode @ 0 dB): 32 dB
  • Damping factor (@ 4 ohm, 20 Hz ÷ 1500 Hz): >95
  • Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N): 200 ms

INPUT SECTION

  • Total number of inputs: 8
  • Line inputs: 4
  • Line connectors: XLR
  • Digital inputs: 4
  • Digital connectors: XLR
  • Digital type: AES/EBU
  • General Purpose Inputs (GPI): 2
  • Programmable GPI: Yes
  • Photo-coupled GPI: 2

OUTPUT SECTION

  • Signal output number: 4
  • Signal output connectors: XLR
  • Power output connectors: Speakon
  • General Purpose Outputs (GPO): 3
  • Programmable GPO: Yes

PROCESSING

  • DSP:
    • 2 SHARC, 40-bit floating point, 96 kHz
    • 2 ADAU 1442, 32-bit fixed point, 96 kHz
  • EQ Filters: Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)
  • Advanced algorithms: FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
  • Compressors: RMS limiter | dynamic compressor | power limiter | thermal compressor
  • Delay: 0 ÷ 4000 ms (each channel)
  • Tone controls: Yes
  • High-pass filter: 10 Hz ÷ 1000 Hz
  • Crossover: 2500 ÷ 3500 Hz
  • Automatic gain control: Yes

CONFIGURATION AND CONTROL

  • Configuration: Front panel touch screen, PC Software
  • Network: Gigabit ethernet
  • RCF speakers presets: Yes
  • Priority: Yes
  • Protocols for system integration: Proprietary OSC based protocol, Q-SYS
  • RDNet: Yes

PROTECTIONS

  • Cooling: Forced
  • Short circuit: Yes
  • Thermal: Yes
  • DC: Yes
  • Fuses: Yes
  • VHF (Very High Frequencies): Yes

OPERATING CONDITIONS

  • Temperature range - Continuous operation: -5°C ÷ +40°C / +23°F ÷ +104°F
  • Temperature range - Reduced output power: -5°C to +50°C / +23°F to +122°F
  • Fan noise idle < (dBA):
  • Fan noise max < (dBA):

POWER REQUIREMENT

  • Operating voltage: 90-240 V~ 50/60 Hz
  • Nominal current AC @ 100-120 V: 30 A
  • Nominal current AC @ 220-240 V: 16 A
  • Stand by power consumption: 20 W
  • Idle power consumption: 90 W
  • Power consumption (MAX): 5800 W
  • Main fuse: Internal

STANDARD COMPLIANCE

  • Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

  • Cabinet/Case Material:Metal
  • Handles: 2 metal handles for rack mount
  • Color: Black - RAL 9005
  • Rack mounting: 19", 2U

SIZE

  • Height: 88.7 mm / 3.49 inches
  • Width: 482 mm / 18.98 inches
  • Depth: 482.4 mm / 18.99 inches
  • Weight: 15 kg / 33.07 lbs

SHIPPING INFORMATION

  • Package Height: 150 mm / 5.91 inches
  • Package Width: 580 mm / 22.83 inches
  • Package Depth: 600 mm / 23.62 inches
  • Package Weight: 18 kg / 39.68 lbs
