Overview

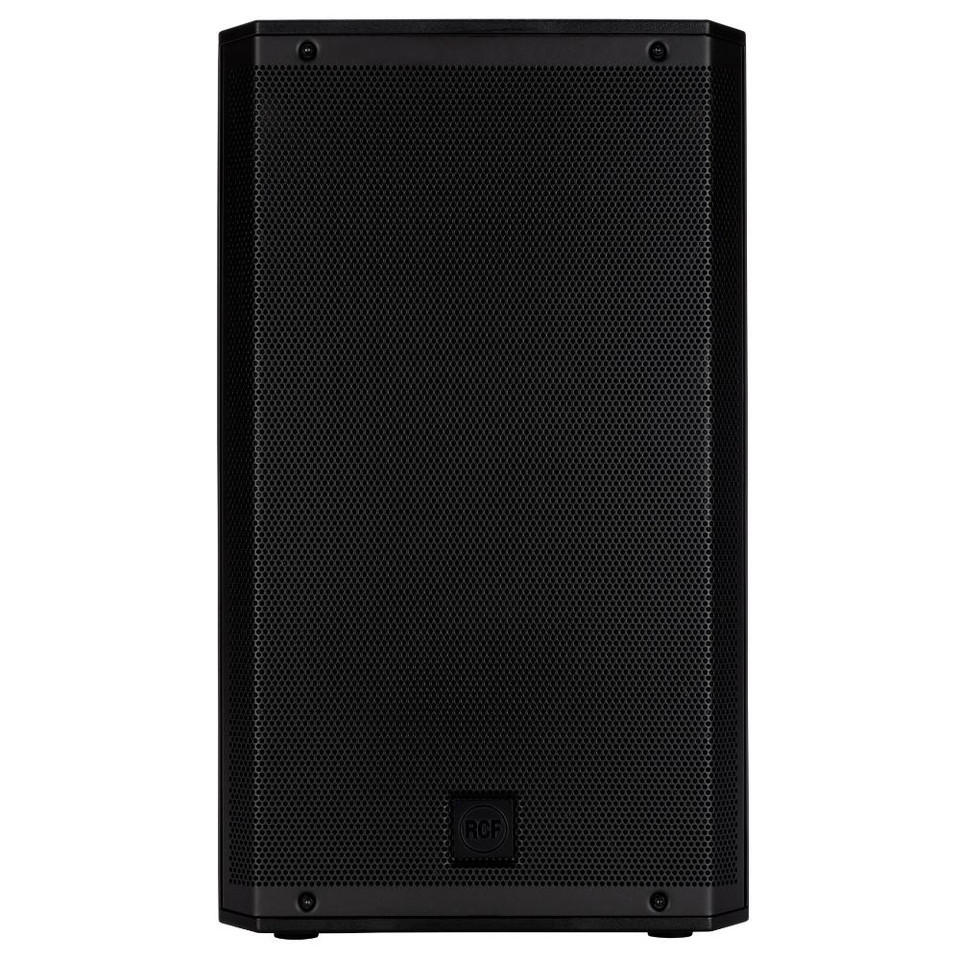

ART 912-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 12" woofer, and two-channel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 130 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

2100 W: the most powerful wireless Bluetooth® speaker

ART 9-AX is the most powerful speaker on the market, also when connected wireless.

The Class 1 Bluetooth® connection can receive 2-channel audio streaming and provides a stereo or dual mono output for pairing with AX-featured RCF speakers. We tested over 100 meters (328 feet) free-field operability. Enjoy the convenience of Bluetooth® connection when you have architectural constraints, pedestrian areas, or inaccessible signal connections.

Power that moves

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. ART 9 is very energy-efficient so there is no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the back of the unit - with no moving parts. Being physically connected with the internal frame, the amplifier is firm and solid within the cabinet. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All ART 9 amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

A Live Experience in your Pocket

Manage ART 9-AX from your Smartphone or Tablet with LiveRemote App

RCF LiveRemote App makes it easy to adjust ART 9-AX mixer, DSP, FX, routing, and Bluetooth® settings. LiveRemote also allows full control of the internal ART 9-AX engine: recall and save presets, set your desired volume levels, adjust EQ, compressors, and FX, customize and tune your sound system and much more. Available for Android and iOS phones and tablets.Features

• Built-in 6-channel Digital Mixer
• Advanced User Interface w/ touch panel and remote control
• 1.75" Compression Driver and 12" Woofery
• Up to 130 dB Sound Pressure Level
• 2100W Class-D Bi-Amplification
• Dual combo preamp with 48V Power and Mini-jack stereo line input
• Bluetooth® stereo audio input, with dual speaker pairing option
• True Resistive Waveguide, FiRPHASE, and Bass Motion Control

Specifications

·         Acoustical

o   Frequency Response: 50 Hz ÷ 20000 Hz

o   Max SPL @ 1m: 130 dB

o   Horizontal coverage angle: 100°

o   Vertical coverage angle: 60°

·         Transducers

o   Compression Driver: 1 x 1.0'', 1.75'' v.c

o   Woofer: 12'', 2.5'' v.c

·         Input/Output section

o   Input signal: bal/unbal

o   Input connectors: Combo XLR/Jack

o   Output connectors: XLR

·         Processor section

o   Crossover Frequencies: 1600Hz

o   Protections: Thermal, RMS

o   Limiter: Soft Limiter

o   Controls: Color touch panel, data entry/volume encoder, dedicated App for iOS and Android.

·         Power section

o   Total Power: 2100 W Peak

o   High frequencies: 700 W Peak

o   Low frequencies: 1400 W Peak

o   Cooling: Convection

o   Connections: VDE

·         Electronic

o   Frequency Response: 20 Hz ÷ 20 Hz

o   THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted

·         Processing

o   Processing Channels: 6

o   Signal Processing: 24 Bit

o   A/D-D/A conversion: 32 Bit @ 48.0 kHz

o   Dynamic range: 110

·         Inputs

o   Mic: 2

o   Remote Controlled Storable Gain: Yes

o   Gain Range: 0 dB ÷ 42 dB

o   Input Noise Level: -114 dBu A-Weighted

o   Mic Inputs Impedance: 6 kohm

o   Low Cut: 20 Hz ÷ 400 Hz

o   Phantom Power +48V: Yes

o   Mono Line: 2

o   Gain Selection: 0 dB ÷ 22 dB

o   Line Input Impedance: 21 kohm

o   A/D Dynamic range: 114 dB

o   Stereo Line: 1

o   Gain Selection: 0 dB ÷ 10 dB

o   Stereo Line Input Impedance (kOhm): 13 kohm

·         Outputs

o   Main MIX: 1
