Overview

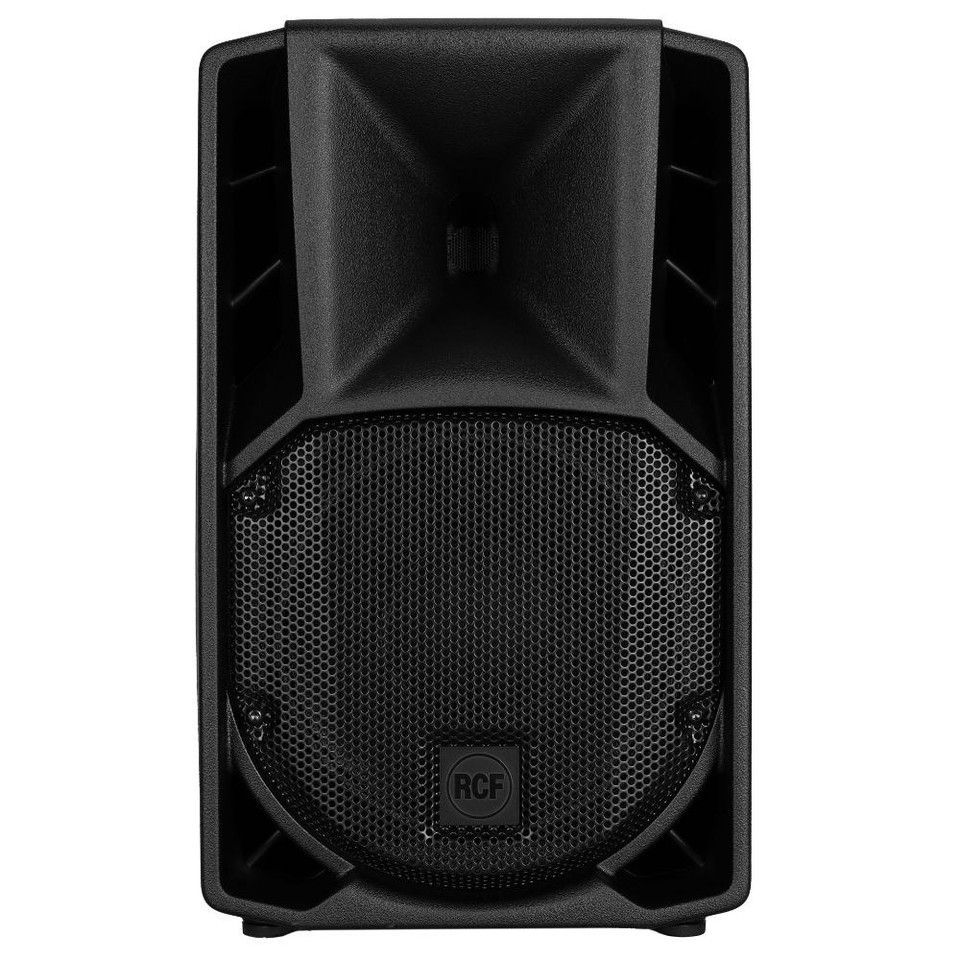

ART 735-A MK5 is a unique product in its category. The 3,0" compression driver offers unique vocal clarity and sound projection. The 15” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
Powerful Class D Amplifiers
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Superior Compression Drivers
The ND840 Compression Driver in pure Titanium with a 3” voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.
Potent Woofer
The low-frequency transducer is a high-power 12" woofer with a 2.5’’ voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.
Features
- 132 dB Max SPL
- 1400 WATT 2-way peak power
- 90° x 60°, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 3,0" Titanium diaphragm Compression Driver.
- 15" Woofer
- FiRPHASE Technology
- XBOOST Low Frequencies Enhancer
Specifications
Acoustical specifications
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 132 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
Transducers
- Compression Driver: 1 x 1.0'' neo, 3.0'' v.c
- Woofer: 15'', 2.5'' v.c
Input/Output section
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Mic. Input Sensitivity: -32 dBu
Processor section
- Crossover Frequencies: 800
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, MIC/Line
Power section
- Total Power: 1400 W Peak
- High frequencies: 400 W Peak
- Low frequencies: 1000 W Peak
- Cooling: Convection
- Connections: VDE
Standard compliance
- Safety agency: CE compliant
Physical specifications
- Hardware: 2 x M10
- Handles: 1 on top, 1 each side
- Pole mount/Cap: Yes
- Color: Black
Size
- Height: 708 mm / 27.87 inches
- Width: 437 mm / 17.2 inches
- Depth: 389 mm / 15.31 inches
- Weight: 21.4 kg / 47.18 lbs
