Overview

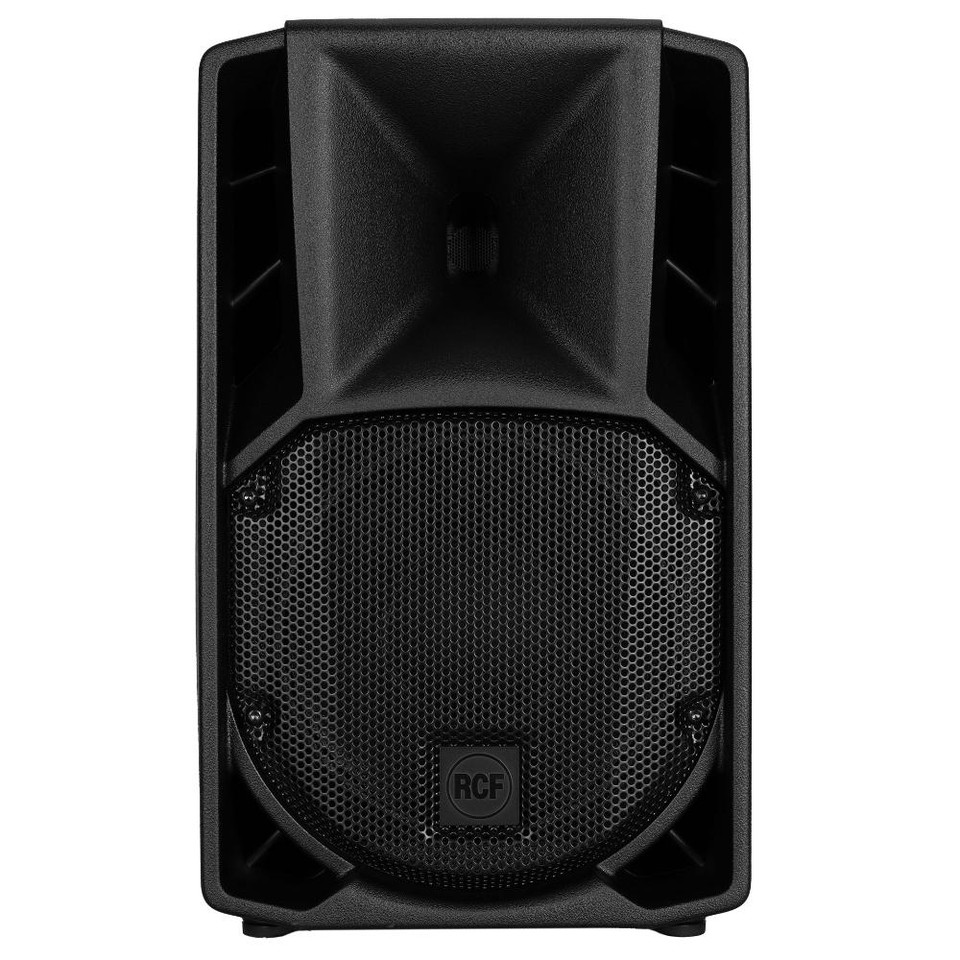

ART 712-A MK5 is a unique product in its category. The 1.75" compression driver offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Powerful Class D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Superior Transducers

Lightweight and powerful, RCF drivers are a true reference for high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.

High Frequencies

The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs making it 10 times more durable than previous designs. The redesigned phase plug increases sound clarity, enhancing transient response and improving coupling with the low-frequency transducer.

Low Frequencies

Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels. Only the best woofer design can fit ART 7.

Features

• 129 dB Max SPL
• 1400 WATT 2-way peak power
• 90° x 60°, Wide dispersion constant directivity horn
• Innovative DSP Processing
• 1,75" Compression Driver
• 12" Woofer
• FiRPHASE Technology
• XBOOST Low Frequencies Enhancer

Specifications

Acoustical specifications

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max SPL @ 1m: 129 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°

Transducers

• Compression Driver: 1 x 1.0'', 1.75'' v.c
• Woofer: 12'', 2.5'' v.c

Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input Sensitivity: -32 dBu

Processor section

• Crossover Frequencies: 1600
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, MIC/Line

Power section

• Total Power: 1400 W Peak
• High frequencies: 400 W Peak
• Low frequencies: 1000 W Peak
• Cooling: Convection
• Connections: VDE

Standard compliance

• Safety agency: CE compliant

Physical specifications

• Hardware: 2 x M10
• Handles: 1 on top
• Pole mount/Cap: Yes
• Color: Black

Size

• Height: 637 mm / 25.08 inches
• Width: 387 mm / 15.24 inches
• Depth: 363 mm / 14.29 inches
• Weight: 17.8 kg / 39.24 lbs
