Overview

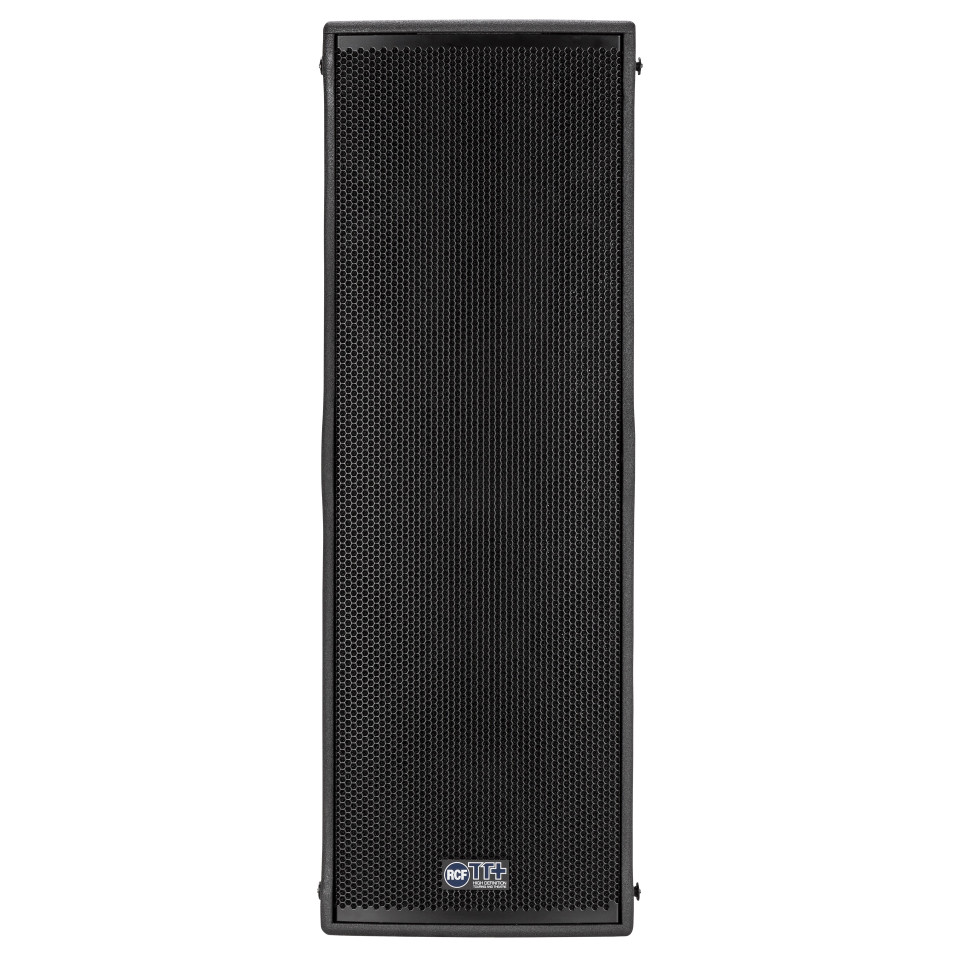

The TTL6-A is a high power, three way, active line source engineered to deliver high fidelity output for use indoors and outdoors, for medium to large spaces. TTL6-A provides all the advantages of line array technology, such as high direct sound, increased range and a uniform level distribution, with additional ease of use. It is the preferred sound set-up for stacked systems and when a wider dispersion is required. The 3-way TTL6-A line source is equipped with 2 x 12” low frequencies woofers, 4 x 6.5” midranges and a 3.0” voice coil compression driver with wave-guide for distinctive homogenous directivity. The integration of four channels of digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency.

Features

• RDNet remote control
• 4 x Class D amplifier, 2200 Watt total power
• Premium-quality DSP with optimized phase response
• 1.4" neo compression driver, 3.0" voice coil with a waveguide
• 4 x 6.0" neo midranges
• 2 x 12" neo woofers
• 139dB max SPL
• Maximum output, perfect audio fidelity
• Tour grade cabinet and mechanics

Specifications

• FREQUENCY RESPONSE: 45Hz - 20000Hz
• MAX SPL @ 1M: 139dB
• HORIZONTAL COVERAGE ANGLE: 90°
• VERTICAL COVERAGE ANGLE: 30°

Transducers

• COMPRESSION DRIVER: 1.4'' neo, 3.0'' v.c
• MIDRANGE: 4 x 6.0'' neo, 2.0'' v.c
• WOOFER: 2 x 12'' neo, 3.0'' v.c

Input/Output section

• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, RDNet Ethercon
• OUTPUT CONNECTORS: XLR, RDNet Ethercon
• INPUT SENSITIVITY: +4dBu

Processor section

• CROSSOVER FREQUENCIES: 200Hz - 800Hz
• PROTECTIONS: Thermal, RMS
• LIMITER: Soft Limiter
• CONTROLS: Close, Linear, Far, 2x Presets
• RDNET: Yes

Power section

• TOTAL POWER: 4400 Peak, 2200W RMS
• HIGH FREQUENCIES: 800W Peak, 400W RMS
• MID FREQUENCIES: 1400W Peak, 700W RMS
• LOW FREQUENCIES: 2200W Peak, 1100W RMS
• COOLING: Convection

CONNECTIONS

• Powercon IN/OUT
• Standard compliance: CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: Baltic birch plywood
• HARDWARE: Pole Mount, integrated
• HANDLES: 2 side, 2 back
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 1100mm / 43.31inches
• WIDTH: 378mm / 14.88inches
• DEPTH: 468mm / 18.43inches
• WEIGHT: 53kg / 116.84lbs

Shipping information

• PACKAGE HEIGHT: 430mm / 16.93inches
• PACKAGE WIDTH: 1140mm / 44.88inches
• PACKAGE DEPTH: 520mm / 20.47inches
• PACKAGE WEIGHT: 56kg / 123.46lbs
