Overview

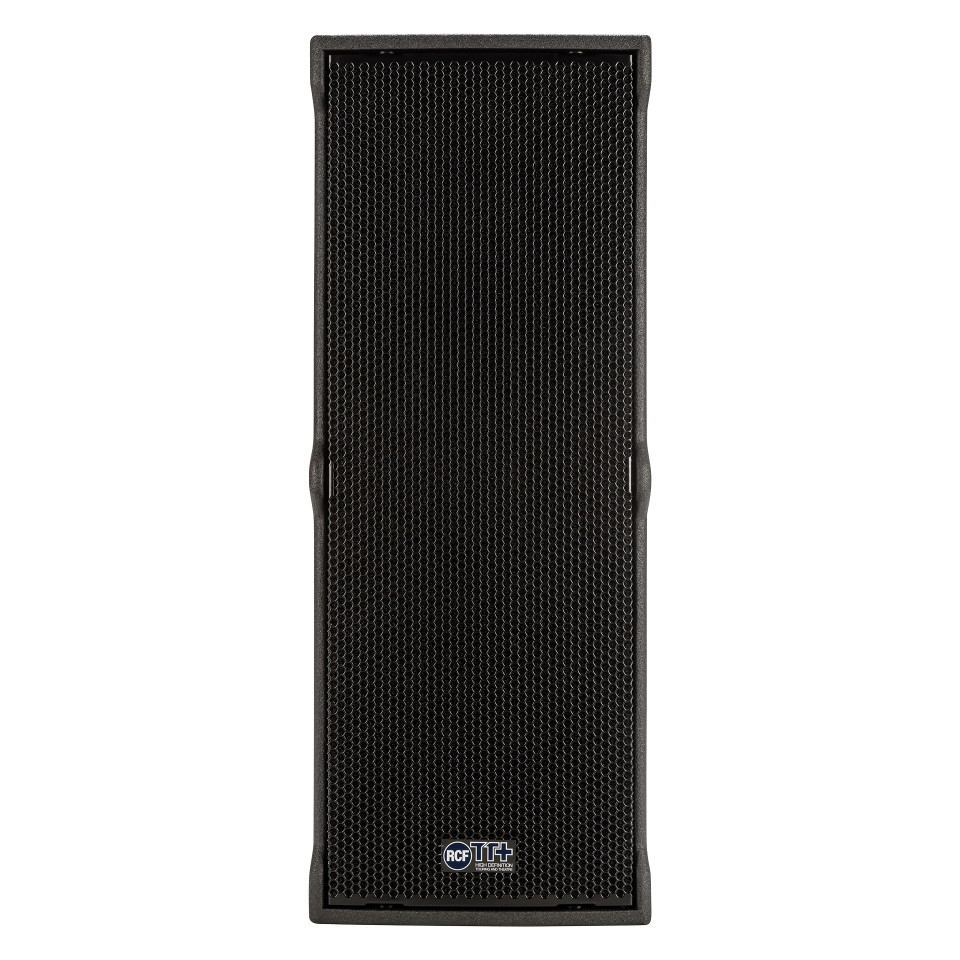

The TTW 4-A point source speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. It is especially suitable for stacked and flown systems when a wide dispersion is required. With all the advantages of TT+ technology, such as coherent directivity, power, and precision, it’s designed for professional applications.

Features

• 134 dB max SPL
• 100° x 50° coverage
• LF 2 x 10’’ neodymium woofer, 3.0” voice coil
• HF 1.5” Nd comp. driver 4.0” voice coil
• 2 x Class-D amplifiers, 1600 Watt RMS total power
• 45 – 20.000 Hz frequency range
• RDNet on board
• FiRPHASE 0° linear phase

Specifications

Acoustical specifications

• Frequency Response: 45 Hz ÷ 20000 Hz
• Max SPL @ 1m: 134 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 50°

Transducers

• Compression Driver: 1 x 1.5'' neo, 4.0'' v.c
• Woofer: 2 x 10'' neo, 3.0'' v.c
• Input/Output section
• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: +4 dBu

Processor section

• Crossover Frequencies: 900Hz
• Protections: Thermal, RMS
• Limiter: Fast Limiter
• Controls: Selectable preset, volume, delay
• RDNet: Yes

Power section

• Total Power: 3200 W Peak, 1600 W RMS
• High frequencies: 1200 W Peak, 600 W RMS
• Low frequencies: 2000 W Peak, 1000 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• Safety agency: CE compliant

Physical specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: Array fittings, 2xM10 on the top, 2xM8 on each side
• Handles: 2 Side, 2 Rear
• Pole mount/Cap: Yes
• Grille: Steel
• Color: Black

Size / Weight

• Height: 825 mm / 32.48 inches
• Width: 316 mm / 12.44 inches
• Depth: 369 mm / 14.53 inches
• Weight: 30.4 kg / 67.02 lbs

Shipping information

• Package Height: 410 mm / 16.14 inches
• Package Width: 865 mm / 34.06 inches
• Package Depth: 365 mm / 14.37 inches
• Package Weight: 33.5 kg / 73.85 lbs
