Overview

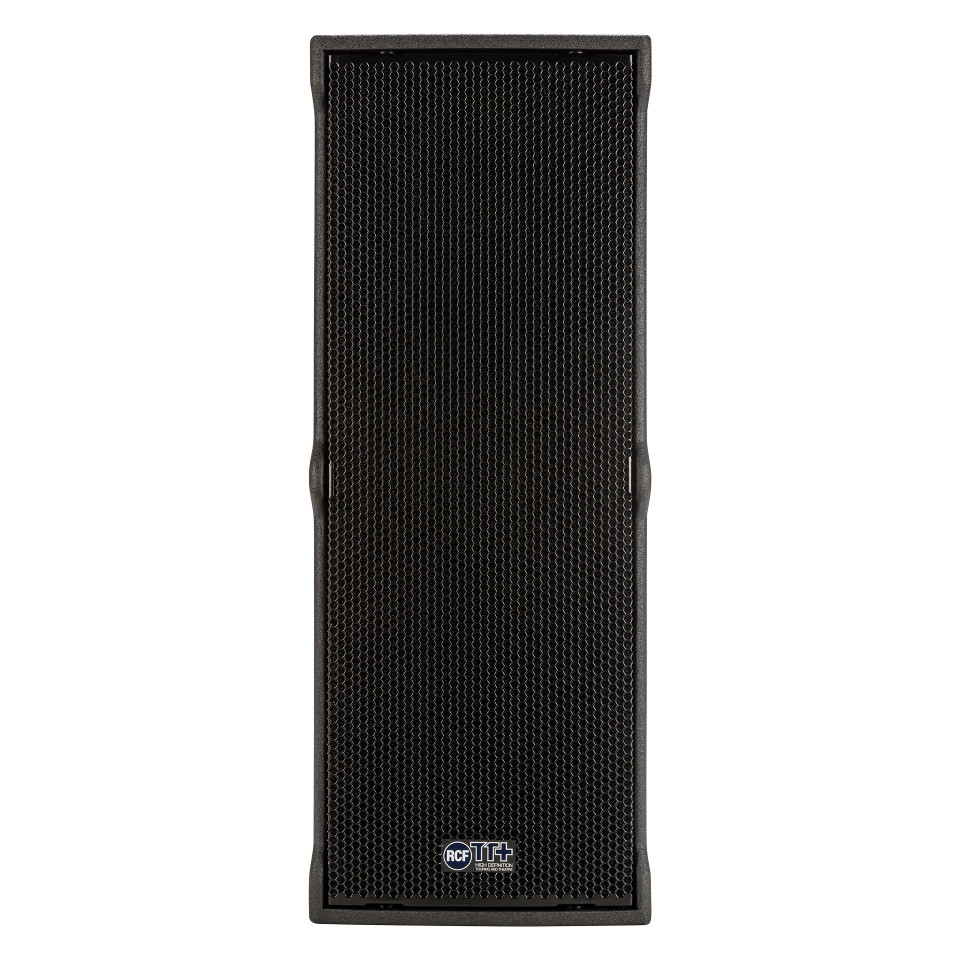

The TTL 4-A speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. With all the advantages of TT+ technology, such as high directivity, long-range, power, and precision, it’s designed for professional applications.
Features
- 135 dB max SPL
- 100° x 25° coverage
- LF 2 x 10’’ neodymium woofer, 3.0” voice coil
- HF 1.5” Nd comp. driver 4.0” voice coil
- 2 x Class-D amplifiers, 1600 Watt RMS total power
- 45 – 20.000 Hz frequency range
- RDNet on board
- FiRPHASE 0° linear phase
Specifications
Acoustical specifications
- Frequency Response: 45 Hz ÷ 20000 Hz
- Max SPL @ 1m: 135 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 25°
Transducers
- Compression Driver: 1 x 1.5'' neo, 4.0'' v.c
- Woofer: 2 x 10'' neo, 3.0'' v.c
- Input/Output section
- Input signal: bal/unbal
- Input connectors: XLR, RDNet Ethercon
- Output connectors: XLR, RDNet Ethercon
- Input sensitivity: +4 dBu
Processor section
- Crossover Frequencies: 900Hz
- Protections: Thermal, RMS
- Limiter: Fast Limiter
- Controls: Selectable preset, volume, delay
- RDNet: Yes
Power section
- Total Power: 3200 W Peak, 1600 W RMS
- High frequencies: 1200 W Peak, 600 W RMS
- Low frequencies: 2000 W Peak, 1000 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
Standard compliance
- Safety agency: CE compliant
Physical specifications
- Cabinet/Case Material: Baltic birch plywood
- Hardware: Array fittings, 2xM10 on the top, 2xM8 on each side
- Handles: 2 Side, 2 Rear
- Pole mount/Cap: Yes
- Grille: Steel
- Color: Black
Size / Weight
- Height: 825 mm / 32.48 inches
- Width: 316 mm / 12.44 inches
- Depth: 369 mm / 14.53 inches
- Weight: 30.4 kg / 67.02 lbs
Shipping information
- Package Height: 410 mm / 16.14 inches
- Package Width: 865 mm / 34.06 inches
- Package Depth: 365 mm / 14.37 inches
- Package Weight: 33.5 kg / 73.85 lbs
