Overview2800 W power rating 136 dB SPL Max 30 - 400 Hz Frequency Range 1 x 18" Hyper Ventilation Neodymium Subwoofer DSP Controlled Input Section with selectable presets RDNet remote monitoring and control Delay Control Baltic Birch Cabinet Specifications

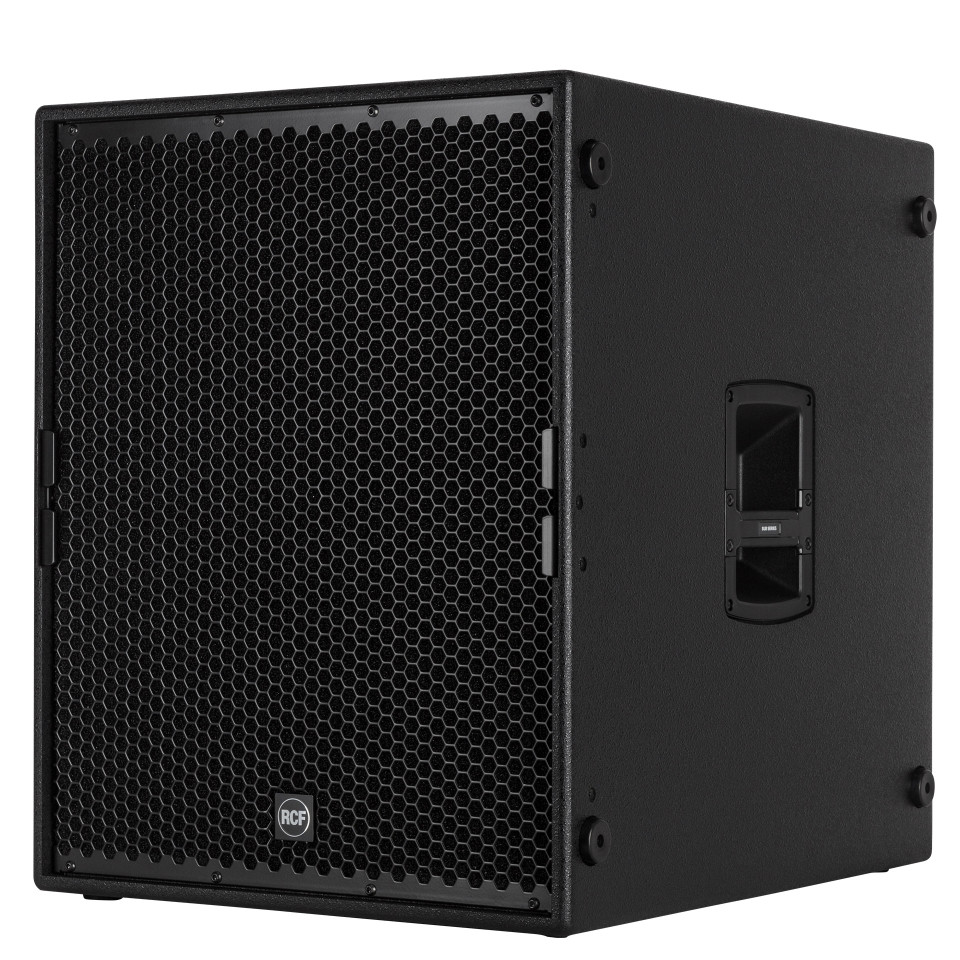

The SUB 9004-AS is a single 18” high power active subwoofer. It employs a state of the art transducer featuring a hypervented high power neodymium magnetic circuit with 4” voice coil. The extremely high power amplifier is a new design that delivers extended low frequency performance. Due to its rugged construction it is perfect for AV rental inventories.
Features Acoustical specifications
Frequency Response : 30 Hz ÷ 400 Hz
Max SPL @ 1m : 136 dB
Transducers
Woofer : 1 x 18'' neo, 4.0'' v.c
Input/Output section
Input signal : bal/unbal
Input connectors : XLR, RDNet Ethercon
Output connectors : XLR, RDNet Ethercon
Input sensitivity : +4 dBu
Processor section
Hi-Pass Frequencies : 35 Hz, 50 Hz
Low-Pass Frequencies : Variable from 50 Hz to 400 Hz
Protections : Thermal, RMS
Limiter : Fast Limiter
Controls : Gain, Eq., Preset Switch, Output Delay
RDNet : Yes
Power section
Total Power : 2800 W Peak, 1400 W RMS
Cooling : Forced
Connections : Powercon IN/OUT
Standard compliance
Safety agency : CE compliant
Physical specifications
Cabinet/Case Material : Baltic birch plywood
Hardware : 2xM20
Handles : 2 Side
Pole mount/Cap : M20 thread
Grille : Steel
Color : Black
Size / Weight
Height : 700 mm / 27.56 inches
Width : 558 mm / 21.97 inches
Depth : 700 mm / 27.56 inches
Weight : 57 kg / 125.66 lbs
Shipping information
Package Height : 770 mm / 30.31 inches
Package Width : 770 mm / 30.31 inches
Package Depth : 630 mm / 24.8 inches
Package Weight : 61.8 kg / 136.25 lbs
