Overview1100 W Class D Amplifier 60 x 60 constant directivity coverage angle 15" neo coaxial woofer, 3.5" voice coil 1.5 " neo coaxial c. driver, 2.5" voice coil DSP Processing Onboard RDNet Control Multifunctional cabinet Very high output Specifications

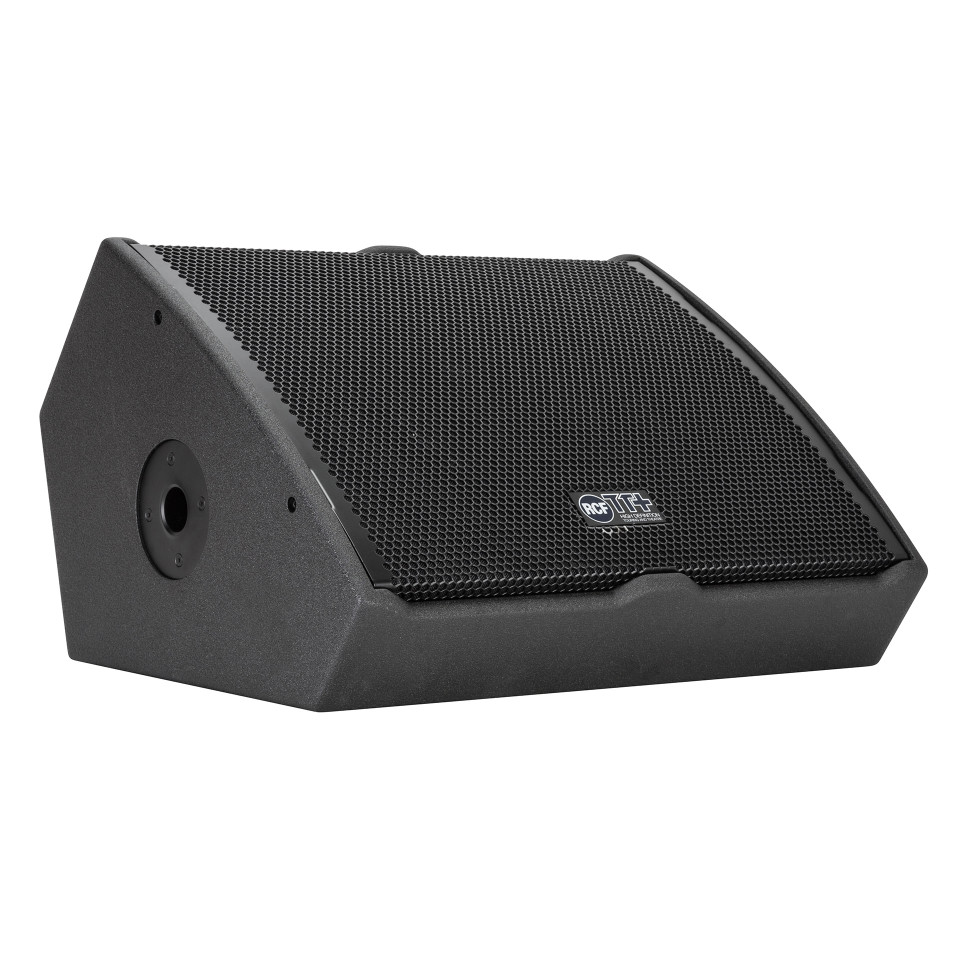

The TT25-CXA is a full range, high performance coaxial monitor. The linear response curve, the consistent coverage and acoustic output make the TT25-CXA II the professional choice for most demanding situations. The voicing is accurate and deep, the sound is transparent in the mids and extremely accurate at very high frequencies. The size is compact and the profile is very low for a discreet appearance. The TT25-CXA is a high power active system that sets a new standard in the touring and theatre sound reinforcement. By producing flat amplitude and phase response, full-range bandwidth and exceptional impulse response, the TT25-CXA far exceeds the capabilities of conventional stage monitors.
Features Acoustical specifications
Frequency Response : 50 Hz ÷ 20000 Hz
Max SPL @ 1m : 133 dB
Horizontal coverage angle : 60°
Vertical coverage angle : 60°
Transducers
Compression Driver : Coaxial 1.5'' neo, 2.5'' v.c
Woofer : Coaxial 15'' neo, 3.5'' v.c
Input/Output section
Input signal : bal/unbal
Input connectors : XLR, RDNet Ethercon
Output connectors : XLR, RDNet Ethercon
Input sensitivity : -2 dBu/+4 dBu
Processor section
Crossover Frequencies : 900 Hz
Protections : Thermal, HF
Limiter : Soft Limiter
Controls : Proces., 8 sel. presets
RDNet : Yes
Power section
Total Power : 2200 W Peak, 1100 W RMS
High frequencies : 600 W Peak, 300 W RMS
Low frequencies : 1600 W Peak, 800 W RMS
Cooling : Convection
Connections : Powercon IN/OUT
Standard compliance
Safety agency : CE compliant
Physical specifications
Cabinet/Case Material : Baltic birch plywood
Handles : 1 Top
Pole mount/Cap : Yes
Grille : Steel
Color : Black
Size / Weight
Height : 353 mm / 13.9 inches
Width : 580 mm / 22.83 inches
Depth : 486 mm / 19.13 inches
Weight : 18 kg / 39.68 lbs
Shipping information
Package Height : 615 mm / 24.21 inches
Package Width : 390 mm / 15.35 inches
Package Depth : 515 mm / 20.28 inches
Package Weight : 23 kg / 50.71 lbs
