Overview

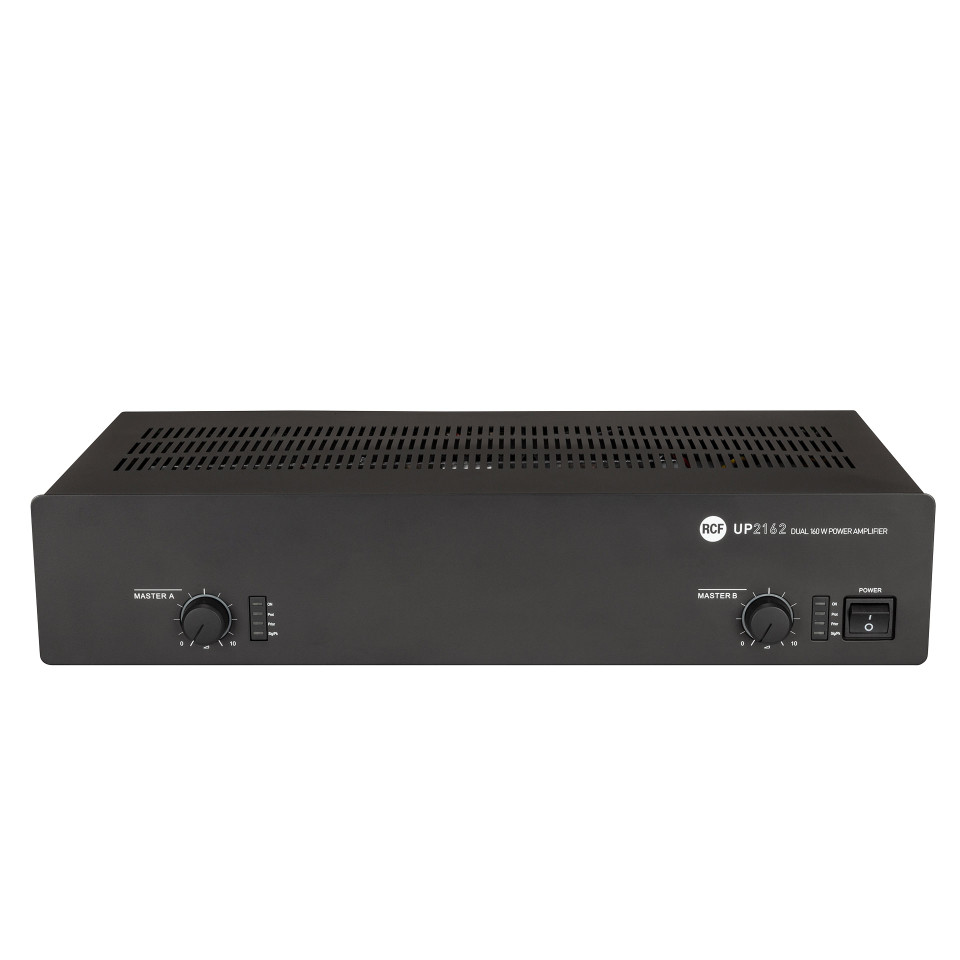

UP 2162 is a device with 2 separated and independent 160 W amplifiers, each having 2 audio inputs, of which one with priority function through a closing contact. Both the audio inputs are at ‘line’ level: for pre-amplified signals or music sources (e.g. CD players, tuners, etc.).The amplifier output is available either for low impedance loudspeakers (min. 4Ω) or 100 – 70V constant voltage line (for loudspeakers having 100 – 70V transformers). The amplifier is Class D with switching power supply; the overall weight is extremely reduced plus it offers a wide audio bandwidth quality.

Features

• Power Amplifier designed for the transmission of announcements and / or musical programmes
• Main input on removable connector
• AUX Input for music sources removable connector
• Controls for treble, bass and Gain on the AUX Input
• Main Input can have priority over the Aux Input (by means of an external command linked to the removable connector)
• Output speaker available either for low impedance loudspeakers (min. 4Ω) or 100 – 70V constant voltage line
• Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal/peak level (SIG/PK)

Specifications

Amplifier

• Number of channels: 2
• Power output per channel (@ 4Ω): 160W RMS
• Power output (@ 100V): 160W RMS
• Frequency Response (-3dB): 50Hz - 16kHz
• Signal/noise rate (”A” weighted) >80dB
• Distortion (THD+N) @ 1kHz nominal power:

Input section

• Total number of inputs: 4
• Balanced: 4
• Mono: 2
• Stereo: 2
• Line inputs: 4
• Line connectors: Euroblock
• General Purpose Inputs (GPI): 4

Output section

• Power output connectors: Euroblock
• Processing Tone controls: Yes
• Controls Configuration: Front panel
• Priority: Yes

Protections

• Cooling: Convection
• Short circuit: Yes
• Thermal: Yes
• DC: Yes
• Fuses: Yes

Power requirement

• Operating voltage: 220-240/115V~ 50/60Hz
• Voltage selection: Internal
• Power consumption: 700W
• Standard compliance CE marking: Yes

Physical specifications

• Cabinet/Case Material: Metal
• Color: Black
• Rack mounting: 19", 2U

Size

• Height: 88mm / 3.46 inches
• Width: 442mm / 17.4 inches
• Depth: 230mm / 9.06 inches
• Weight: 7.22kg / 15.92lbs

Shipping information

• Package Height: 200mm / 7.87 inches
• Package Width: 330mm / 12.99 inches
• Package Depth: 500mm / 19.69 inches
• Package Weight: 8.7kg / 19.18lbs
