Overview

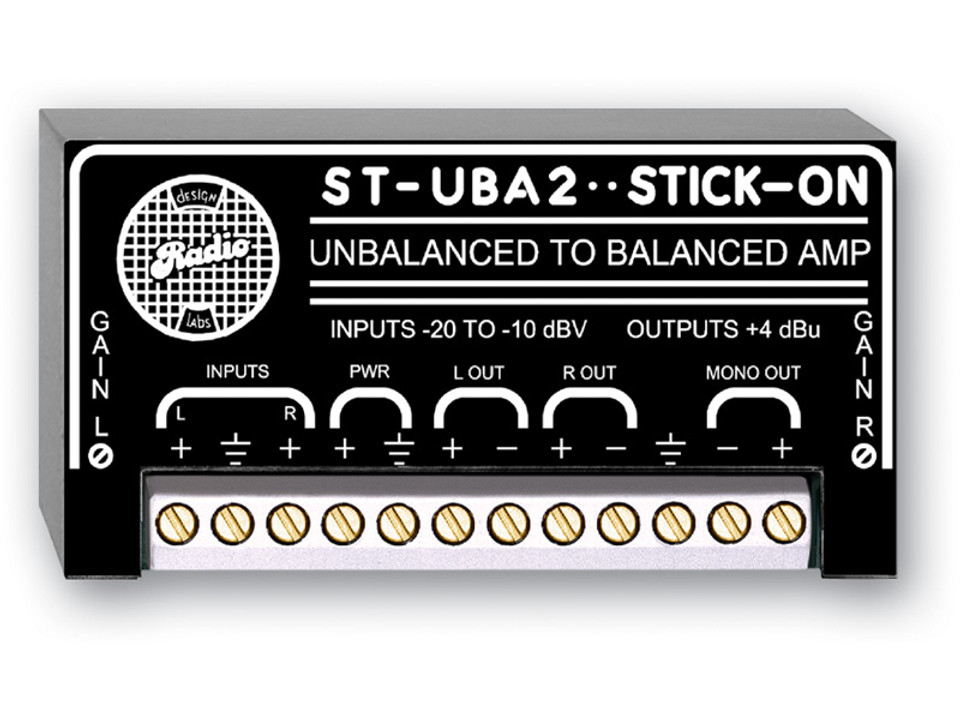

The ST-UBA2 is used in any application requiring conversion from unbalanced consumer format signals to professional +4 dBu. It may be used to balance audio from CD players, cassette decks, computer sound cards, televisions, and a wide variety of other unbalanced sources. The mono sum output may be used to drive patch-bay jacks, monitors or subwoofer amplifiers.
Separate Dual-LED VU metering is provided for the left and right outputs. A green LED illuminates at 15 dB below +4 dBu. The intensity of the green LED progresses from minimum at -11 dBu to full intensity at +4 dBu. The adjacent red LED illuminates at +4 dBu.
The audio clarity, low-noise, low-distortion and excellent crosstalk performance makes this module ideally suited to a wide variety of demanding audio applications. Use this module in conjunction with other RDL® modules as part of a high quality, flexible audio/video system.
Features
- Convert Stereo IHF Levels to Stereo PRO
- Additional Summed MONO OUT
- Independently Adjustable Gain
- Ground-Referenced Conversion Module
- Dual-LED VU Metering for Each Channel Included
- Unparalleled Audio Performance
Specifications
| Inputs (2) | Unbalanced line-level |
| Input Impedance | 10 k? |
| Output Impedance | 150 ? |
| Input Signal Range | -20 dBV to -10 dBV |
| Outputs (3) | +4 dBu balanced (left, right, mono sum) |
| Gain | 2 dB to 22 dB (adjustable) |
| THD+N | < 0.02% (20 Hz to 20 kHz) |
| Frequency Response | 20 Hz to 20 kHz (± 0.2 dB) |
| Noise | < -85 dB (referred to +4 dBu) |
| Indicators(4) | 1 green LED per channel indicating 15 dB range below +4 dBu output level output level |
| IMD | < 0.004% |
| Crosstalk < -75 dB @ 1 kHz < -60 dB @ 10 kHz | |
| Headroom | > 18 dB above +4 dBu |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 75 mA |
| Package Type | Cardboard Box |
| Package Dimensions | 2 x 2 x 4 in. |
| Shipping Weight | 0.205 lbs. |
| WEEE weight | 0.155 lbs. |
| Tariff code | 8518.40.2000 |
