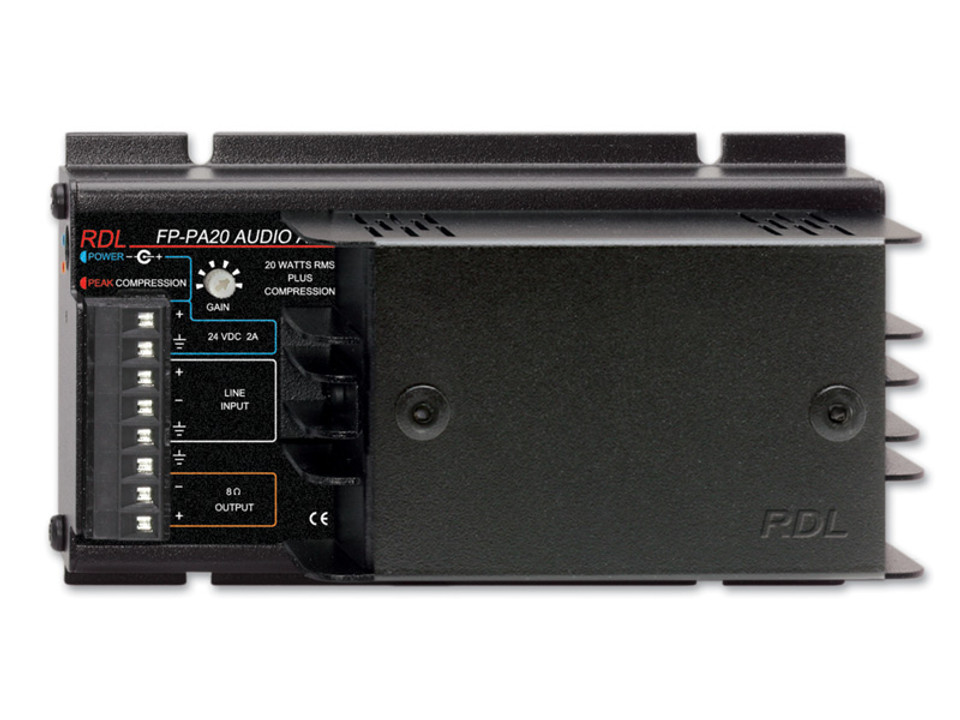

Features
- 20 Watts RMS Audio Power Amplifier
- Output for 8 Ω Speaker
- Integral Audio Compressor to Control Clipping
- High Overall Operating Audio Level
- Maximized Audio Level for Output Power
- Audio Quality Superior to Standard Amplifiers
Specifications
| Input | Line level (+4 dBu bal; -10 dBV unbal) |
| Input Impedance | 20 k? balanced bridging; 10 k? unbal |
| Input / Output Connector | Detachable terminal block |
| Gain Adjustment | Single turn audio taper |
| Minimum Input Levels | Balanced: -26 dBu (to cross compressor threshold) Unbalanced: -28 dBV (to cross compressor threshold) |
| Maximum Input Levels | Balanced: +23 dBu Unbalanced: +15 dBV |
| Frequency Response | 35 Hz to 50 kHz (± 1.5 dB)* |
| THD+N: *measured at compressor threshold level equaling 4 W RMS output power < 0.1% (@ 1 kHz)*
< 0.5% (35 Hz to 20 kHz)* |
|
| Noise | < -80 dB (below 20 W RMS) |
| Compressor | Threshold 6 dB below rated output, automatic adjusting attack and release |
| CMRR | > 55 dB (50 Hz to 120 Hz) |
| Output Power | 20 W RMS into 8 ? |
| Ambient Operating Environment | 0° C to 30° C Max; 20° C Recommended |
| Indicators (2) | Red LED: PEAK LED indicates compressor activity Green LED: Power ON |
| Power Requirement | 24 Vdc @ 1650 mA, Ground referenced(for continuous RMS power output) 24 Vdc @ 1000 mA, Ground referenced(for normal uncompressed audio) |
| Overall Dimensions | Height: 2.3 in (5.85 cm); Width: 3.25 in. (8.26 cm); Length: 6 in. (15.3 cm) |
| Package Type | Cardboard Box |
| Package Dimensions | 4.375 x 7 x 2.25 in. |
| Shipping Weight | 1.175 lbs. |
| WEEE weight | 0.96 lbs. |
| Tariff code | 8518.50.0000 |
