Overview

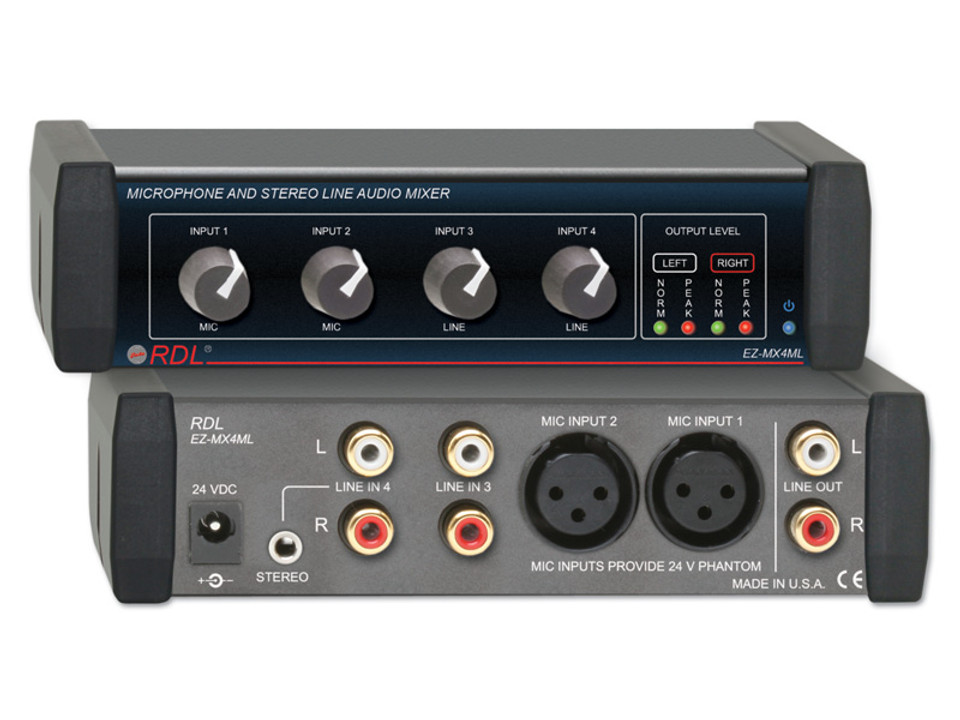

The EZ-MX4ML is a stereo audio mixer with two mic and two line inputs. Microphones connect through balanced XLR jacks that provide phantom voltage. Both line inputs connect through RCA jacks; one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The EZ-MX4ML is used in houses of worship, restaurants, clubs, meeting rooms, studios, broadcast and commercial sound systems.
Features
- Four Input Mixer, Two Mic and Two Line Inputs
- Two Balanced Microphone Inputs on XLR
- One Unbalanced Line Input on RCA Jacks
- One Line Input on MINI or RCA Jacks
- Unbalanced Output on RCA Jacks
- Microphone Inputs Provide Phantom Voltage
- Dual-LED VU Meter for Each Channel
Specifications
| Mic inputs (2) | 1.2 k? balanced on XLR jack, mic-level, -11 dBu max. |
| Line inputs (3) | > 10 k?, -10 dBV nominal on RCA jacks, -10 dBV nominal on RCA jacks or Mini Jack, +20 dBV max. |
| Level controls (4) | Off to 50 dB gain (mic), Off to 12 dB gain (line) |
| Output | -10 dBV nominal on RCA jacks or Mini jack (stereo), +16 dBV max. |
| Frequency Response | 80 Hz to 40 kHz (±1 dB, mic input, -6 dB at 20 Hz with integral high-pass filter), 10 Hz to 20 kHz (±0.01 dB, line input) |
| THD+N | < 0.1% (20 Hz to 20 kHz, -50 dBu mic input), < 0.05% (20 Hz to 20 kHz, line input) |
| Crosstalk | < -72 dB (1 kHz) |
| CMRR | > -55 dB (20 to 20 kHz, mic input) |
| Metering | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
| Phantom | 24 V (IEC 61938: 2013) |
| Noise | < -65 dB (below -10 dBV output, -50 dBu mic input), < -75 dB (below -10 dBV output, line input) |
| 24 Vdc power supply current | 50 mA (idle), 80 mA (max.), 100 mA (max. with phantom) |
| Case dimensions | 5.75” (14.6 cm)W x 3” (7.6 cm)D |
| Mounting size | 1/3 rack width |
| Package Type | Cardboard Box |
| Package Dimensions | 9.5 x 7 x 2.25 in. |
| Shipping Weight | 1.015 lbs. |
| WEEE weight | 0.615 lbs. |
| Tariff code | 8518.40.2000 |
