Passive Single-Pair Sender-Twisted Pair Format-A-Mini-Jack Input-Stainless

SKU: RDL-DS-TPS7A
MSRP: $142.66
MAP: $106.99

Overview

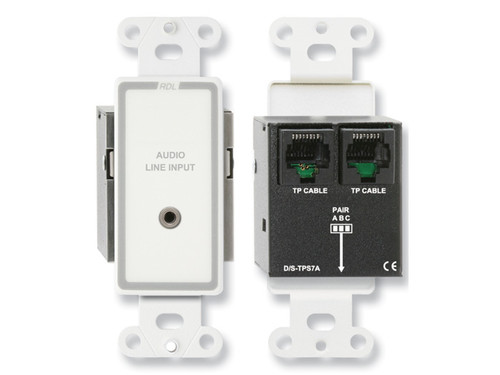

The -TPS7A is a single-pair audio sending module compatible with RDL® Format-A twisted pair products. The front panel features a single stereo mini-jack intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP CABLE.

The -TPS7A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to a TP CABLE jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The -TPS7A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.

The -TPS7A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.

Features

  • Stereo Audio Input Combined to Mono Output
  • Input on Mini-jack
  • Switch Selects which RJ45 Pair (A, B or C) is Fed
  • Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
  • Passive Circuitry Does Not Require Power
  • Galvanic Isolation through a Studio-Quality Transformer
  • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

Specifications

Input3.5mm mini-jack, unbalanced stereo combined to mono
Input Level-10 dBV, +22 dBu max
Format-A Signal Pair UsedSwitch-selectable A, B, or C (rear-panel switch)
Format-A InputRJ45 TP CABLE
OuputRJ45 TP CABLE, RDL TP Format-A
Frequency Response20 Hz to 20 kHz (±0.5 dB)
THD< 0.1% (50 Hz to 20 kHz); <0.001% (1 kHz typ)
Power RequirementPassive
Dimensions1.6” (4.06 cm) W; 4.11” (10.45 cm) H; 1.89” (4.8 cm) D
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.52 lbs.
WEEE Weight0.375 lbs.
