Overview

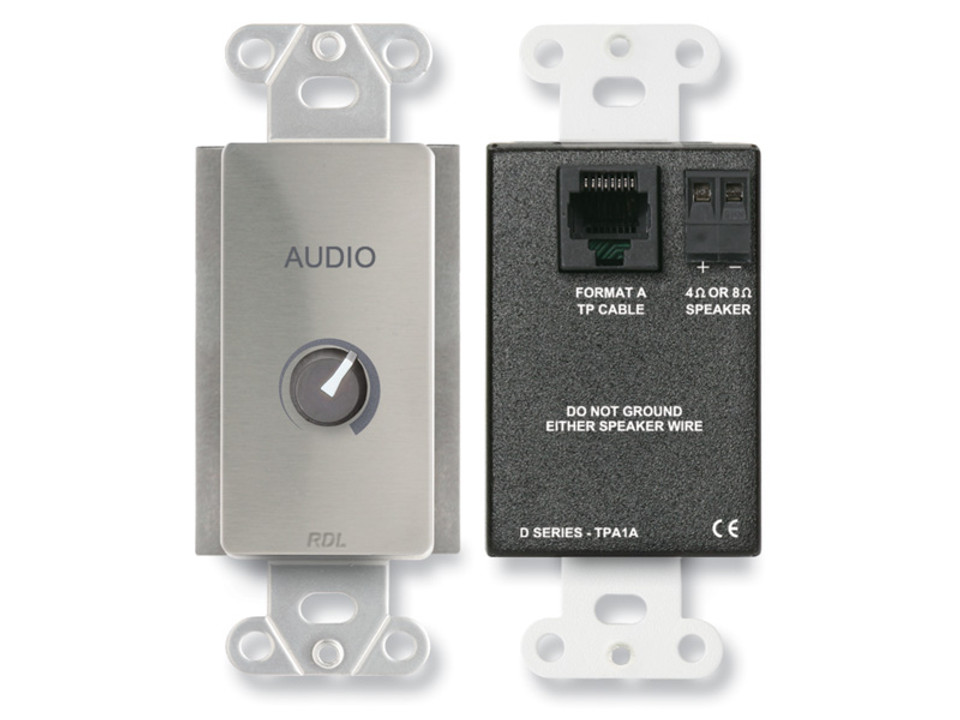

The -TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each -TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment.
The -TPA1A circuits are all designed for low power consumption. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This sleep mode remains active until the user turns up the output level.
The output drives either a 4 Ohm or 8 Ohm speaker. The speaker cable connects to the module using a detachable terminal block.
The front panel does not include any illuminated indicators, making the -TPA1A ideally suited to installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ45.
The -TPA1A may be fed and powered from any RDL Format-A sender, and is ideal in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level).
Use the -TPA1A wherever a single speaker user-adjustable wall mounted amplifier is needed. Combine the amplifier with other RDL Format-A products for a cost-effective, high-performance audio system.
Features
- 3.5 Watt RMS Audio Amplifier into 8 Ohms
- 6.5 Watt RMS Audio Amplifier into 4 Ohms
- Output Drives 4 or 8 Ohm Speaker
- Setting Level to Minimum Activates Energy-Saving Sleep Mode
- High-Efficiency Class D Operation
- VCA Level Adjustment for Scratch-Free Long Life
- Input and Power Connection on RJ45
- Connects to Format-A Sender using Twisted-Pair Cable
- Powered from RDL Twisted Pair Format-A Sender
- Speaker Output Connection on Detachable Terminal Block
- Ultra-Compact All Metal Construction
- Thermal and Short-Circuit Protection
Specifications
| Input | RDL Format-A |
| Input Connector | RJ45 |
| Gain Adjustment | Single turn audio taper, VCA attenuator |
| Frequency Response | 50 Hz to 20 kHz (± 1.5 dB) |
| THD+N | < 0.1% (@ 1 kHz, 1 W) |
| Noise | <-70 dB (below 1 W RMS) |
| CMRR | > 50 dB (50 Hz to 120 Hz) |
| Output Power | 3.5 W RMS (max., into 8 Ohms); 6.5 W RMS (max., into 4 Ohms) |
| Sleep Mode Power Consumption | < 0.3 W |
| Sleep Mode Enable | Active at audio gain <-60 dB |
| Ambient Operating Environment | 0° C to 40° C Maximum; 20° C Recommended |
| Power Consumption | 45 mA (idle), 95 mA (1 W into 8 Ohms), 150 mA (1 W into 4 Ohms), 215 mA (3.5 W into 8 Ohms) |
| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.41 lbs. |
