RDL DB-SFRC8LC

RDL DB-SFRC8LC

RDL-DB-SFRC8LC

RDL DB-SFRC8LC

Audio Selector for SourceFlex Distributed Audio System-Black (Custom Labeled) (See Part#ZCST-LBL for setup charge)

SKU: RDL-DB-SFRC8LC
MSRP: $319.69
MAP: $239.77

(Custom Labeled)

Overview

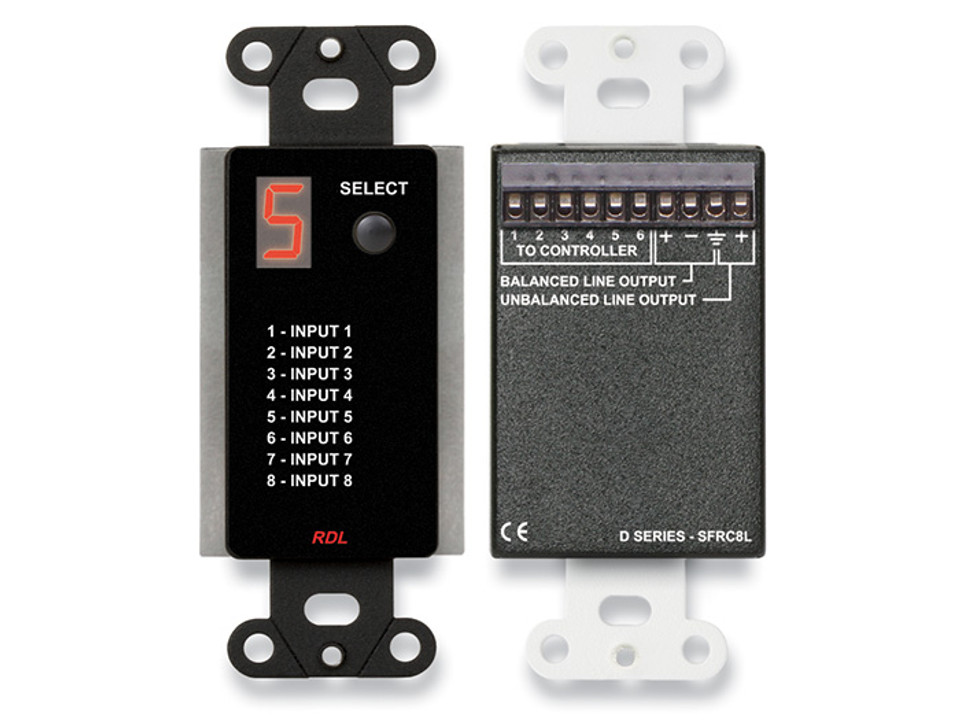

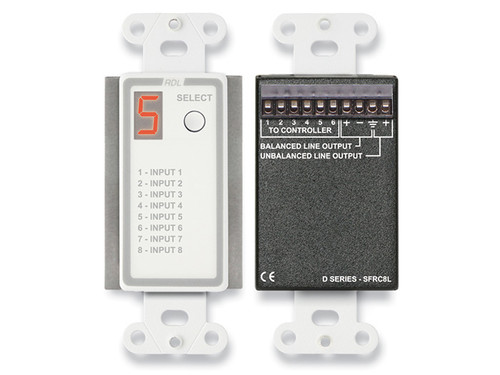

The D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier.

The balanced line output level is +4 dBu nominal. The unbalanced output is -10 dBV.

The D SERIES-SFRC8L is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8L is ideal for office distributed sound systems with background music and a paging source.

Features

  • Single Room Listening Station with In-Wall Controls
  • Source Selection Pushbutton
  • Selection From up to 8 Audio Sources
  • Line-Level Audio Output
  • Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
  • Compatible with Other RDL Wall Plates and Controls
  • Ideal for Office Distributed Sound Systems with Music and Paging

Specifications

Input 10-position detachable terminal block
Display 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
Selector Momentary button channel SELECT
Frequency Response 20 Hz to 20 kHz (±0.1 dB)
THD+N

< 0.1% (20 Hz to 20 kHz)
Noise < -85 dB (Below +4 dBu)
Control Signals dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
Line Outputs (2) +4 dBu balanced, -10 dBV unbalanced, nominal
Power Requirement 24 Vdc @ 30 mA, Supplied from SourceFlex controller
Ambient Operating Environment 0° C to 50° C Maximum; 20° C Recommended
Dimensions Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight .44 lbs.
WEEE weight 0.305 lbs.
Tariff code 8518.40.2000
