RDL DB-PSP1F

RDL DB-PSP1F

RDL-DB-PSP1F

RDL DB-PSP1F

Decora-Style Active Loudspeaker-Black-Installer Level Adjust

SKU: RDL-DB-PSP1F
MSRP: $338.11
MAP: $253.59

Overview

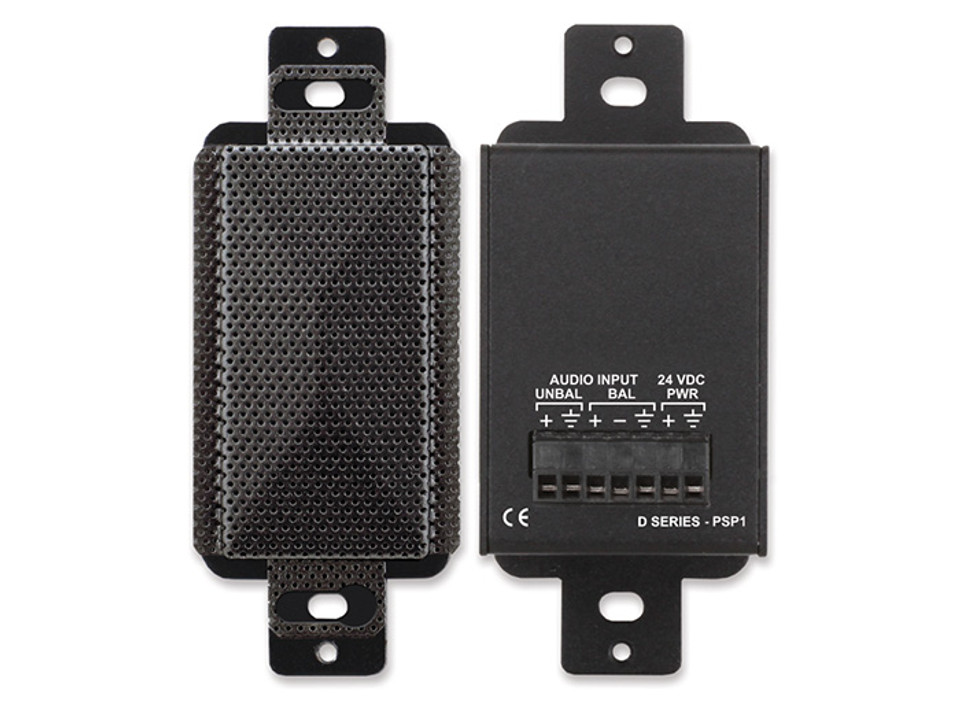

The D SERIES-PSP1F is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is set by the installer using a volume control located behind the speaker grill. The PSP1F includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.

The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

Models are available with grills in black (DB-PSP1F), white (D-PSP1F), gray (DG-PSP1F) or stainless steel (DS-PSP1F).

Features

  • Exceptional Audio Quality for Ultra-Compact Size
  • 2 Watt RMS Audio Amplifier
  • Compressor/Limiter Prevents Clipping
  • Balanced +4 dBu Input on the Rear Panel
  • Unbalanced -10 dBV input on the Rear Panel
  • Gain Set by the Installer
  • Acoustically Optimized Decora Enclosure
  • Fidelity Comparable to Larger Drivers
  • Hemispherical Dispersion Mounted In Wall or Flat Surface

Specifications

Inputs (2)30 k? balanced or 10 k? unbalanced
Input Level+4 dBu nominal (Balanced); -10 dBV nominal (Unbalanced)
Minimum Input Level-18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced, Max. gain)
Maximum Input Level+22 dBu
Gain AdjustmentSingle-turn audio taper (set by installer)
Maximum SPL81 dB
Frequency Range150 Hz to 20 kHz, nominal
CMRR> 50 dB (50 Hz to 120 Hz)
Power Requirement24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced
Ambient Operating Environment0° C to 40° C Maximum; 20° C Recommended
DimensionsHeight: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.64 in. 6.7 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight.573 lbs.
WEEE weight.43 lbs.
Tariff code8518.40.2000
