Overview

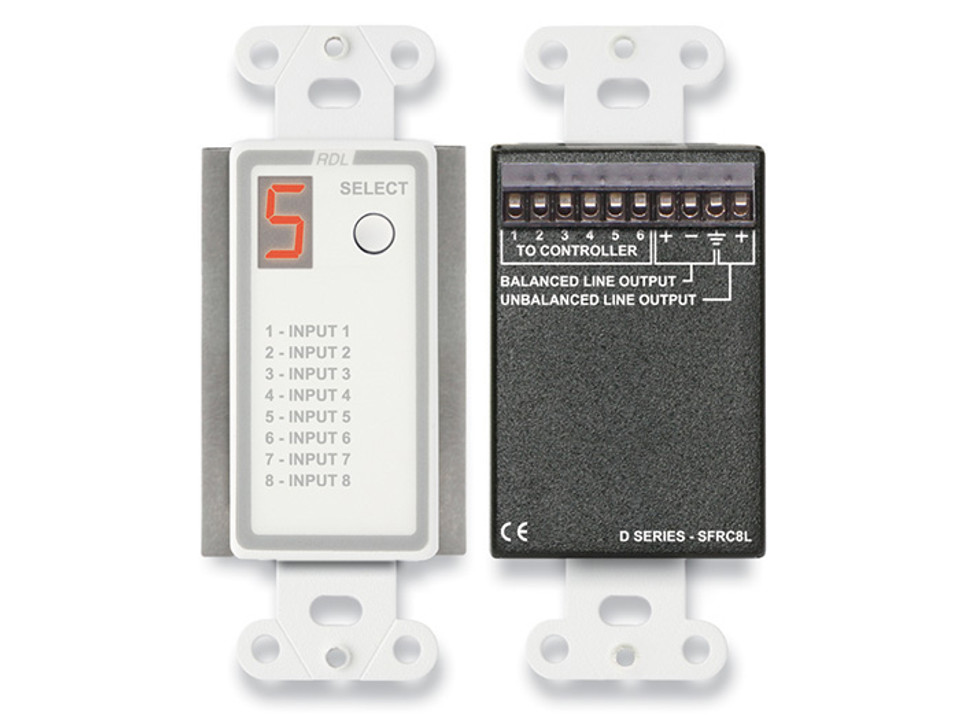

The D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier.
The balanced line output level is +4 dBu nominal. The unbalanced output is -10 dBV.
The D SERIES-SFRC8L is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8L is ideal for office distributed sound systems with background music and a paging source.
Features
- Single Room Listening Station with In-Wall Controls
- Source Selection Pushbutton
- Selection From up to 8 Audio Sources
- Line-Level Audio Output
- Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
- Compatible with Other RDL Wall Plates and Controls
- Ideal for Office Distributed Sound Systems with Music and Paging
Specifications
| Input | 10-position detachable terminal block |
| Display | 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel) |
| Selector | Momentary button channel SELECT |
| Frequency Response | 20 Hz to 20 kHz (±0.1 dB) |
| THD+N
< 0.1% (20 Hz to 20 kHz)
|
|
| Noise | < -85 dB (Below +4 dBu) |
| Control Signals | dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller) |
| Line Outputs (2) | +4 dBu balanced, -10 dBV unbalanced, nominal |
| Power Requirement | 24 Vdc @ 30 mA, Supplied from SourceFlex controller |
| Ambient Operating Environment | 0° C to 50° C Maximum; 20° C Recommended |
| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | .44 lbs. |
| WEEE weight | 0.305 lbs. |
| Tariff code | 8518.40.2000 |
