Overview
The D/S-AVM4 is the ideal choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.

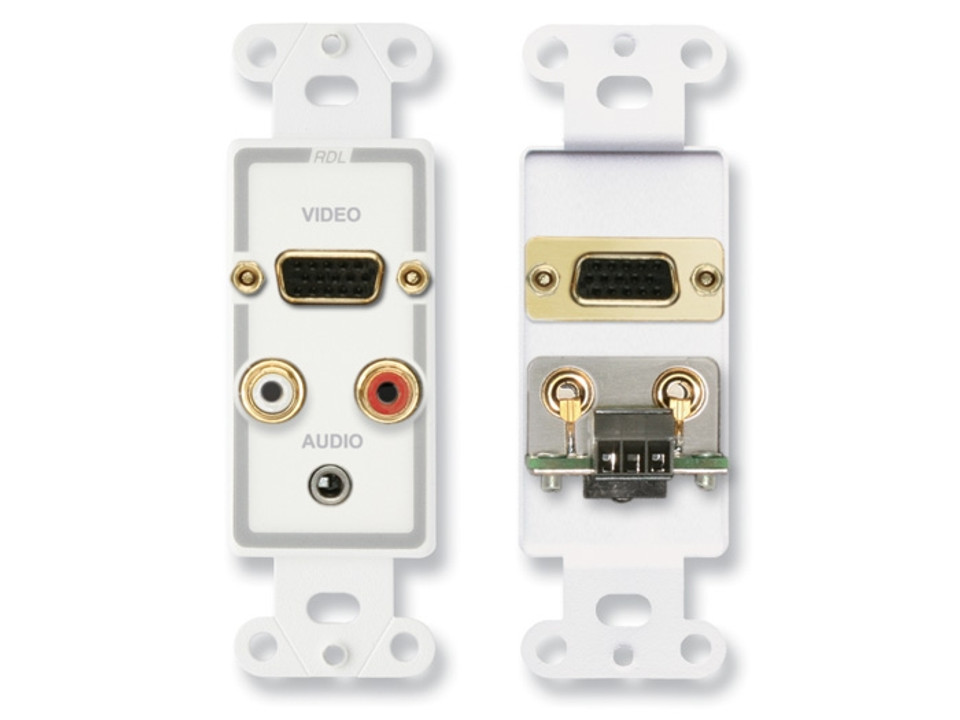

The front panel features a pass-through video monitor connector. Video connections are made on the front and rear panel using a standard DB15 video connector.
The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are fed to a rear-panel detachable terminal block. The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.
Features
- Stereo Audio Inputs to Stereo Audio Output
- Stereo Inputs on RCA Jacks and Stereo Mini-Jack
- Unbalanced Output on Detachable Terminal Block
- Video Monitor Pass-Through Panel Connector
- Available in RDL White/Gray
Specifications
| Audio input connectors (3) | RCA jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo) |
| Video input connector | Female DB15 |
| Audio output connector | Detachable terminal block (Left and Right unbalanced audio) |
| Video output connector | Female DB15 (pass-through from front panel) |
| Dimensions | Height:4.13 in. 10.49 cm Width:1.3 in.3.3 cm Depth:1.8 in.4.57 cm |
| Mounting Box Minimum Depth | 0.15 in. (0.38 cm) plus the depth of the installer-provided video connector |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.25 lbs. |
| WEEE weight | 0.105 lbs. |
| Tariff code | 8536.69.4030 |
