Overview

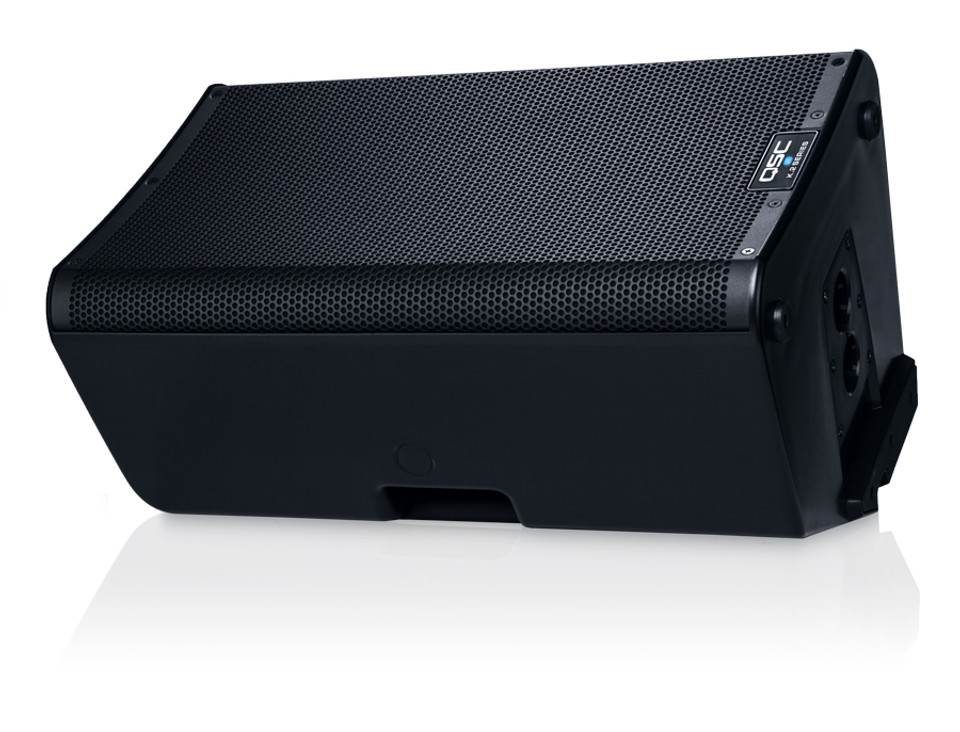

The QSC K.2 Series represents the best-inclass loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.
Features
- Best in class audio performance
- 2000 Watt Class-D amplifier module
- Intrinsic Correction™ tuning and loudspeaker management
- DMT™ (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening are
- Refined, professional appearance looks great in any application
- Rugged ABS enclosure for long life and lasting durability
- Deployment in either main PA or floor monitor position
- Factory Presets and savable/recallable Scenes for commonly-used application
- Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
- Dual pole cup mounts (standard and 7.5 degree down-tilt)
- M10 fittings for flown applications
- Optional security panel prevents unauthorized tampering of controls
- Complete EASE and CAD information available online
- 6-Year Warranty (with product registration)
| Configuration | Multi-purpose, 2-way powered loudspeaker |
| LF Transducer | 10" (254 mm), cone |
| HF Transducer | 1.4" (35.6 mm) titanium diaphragm compression driver |
| Frequency Response (-6 dB) | 56 Hz - 20 kHz |
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
| Nominal Coverage Angle | 90° Axisymetric |
| Maximum Rated SPL1 Amplifier Cooling |
130 dB @1 M, peak 124 dB @ 1 M, continuous Class D Peak: 1800 W (LF), 225 W (HF) Low-noise, variable speed fan |
| Controls | Power 3 x Level Rotary encoder (push) 2 x selection buttons |
| Indicators | Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm) 2 x Power LED (front and rear) 3 x Input Signal LED Input A Mic selected LED Input B Hi-Z selected LED Limiter active LED |
| Connectors | 2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input 1 x 3.5 mm TRS (Stereo Input) 2 x XLR/M (Loop-thru Output) 1 x XLR/M (Mix Output) 1 x locking IEC power connector |
| AC Power Input | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption 1/8th Power2 | 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A |
| Enclosure Details | |
| Enclosure Enclosure | Impact Resistant ABS |
| Attachment Points | 2 x M10 threaded inserts plus Pull-Back |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel, internal cloth lining |
| Dimensions (HxWxD) | 20.4 x 12.6 x 11.8 in 519 x 320 x 300 mm |
| Net Weight | 14.5 kg (32 lbs) |
| Shipping Weight | 17.6 kg (38.8 lbs) |
| Regulatory | CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
| Optional Accessories | K10 Tote, K10 Outdoor Cover M10 Kit-C, K.2-LOC Lock Out Cove K10.2 Yoke |
