High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.
Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selected contours for commonly-used applications
- Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
- Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online
- 3-Year Warranty*

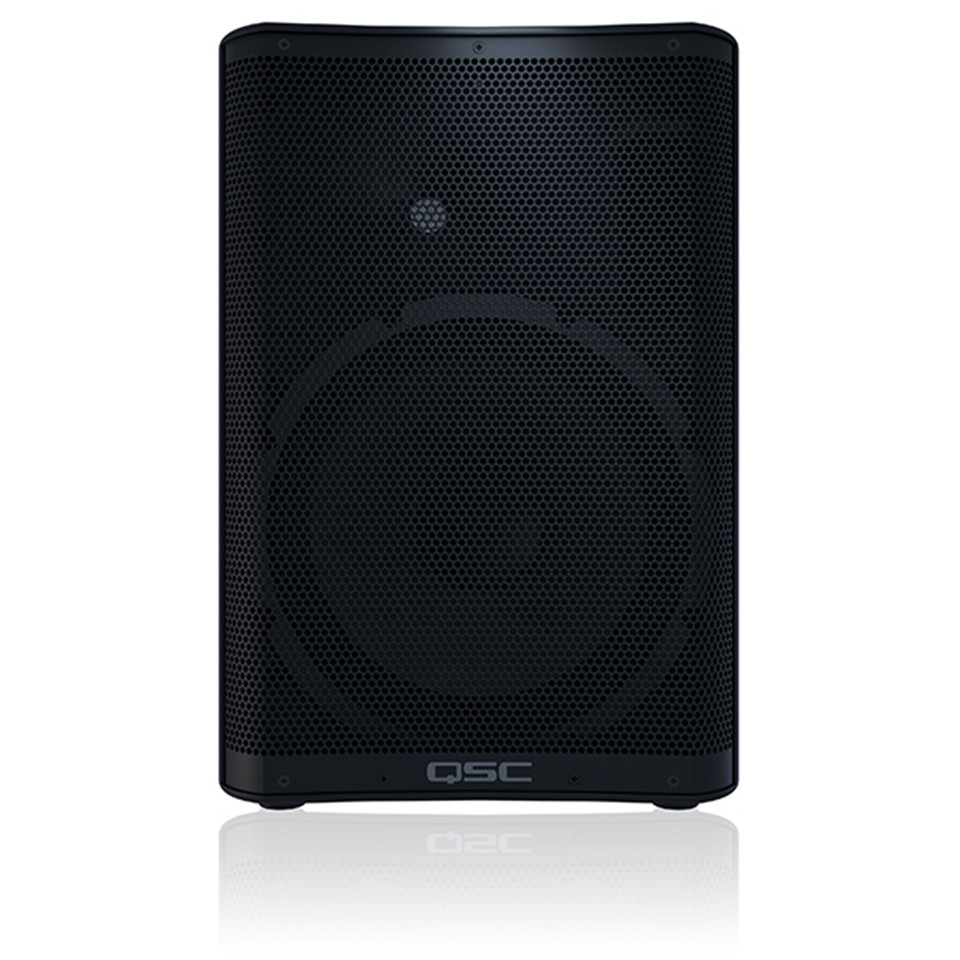

| Model | CP12 |
| Configuration | Two-way active loudspeaker |
| LF Transducer: | 12 in (305 mm), cone |
| HF Transducer: | 1.4 in (35.6 mm) compression driver |
| Frequency Response (-6 dB) | 49 - 20 kHz |
| Frequency Range (-10 dB) | 47 - 20 kHz |
| Nominal Coverage Angle: | 75° Axisymetric |
| Maximum Rated SPL1: | 126 dB |
| Amplifier: | Class D Peak: 800 W (LF), 200 W (HF) |
| Controls: | Power 2 x Gain Mic Boost Push Switch 6-way Contour Selection Switch |
| Indicators: | Power LED 2 x Input Signal LED Input B MIC selected LED Limiter active LED |
| Connectors: | 2 x locking XLR/F ¼” combo (Line Input and Mic/Line input) 1 x 3.5 mm TRS (Stereo Input) 1 x XLR/M (Mix Output) 1 x IEC power connector |
| AC Power Input: | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption 1/8th Power: | 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A |
| Enclosure Material: | Polypropylene |
| Attachment Points: | M10 threaded insert |
| Color: | Black (RAL 9011) |
| Grille: | 18 Gauge powder-coated steel |
| Dimensions (HxWxD): | 20.3 x 13.8 x 12.7 in 516 x 350 x 323 mm |
| Net Weight: | 30.3 lbs (13.7 kg) |
| Shipping Weight: | 36.3 lbs (16.5 kg) |
| Regulatory: | EMC, UL, CB |
| Optional Accessories: | CP12 Tote, CP12 Outdoor Cover, CP12 Yoke |
1 Peak SPL is measured on-axis at 1 m, with dynamic pink noise
*Preliminary specifications are subject to change.
