QSC AD-C6T-BK

QSC AD-C6T-BK

QSC AD-C6T-BK

QSC AD-C6T-BK

6.5" Two-way ceiling speaker, 70/100V transformer with 16Ω bypass, 135° conical DMT coverage,includes C-ring and rails for blind mount installation, Ø245 mm cut-out. Available in black. Priced individually but must be purchased in pairs.

SKU: QSC-AD-C6T-BK
MSRP: $265.00
MAP: $265.00

Overview

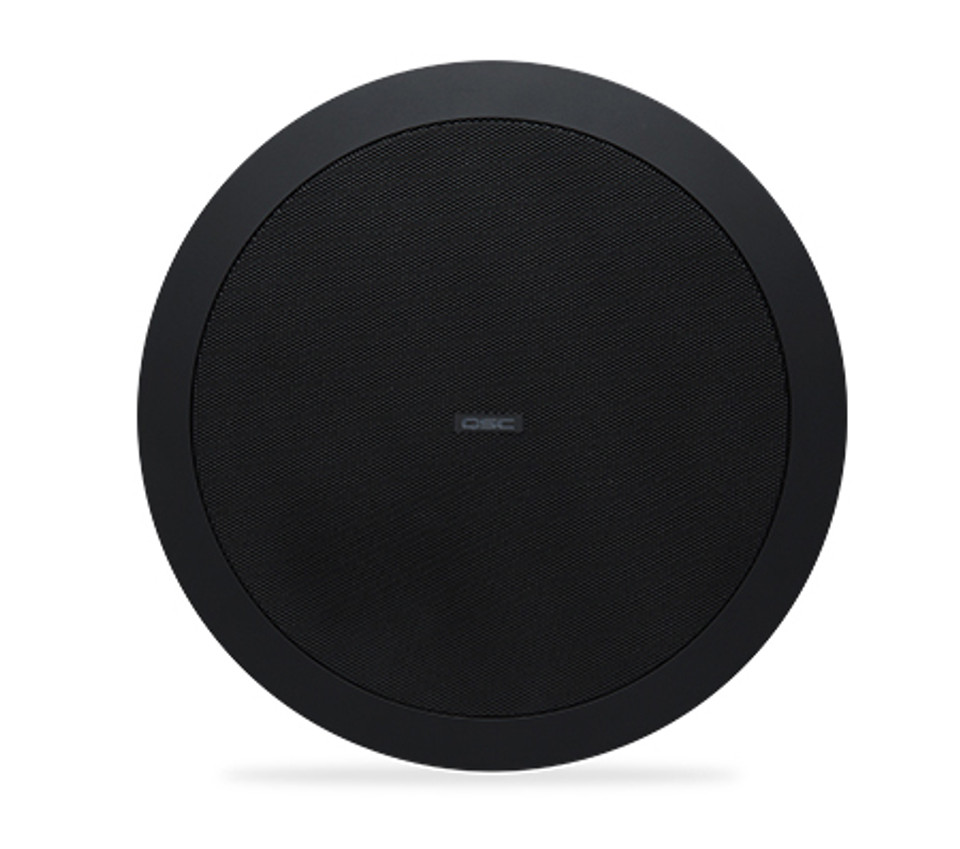

The QSC AD-C6T is a 6" ceiling speaker with consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications. DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area. This speaker features a snap-fit magnetic grille, 3x double stepped, long travel dog-ear blind mount system, and a blemish-free removable logo.

Features

  • Consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications
  • DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area
  • Snap-fit magnetic grille
  • 3x double stepped, long travel dog-ear blind mount system
  • Advanced Intrinsic Correction™ voicings available via Q-SYS™ networked audio processing platforms, including CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with 16? bypass
  • Blemish-free removable logo
  • Removable conduit cover plate, also available as accessory for pre-install wiring
  • UL1480 and UL2043 certified EN54-24 Type A (pending)
  • Available in black (RAL 9011)
  • Complete EASE, CF2, CAD, & BIM information available online

Specs

  • LF Transducer: 165 mm [6.5 in] weather resistant paper cone woofer
  • HF Transducer: 25 mm [1 in] aluminum dome tweeter
  • Rated noise power: [Wrms] 1 60
  • Nominal Impedance: [ohms] 16
  • Transformer Taps:
    • 70V: 60, 30, 15, 7.5 W
    • 100V: 60, 30, 15 W
  • Effective frequency range: 63 Hz – 20 kHz
  • Rated coverage (-6 dB): 140° conical DMT
  • Directivity factor: 6.5
  • Directivity index: 8
  • Sensitivity [dB]: 88
  • Maximum continuous SPL [dB]: 106
  • Maximum peak SPL [dB]: 112
  • Enclosure material: ABS baffle on powder coated steelback can
  • Grille material: Powder coated steel
  • Cutout dimension: 245 mm [9.65 in]
  • Net weight: 4.3 kg [9.5 lb]
  • Product dimensions (Diameter x Height): 280 x 237 mm [11.02 x 9.33 in.]
  • Shipping weight 12.6 kg [27.8 lb] (pair packed)
  • Shipping dimensions (H x W x D) 330 x 737 x 381 mm [13 x 29 x 15 in] (pair packed)
