Overview:

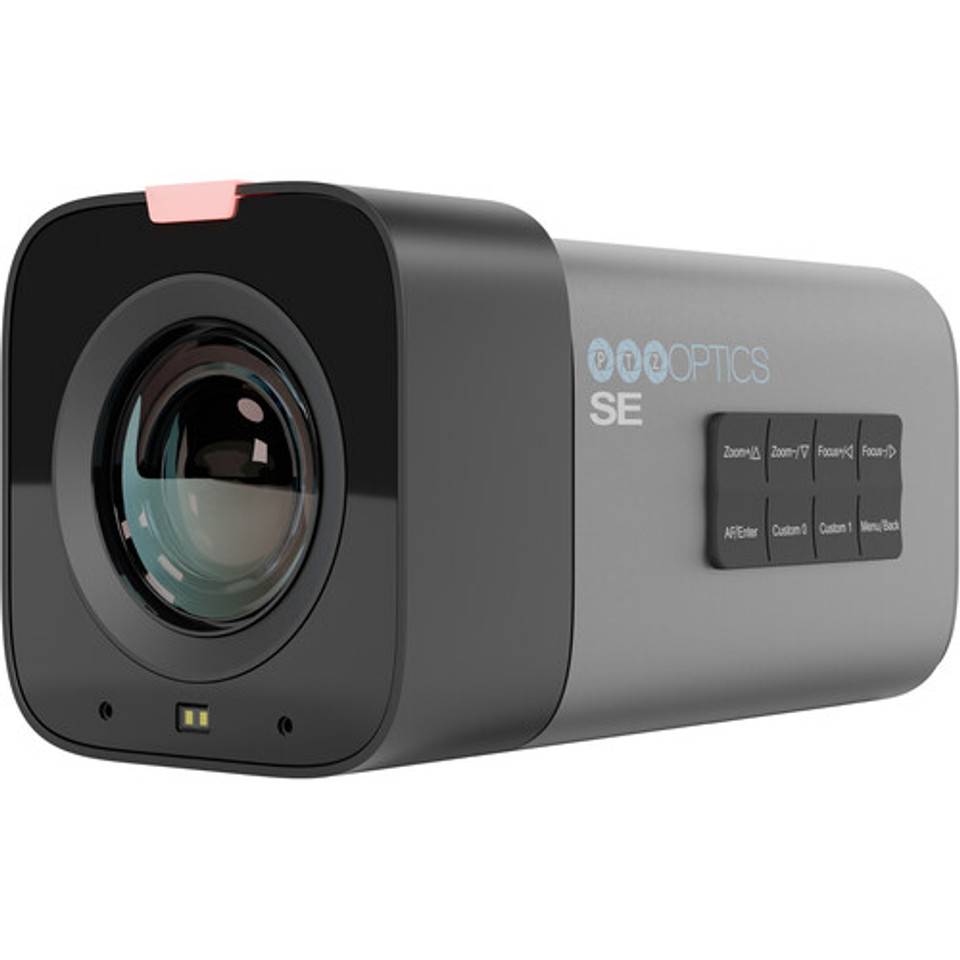

PTZOptics’ Studio SE 12X Camera is the perfect choice, providing crisp 1080p resolution and 20X zoom. Even better, the Studio SE is Hive Linked™ for instant connection to our easy-to-use online platform, Hive Studio, which provides future-ready connectivity and camera control from anywhere.
The Studio SE features SDI, HDMI, USB, and IP output and comes native with NDI® HX3, making it simple to add to video production setups, connect directly to a live production switcher, stream over a network, or record through an SDI interface.
Features:
1080p 60fps Resolution
20x Optical Zoom
Compact & Modern Fixed Design
Hive-Linkedâ„¢ for Smooth Integration
SDI, HDMI, USB, and IP Outputs with NDI® HX3
Specs:
Inputs/Outputs
USB I/O
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output
1 x USB-A Female Input
Video I/O
1x RJ45 (NDI) Output
1x HDMI Output
1x BNC (3G-SDI) Output
Audio I/O
1x 1/8" / 3.5 mm Line Input
1x 1/8" / 3.5 mm Line Output
Internal Storage
Yes
Other Input/Output
Control: 1 x RS485 3-Pin Block
Optical Zoom
20x
Field of View
60.7 to 3.5°
Power
Power Source
AC Adapter with Power Brick (Included), PoE (Not Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
12 VDC
Power Consumption
18 W (Maximum)
Operating Current
2 A (Maximum)
Physical
Mounting
Top: 1x Shoe Mount
Bottom: 1x 1/4"-20 Thread
Color
Gray
Material of Construction
Aluminum, Plastic
Operating Conditions
14 to 104°F / -10 to 40°C at 10 to 80% Humidity
Storage Conditions
-40 to 140°F / -40 to 60°C at 10 to 80% Humidity
Dimensions
5.7 x 3.1 x 3" / 145 x 78.5 x 76 mm
Weight
22.6 oz / 640 g
