Overview

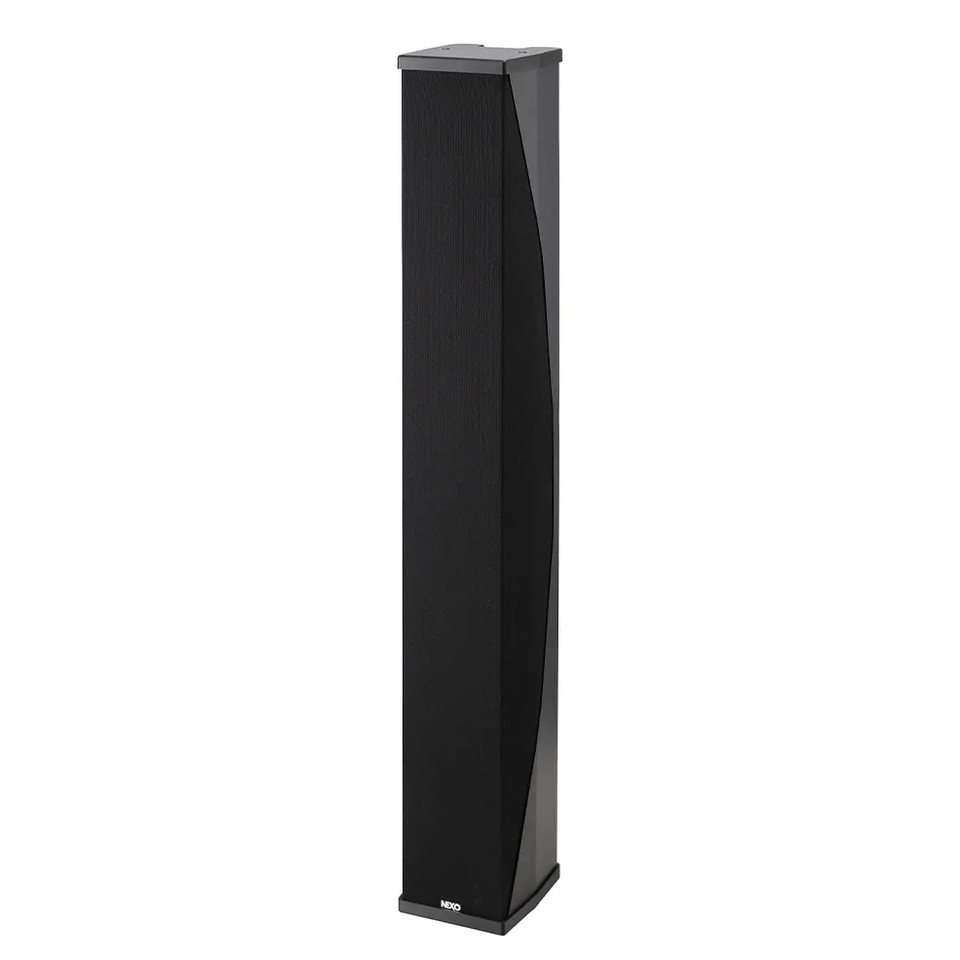

ID84L-TIS
Also available, the ID84L is an LF extension version of the ID84, identical in every way but without the dome tweeters. The cabinet measures 990mm x 150mm x 163 mm.
Also available in black, white and custom RAL colours, the hybrid TIS version (ID84L-TIS) features the Speakon connectivity of the touring version with the cloth covered grille of the installation version.
Key Features
- LF extension column speaker
- 8 x 4 inch LF drivers
- 132 dB peak SPL
- TIS version with cloth covered grille and Speakon connectivity
- Black, white and custom RAL colours
Specifications
|
Frequency Response @-6 dB |
90 Hz to 1.5 kHz |
|
Sensitivity |
102 dB SPL Nominal |
|
Peak SPL@1m |
132 dB |
|
Available Crossover Frequencies |
90 Hz, 120 Hz |
|
HF Dispersion |
Vertical: Depends on ID84 Main module configuration and assembly | Horizontal: 100° |
|
Nominal Impedance |
4Ω |
|
Recommended Power |
650 to 1080 Watts / 4Ω |
Features
|
Number of ways |
1 way |
|
Components |
LF: 8 x 4" 8 Ohms long excursion Neodymium driver |
|
Connectors |
2x NL4 connectors (1+/1-) |
|
Rigging Points |
2 x pairs of M6 - 70 mm pitch rigging points + 2x extra M6 |
|
Construction |
Aluminum body and Magnelis® covers & grille |
|
Finish |
Black powder coating (RAL9005), White powder coating (RAL9016) or Custom RAL |
|
Front Finish |
UV & Fire resistant acoustic fabric |
|
Operating temperature range |
0°C - 40 °C (32° F - 104° F) |
|
Storage temperature range |
-20 °C - 60 °C (-4 ° F - 140° F) |
|
Height x Width x Depth |
990mm x 150mm x 163 mm (39.0" x 5.9" x 6.4") |
|
Weight: Net |
14 kg (31 lbs) |
|
IP Rating |
IP2x |
|
System Operation |
|
|
Recommended powering solution |
NXAMP4x1mk2 Powered TDcontroller: Up to 2 x ID84L per channel |
|
Electronic controllers |
DTDcontroller + DTDAMP4x0.7 : 1 x ID84L per channel |
|
DTDcontroller + DTDAMP4x1.3 : 1 x ID84L per channel |
|
|
NXAMP4x2mk2 Powered TDcontroller: Up to 2 x ID84L per channel |
|
|
NXAMP4x4mk2 Powered TDcontroller: Up to 2 x ID84L per channel |
