Overview

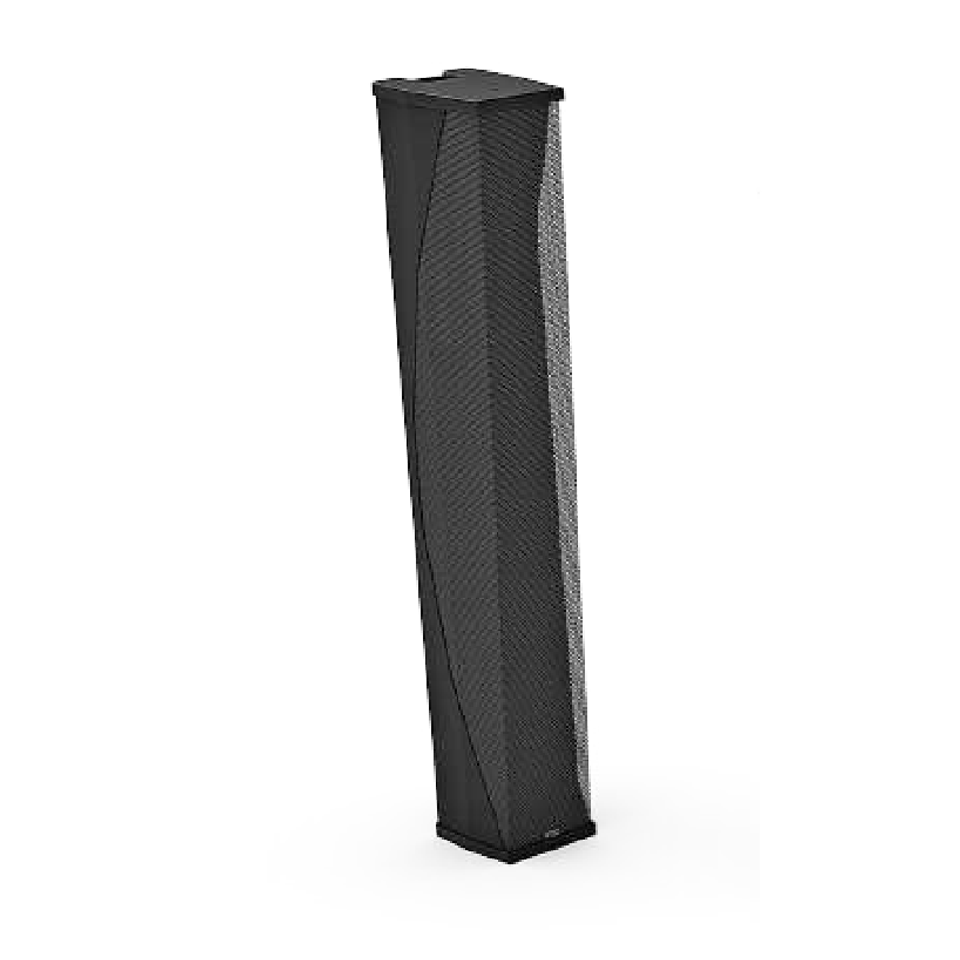

ID84-TIS
Measuring 150mm wide x 215mm deep x the standard 1m high (39.0″ x 5.9″ x 8.5″) and weighing 15kg (33lbs), the ID84 uses eight 4 inch drivers and an array of dome tweeters on a curved baffle in a light-weight aluminium cabinet with a rigid steel spine. The choice of dome tweeters over a conventional HF compression driver results in particularly low levels of distortion and contributes to a ‘hi-fi’ performance that extends the ID84’s suitability well beyond the traditional column speaker role of voice reproduction into music applications. The ID84 achieves a frequency range of 90Hz to 20kHz with a peak SPL of 136dB. The unique directivity switch on the rear panel enables instant switching of vertical HF dispersion, and cabinets can be linked ‘end-to-end’ to create longer columns. Multiple rigging options and a comprehensive range of accessories make it easy to deploy the ID84 in a wide range of fixed installations and mobile applications.
Also available in black, white and custom RAL colours, the hybrid TIS version (ID84-TIS) features the Speakon connectivity of the touring version with the cloth covered grille of the installation version.
Key Features
- Compact, high-powered column speaker
- 8 x 4 inch LF drivers + 8 x dome HF drivers in patent-pending arrangement
- 135 dB peak SPL
- Switchable +0°/-10° (Narrow Mode) or +0°/-25° (Wide Mode) vertical HF dispersion
- TIS version with cloth covered grille and Speakon connectivity
- Black, white and custom RAL colours
Specifications
|
Frequency Response @-6 dB |
90 Hz to 20 kHz |
|
Sensitivity |
105 dB SPL Nominal |
|
Peak SPL@1m |
135 dB |
|
Available Crossover Frequencies |
90 Hz, 120 Hz |
|
HF Dispersion |
Vertical: +0°/-10° (Narrow Mode) or +0°/-25° (Wide mode) | Horizontal: 100° |
|
Nominal Impedance |
4Ω |
|
Recommended Power |
650 to 1080 Watts / 4Ω |
Features
|
Number of ways |
2 way passive |
|
Components |
LF: 8 x 4" 8 Ohms long excursion Neodymium driver HF: 8 x 1" 8 Ohms HF driver on a patent-pending arrangement |
|
Narrow/Wide Mode Selection |
Ruggedized, recessed, waterproof 2 position switch |
|
Connectors |
2x NL4 connectors (2+/2-) + 1x integrated connector in the base |
|
Rigging Points |
2 x pairs of M6 - 70 mm pitch rigging points + 2x extra M6 |
|
Construction |
Aluminum body and Magnelis® covers & grille |
|
Finish |
Black powder coating (RAL9005), White powder coating (RAL9016) or Custom RAL |
|
Front Finish |
UV & Fire resistant acoustic fabric |
|
Operating temperature range |
0°C - 40 °C (32° F - 104° F) |
|
Storage temperature range |
-20 °C - 60 °C (-4 ° F - 140° F) |
|
Height x Width x Depth |
990mm x 150mm x 215 mm (39.0" x 5.9" x 8.5") |
|
Weight: Net |
15 kg (33 lbs) |
|
IP Rating |
IP2x |
|
System Operation |
|
|
Recommended powering solution |
NXAMP4x1mk2 Powered TDcontroller: Up to 2 x ID84 per channel |
|
Electronic controllers |
DTDcontroller + DTDAMP4x0.7 : 1 x ID84 per channel |
|
DTDcontroller + DTDAMP4x1.3 : 1 x ID84 per channel |
|
|
NXAMP4x2mk2 Powered TDcontroller: Up to 2 x ID84 per channel |
|
|
NXAMP4x4mk2 Powered TDcontroller: Up to 2 x ID84 per channel |
