Overview

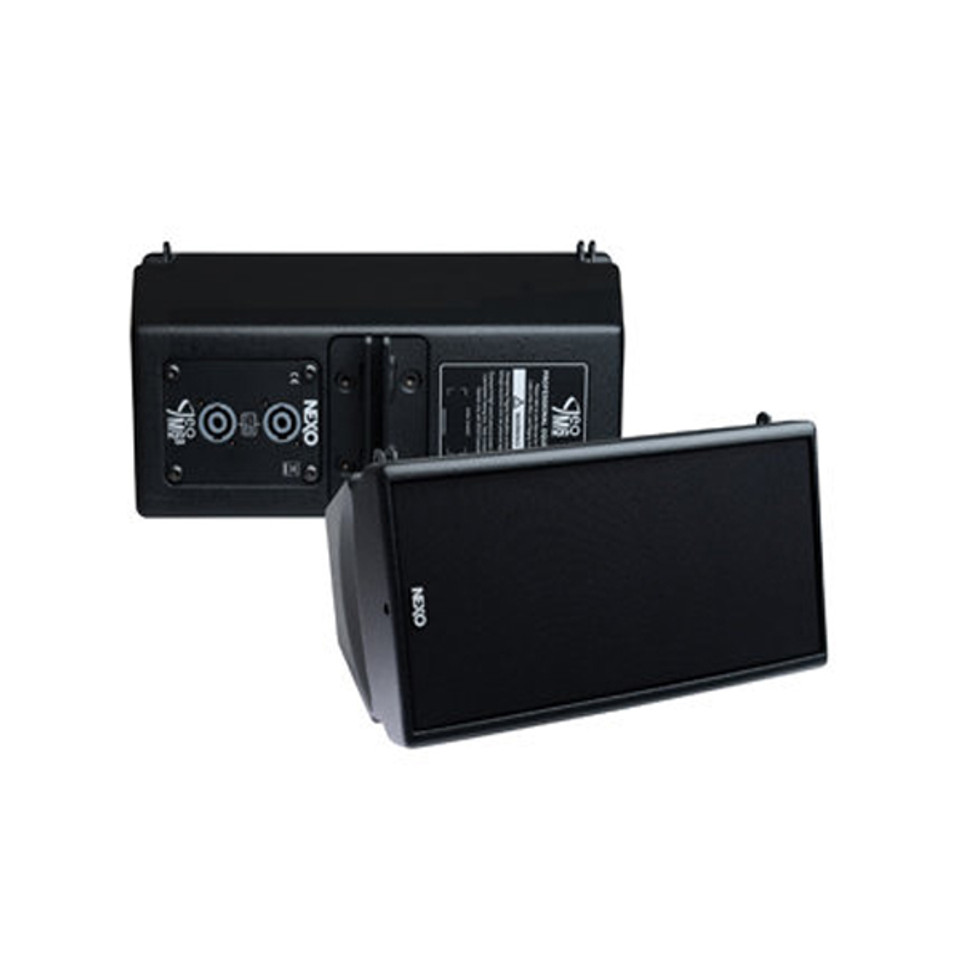

The GEO M6B is a low and mid-frequency partner module to the GEO M620, for applications which demand more powerful reinforcement, such as live music. With one 6.5” 8Ω long-excursion driver, the M6B weighs just 7.6kgs and shares the same physical footprint as the M620 allowing the cabinets to be arrayed together in the same column. Featuring a flare- shaped port tube to increase low frequency efficiency and linearity at high power, the M6B offers a usable range @-6dB of 70Hz-1kHz.
Specifications
| Frequency Response | 75Hz – 120Hz ±3dB (preset-dependent) |
| Usable Range @-6dB | 70Hz – 1kHz |
| Sensitivity 1W @ 1m | 94dB SPL Nominal |
| Nominal Peak SPL @ 1m | 125dB |
| Nominal Impedance | 8Ω |
| Recommended Amplifiers | 450W per box (3 boxes max in parallel on one channel amplifier) |
| Components | LF: 1 x 6.5” 8Ω long excursion driver |
| Height x Width x Depth | 191mm x 373mm x 260mm |
| Weight : Net | 7.6kg |
| Connectors | 2 x NL4 Speakon 4 poles |
| Construction | Lightweight Polyurethane composite |
| Handles | Side Handles |
| Front Finish | Acoustic Fabric fitted front grille |
