Overview

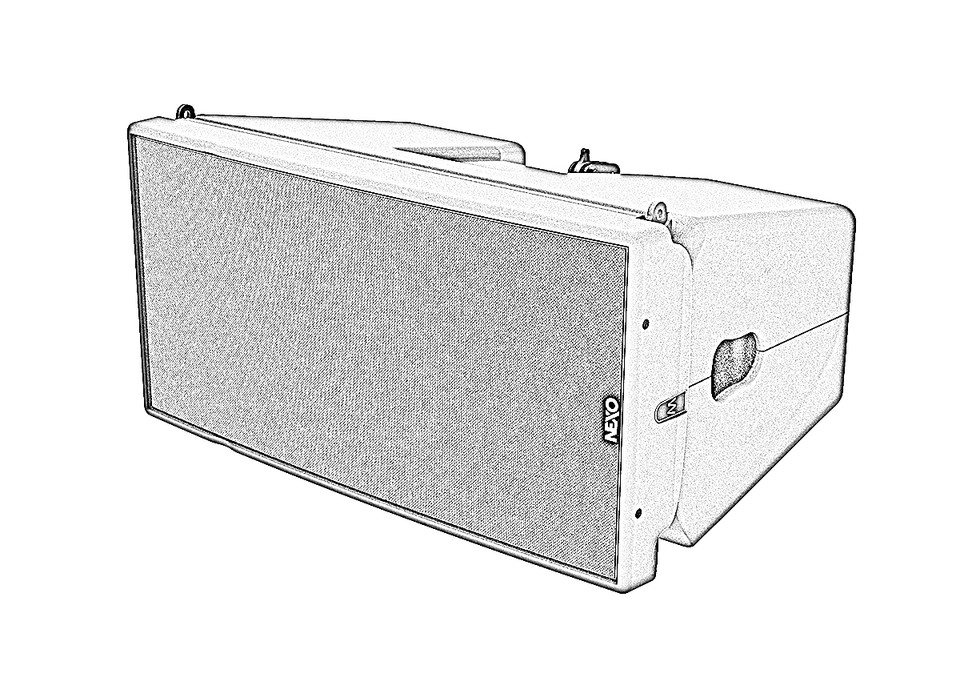

The GEO M1220-I is 2-way passive or active line array element with 12″ LF and 3″ voice coil / 1.4″ throat HF drivers. Measuring 700mm wide x 370mm high x 446mm deep and weighing 34kg, the GEO M1220-I is an installation version of the GEOM12 with 20° vertical dispersion. Cabinets can be set for 80° or 120° horizontal dispersion using magnetic flanges in the waveguide, with no tools required. Cabinets are constructed from a honeycomb-structure urethane co-polymer material and feature integral rigging with no loose parts and handles on the rear and sides. GEO M1220-I is available in black, white or custom RAL colours.
Features
- Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
- Integrated rigging hardware with no loose part and AutoRigTM feature
- Incorporates latest NEXO patented technology from the flagship STM series
- Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications
- Available in black, white and custom RAL colours
Specifications
- Frequency Response @-6 dB: 50 Hz to 20 kHz
- Sensitivity 1W@1m: 105 dB SPL Nominal
- Peak SPL@1m: 140 dB
- Vertical Dispersion: 20°
- Horizontal Dispersion: 80° / 120°
- Passive Mode Crossover Frequency: 1.1 kHz
- Nominal Impedance: Active mode: (8 LF + 16 HF) / Passive mode: 8 Ω
- Recommended Power: Active mode: (1250 Watts LF + 625 W HF) / Passive mode: 1250 Watts
