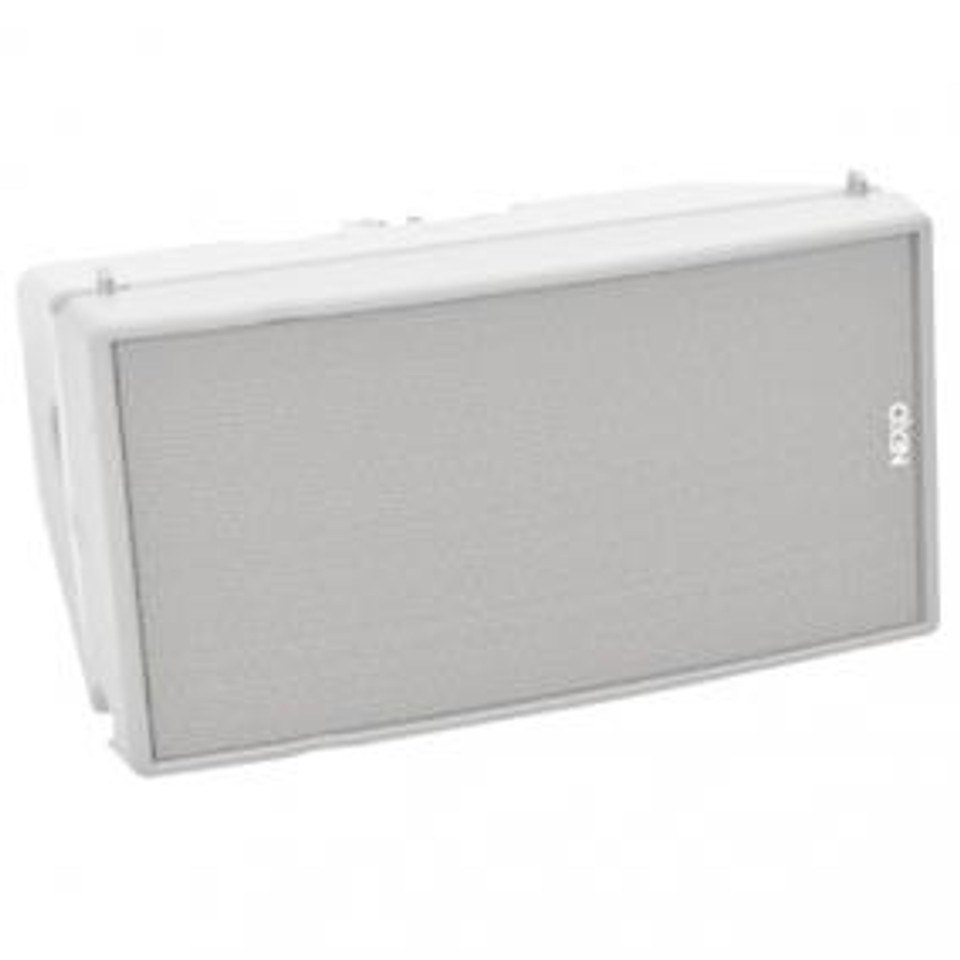

Nexo Geo M1025 10-Inch Passive 25 Degree Install Line Array Speaker White

The Nexo Geo M1025 10-Inch Passive 25° Install Line Array Speaker is the Install / 25° vertical dispersion version of the Geo M10 line array element. Cabinets can be set for 80° or 120° horizontal dispersion using magnetic flanges in the waveguide, with no tools required. Cabinets are constructed from a reticulated urethane co-polymer material and and feature integral rigging with no loose parts and handles on the rear and sides.

Features

• Compact line array element that can be stacked or flown, with or without its companion sub the MSUB15
• Integrated rigging hardware
• Incorporates latest NEXO patented technology from the flagship STM series
• Comprehensive range of versatile, multifunction accessories for deploying the Geo M10 in a wide variety of applications
• Installation version with 25° vertical dispersion

Specifications

• Frequency Response @-6 dB: 59 Hz to 20 kHz
• Sensitivity 1W@1m: 100 dB SPL Nominal
• Peak SPL@1m: 136 dB
• Vertical Dispersion: 25°
• Horizontal Dispersion: 80° / 120°
• Passive Crossover Frequency: 1.3 kHz
• Nominal Impedance: 8 Ohms
• Recommended Power: 750 Watts
• Drivers:
  • LF Component: 1x 10-inch 8 Ohms long excursion Neodymium driver with PDDTM
  • HF Component: 1x 1.4-inch throat driver on a BEA/FEA optimized HR WavesourceTM
• Connectors: 2x Cable gland with 2 cores cables
• Construction: Lightweight Polyurethane Composite
• Fittings: 4x Side handles (2 vertical + 2 horizontal) + back grip
• Front Finish: Acoustic fabric fitted from grill
• Operating temperature range: 0°C 40 °C (32° F 104° F)
• Storage temperature range: -20 °C 60 °C (-4 ° F 140° F)

System Operation:

• Recommended powering solution: NXAMP4x2mk2 Powered TDcontroller: up to 3x Geo M10 per channel
• Optional powering solution:
  • NXAMP4x1 Powered TDcontroller: 1x Geo M10 per channel
  • NXAMP4x1 Powered TDcontroller (Bridged): up to 2x GEOM10 per channel
  • NXAMP4x4 Powered TDcontroller : up to 4x Geo M10 per channel
  • DTD TDcontroller + DTDAMP4x1.3 Power amplifier: up to 2x Geo M10 per channel

Physical:

• Colour: White
• Dimensions (W x H x D): 531 x 288 x 355 mm
• Weight: 21 kg
