Overview

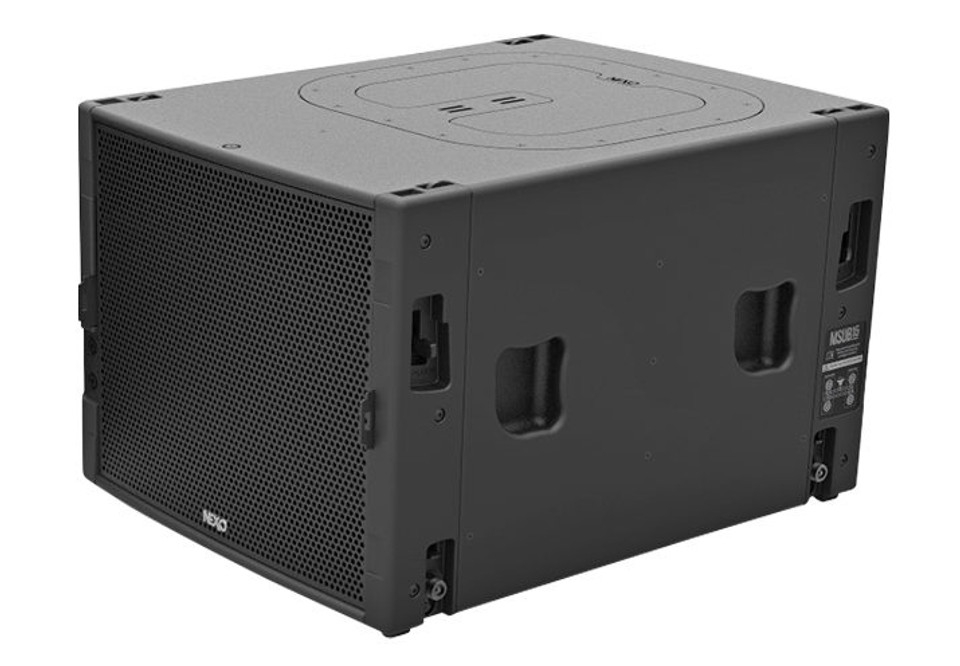

MSUB15
Measuring 437mm wide x 531mm high x 704mm deep and weighing 40Kg, the MSUB15 is the same width as the GEO M10 main cabinet, and 50% higher. Cabinets are constructed from Baltic birch ply with large composite bumpers on the corners, and feature integral rigging. Employing a single 15″ diameter / 3″ voice coil Neodymium driver in a high-efficiency band pass cabinet design with a quadratic shaped profiled port, the MSUB15 can be deployed in Omni or Cardioid modes and is available in black, white or custom RAL colours. The touring version features a steel front grille and Speakon connectors (front and back).
Key Features
- Compact arrayable sub that can be stacked or flown, with or without its companion main element the GEO M10
- Integrated rigging hardware with no loose parts
- Front and rear connectivity for cardioid (front to back) implementation
- Comprehensive range of versatile, multifunction accessories for deploying the MSUB15 in a wide variety of applications
- Touring version with steel grille and Speakon connectors
Specifications
|
Frequency Response @-6 dB |
40 Hz to 120 Hz |
|
Sensitivity 1W@1m |
101 dB SPL Nominal |
|
Peak SPL@1m |
136 dB |
|
Available Crossover Frequencies |
40-65, 40-75, 40-85, 40-95, 40-120 Hz |
|
Nominal Impedance |
8 Ohms |
|
Recommended Power |
900 Watts |
Features
|
Component |
1 x 15” 8 Ohms long excursion Neodymium driver |
|
Height x Width x Depth |
437mm x 531mm x 704mm (17.2” x 20.9” x 27.7”) |
|
Weight: Net |
40 kg / 89 lbs |
|
Connectors |
4 x NL4, 4 poles connectors (1+/1- MSUB15 / 2+/2- Through) |
|
Construction |
Baltic Birch Plywood & textured black or white coating |
|
Fittings |
4 x Side handles |
|
Front Finish |
Steel front grill + back mesh |
|
Operating temperature range |
0°C - 40 °C |
|
Storage temperature range |
-20 °C - 60 °C |
|
System Operation |
|
|
Recommended powering solution |
NXAMP4x2mk2 Powered TDcontroller: up to 2 x MSUB15 per channel |
|
Optional powering solution |
NXAMP4x1 Powered TDcontroller (Bridged): up to 2 x MSUB15 per channel |
|
NXAMP4x4 Powered TDcontroller: up to 3 x MSUB15 per channel |
|
|
DTD TDcontroller + DTDAMP4x1.3 Power amplifier: 1 x MSUB15 per channel |
