Overview

THE NEW REFERENCE IN CLOSE MIKING

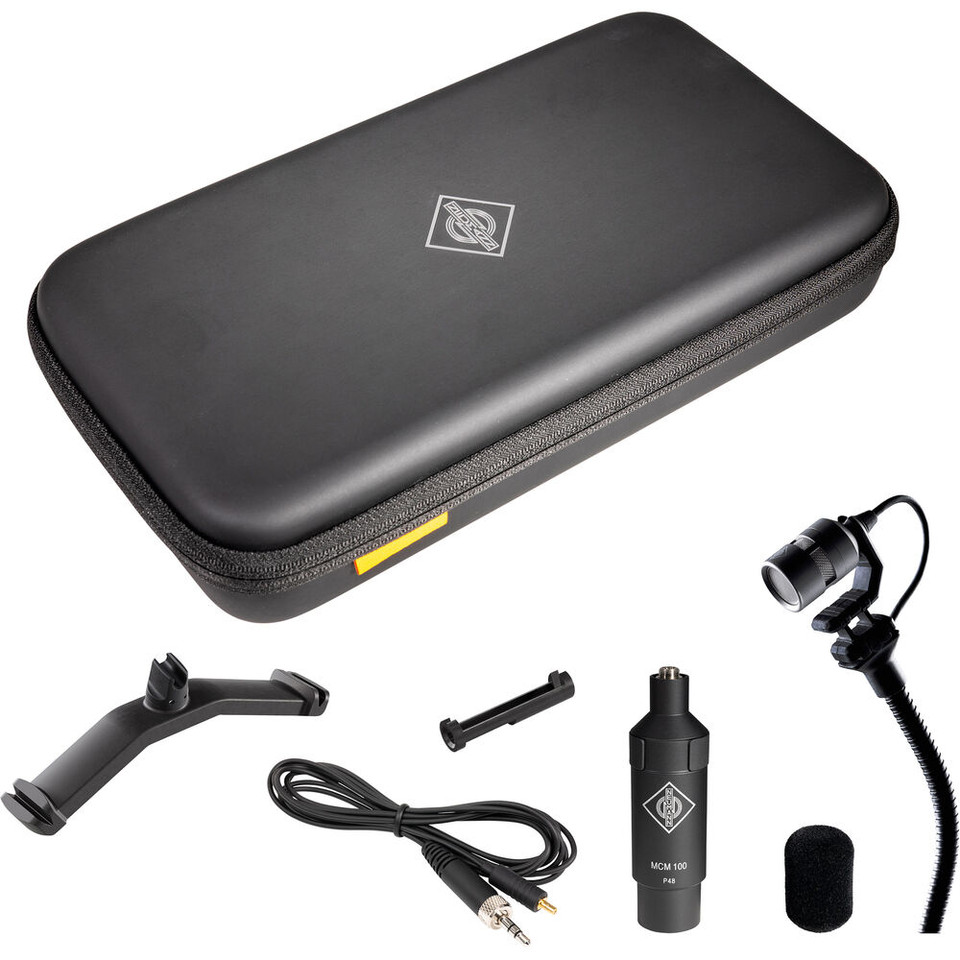

The Miniature Clip Mic MCM System raises the bar of electret capsules. And as a true Neumann, picks the typical sound from all acoustic instruments in live applications. It redefines the standard in natural sound, practicality, reliable mounting, and longevity. The system includes nine instrument-specific mounting clips for a wide variety of acoustic instruments. The modular construction allows for easy replacements and guarantees a superior low cost of ownership.

THE CAPSULE: 8 PARTS OF PERFECTION

A new level of tonal balance, more body, especially in the bass and mid-range, and transparency in the treble: The newly developed KK 14 cardioid capsule overcomes former limitations of the electret principles and catches the signature sound of a wide range of acoustic sources. To achieve this, Neumann developed a layer-based design. Each of the capsulesʼ eight key components are designed for optimal performance, manufactured independently, and assembled by hand later on. The strict quality control also guarantees an unheard level of tonal consistency. Each capsule sounds exactly the same and delivers the neutral Neumann-style sound, saving time during setup and EQ tuning especially when running multiple microphones simultaneously.

With ultra-low self-noise of 23 dBA and an extremely high maximum sound level of 153 dB SPL, the KK 14 delivers perfect results from both very quiet and very loud instruments.

The titanium housing is road tough and protects the more sensitive parts for years to come.

CONNECTIVITY

The MCM System includes interchangeable cable options with 3.5 mm jack, Lemo, 4-pin mini-XLR, and MicroDot connectors – no adapter needed. The microphone can also work with a wired connection using the MCM 100 high-end output stage and the 3.5 mm jack cable.

MOUNTING OPTIONS

A fundamental part of the MCM System is an exhaustive palette of mounting options that allow for simple and reliable microphone positioning on any instrument. Their mechanics are gentle to even the most sensitive surfaces and make mounting a matter of seconds, requiring only one hand for most instruments. The gooseneck holder rotates along one or two axes and locks in 45° increments to allow for precise adjustment.

MC 3 Strings Clip Double Bass

Clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to the strings of a double bass below the bridge.

Specifications

• Acoustical operating principle: Pressure gradient transducer
• Directional Pattern: Cardioid
• Frequency Range: 20 Hz … 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 3.6 mV/Pa ≅ -49 dBV
• Rated Impedance: 50 Ohms (MCM 100)
• Rated load impedance: 1000 Ohms
• Equivalent noise level, CCIR: 31 dB
• Equivalent noise level, A-weighted: 23 dB
• Maximum SPL for THD 0.5%: 153 dB
• Signal-to-noise ratio, CCIR (re. 94 dB SPL): 63 dB
• Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 71 dB
• Maximum output voltage: 12 dBu
• Matching connector: XLR 3 F
• Operating temperature range: 0 °C - +40 °C
• Operating Humidity range: 0 %…75 % rel. hum
• Storage temperature range: −20 °C - +70 °C
• Storage Humidity range: 0 %…95 % rel. hum
