Overview

The Middle Atlantic MW-CFRD-45 is a highly efficient 45RU Split Rear Door designed specifically for WMRK Series Racks, equipped with six powerful fans that provide a total of 1,320 CFM of airflow. This innovative door system is engineered to protect your valuable equipment from the damaging effects of heat generated by high-density installations, such as servers, NVRs, and DVRs. With a 19-inch depth and robust construction, the MW-CFRD-45 offers both exceptional performance and durability, making it an essential component for maintaining optimal operating conditions in demanding environments.

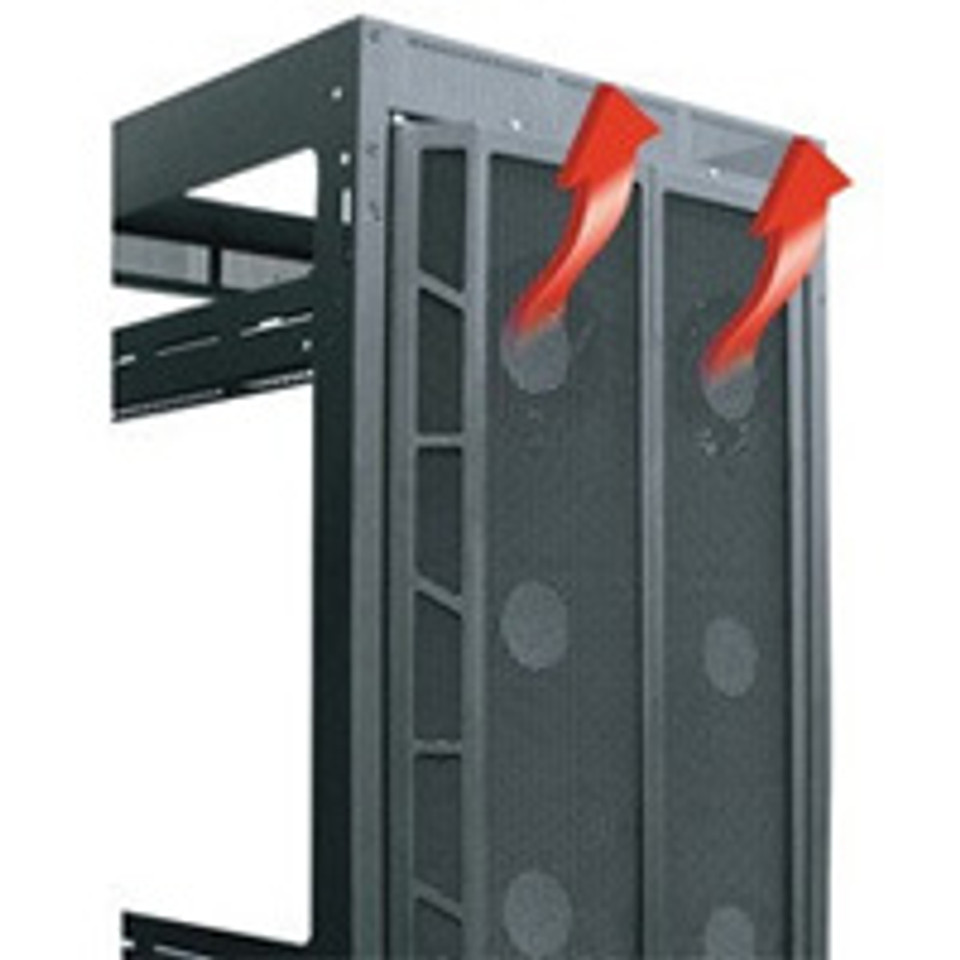

The MW-CFRD-45 features a cupboard-style split rear door design, which is strategically crafted to pull hot air from the rear of the rack enclosure and direct it upwards toward return air ducts. This design ensures that hot air is effectively removed from the cabinet, reducing the risk of overheating and extending the lifespan of your equipment. The split door configuration not only enhances cooling efficiency but also provides easy access to the rear of the rack, facilitating maintenance and equipment management.

One of the key advantages of the MW-CFRD-45 is its adjustable fan placement. The six included fans can be positioned according to the specific airflow requirements of your installation, allowing for customized cooling solutions tailored to your project needs. Each fan is rated to provide 1,320 CFM of free air movement, ensuring that even the most heat-intensive equipment remains within safe operating temperatures. For installations requiring even greater cooling capacity, the door is designed to accommodate up to 10 additional fans, boosting the total airflow to an impressive 3,520 CFM.

To further enhance its versatility, the MW-CFRD-45 comes with two adjustable half blank panels, which allow for greater control over fan placement and airflow direction. These panels can be easily adjusted or supplemented with additional half blank panels, offering the flexibility to create the most effective cooling configuration for your specific setup.

The MW-CFRD-45 is constructed with the same attention to detail and quality that Middle Atlantic is known for, ensuring reliable performance and long-lasting durability. The door's design not only prioritizes functionality but also maintains a sleek, professional appearance that complements the overall aesthetic of the WMRK Series racks.

Features

• 45RU Split Rear Door designed for DRK Series racks with 19-inch depth
• Equipped with 6 fans providing 1,320 CFM of airflow
• Designed to pull hot air from the rear of the rack and direct it upwards
• Adjustable fan placement for customized cooling solutions
• Supports up to 10 additional fans, increasing airflow capacity to 3,520 CFM
• Includes two adjustable half blank panels for versatile fan arrangement
• Ideal for managing heat in high-density installations such as servers, NVRs, and DVRs
• Constructed for durability and long-term performance

Specifications

Dimensions and Measurements

• CFM: 1320
• Depth: 3.97 in (10.1 cm)
• Height: 80 in (203.2 cm)
• Primary Package Weight: 133 lbs (60.3 kg)
• Rack Units: 45 RU
• Volts AC: 120 VAC
• Width: 19.22 in (48.8 cm)

Characteristics and Features

• Component Type: Active

Certifications and Warranties

• Certifications: UL Listed
