Overview

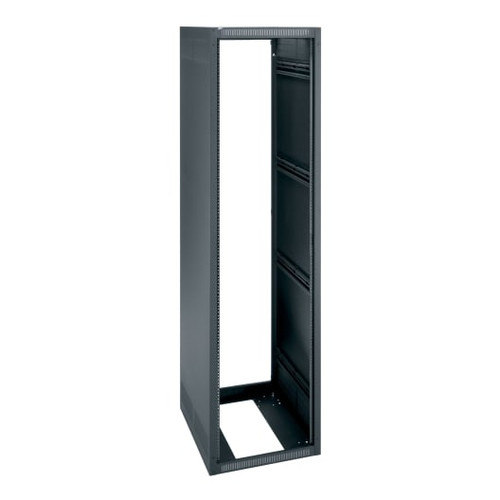

An economical standalone rack with solid sides, the ERK Series can also be ganged to create partitioned multi-bay installations for thermal management control, and security. It is seismically certified to protect your components when installed with ERK-Z4 brackets.
- 35RU and 28" Deep
- Fully welded construction for strength
- Rack sides include top and bottom venting
- Convenient lacing points and slotted rackrail brackets for cable management
- Standard front adjustable 10-32 threaded rackrail with numbered spaces
- Includes key-locked standard rear door
- UL Listed in the US and Canada with a 2,500lbs. (1,100kg) weight capacity
Dimensions & Measurements
| Depth | 28 |
| Height | 65.38 |
| Panel Width | 19 |
| Product Weight | 108.1 |
| Rack Units | 35 RU |
| Shipping Weight | 140 lbs (63.5 kg) |
| UL Load Capacity | 2500 lbs (1,134 kg) |
| Usable Depth | 26.47 |
| Usable Height | 61.38 |
| Width | 22 |
Characteristics & Features
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Material | Steel |
| Product Configuration | Frame Only |
| Rack Rail Type | 10-32 |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Ships Flat | No |
