Overview

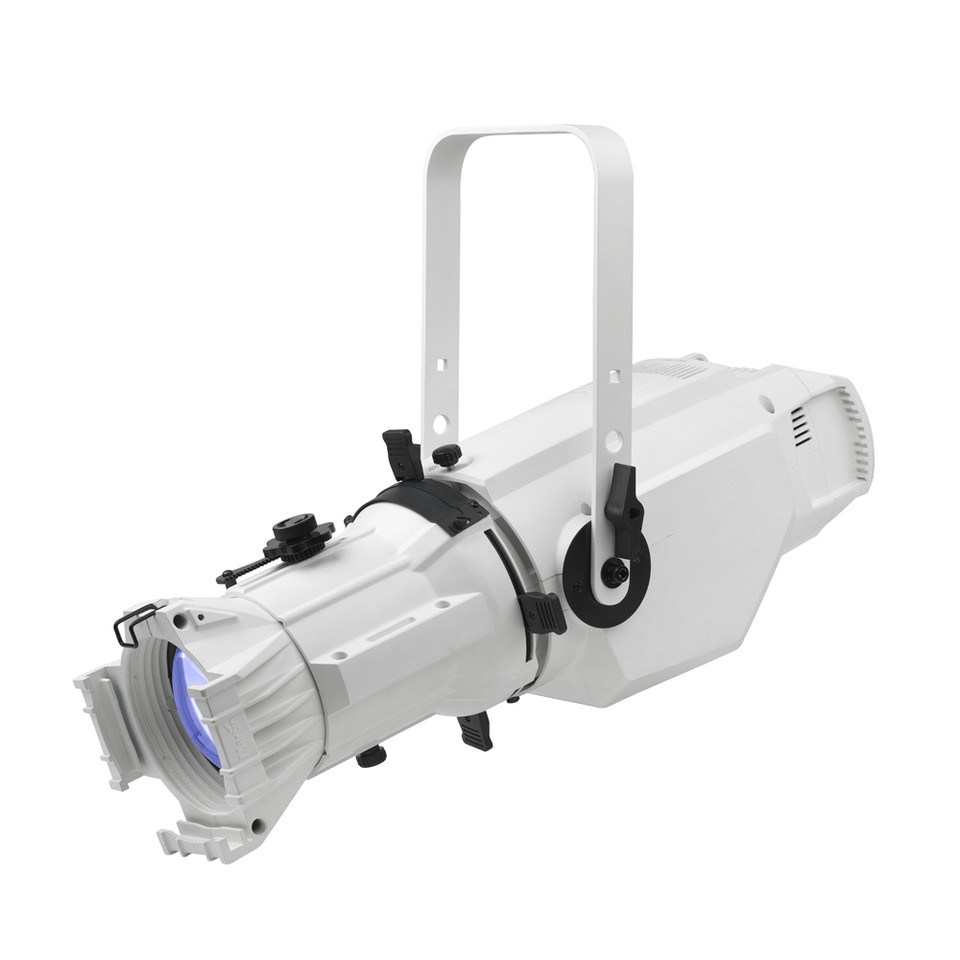

Martin ELP WW (Warm White) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP WW the leading Warm White LED ellipsoidal fixture in its class.

Features

• Impressive light output rating of 7,000 lumens at 3000K.
• Industry-leading CRI rating of 97.
• Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
• Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators

Specifications

Physical

Length: 648 mm (25.5 in.)
Width: 259 mm (10.2 in.)
Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
Weight: 7.7 kg (17 lbs)

Dynamic Effects

Electronic dimming: 0 - 100%, four dimming curve options Strobe and pulse effects: Variable speed and action, random strobe Electronic shutter effect: Instant open and blackout
Control and Programming
Control options: DMX, stand-alone 16-bit control: Intensity Setting and addressing: Control panel with OLED display or via RDM DMX channels: 1/2/4 PWM: 600 - 1200 Hz Standalone programming: Control panel with OLED display DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Transceiver: Opto-isolated RS-485

Optics

Light source: 91 X 3W warm white LEDs Color temperature: 3000K Lens tube options: 19°, 26°, 36°, 50° Minimum LED lifetime: 30,000 hours (to >70% luminous output)* *Figure obtained under manufacturer's test conditions

Photometric Data

Light engine luminous output: 16,000 lumen Fixture luminous output: 7000 lumen CRI (Color Rendering Index) : >97 CQS (Color Quality Scale): >93 TM-30 Rf (IES TM-30-15 Fidelity Index): >93 TM-30 Rg (IES TM-30-15 Gamut Index): >101 TLCI (Television Lighting Consistency Index): >96

Construction

Housing: Die-cast aluminum Color: Black or white variant Protection rating: IP20
Gobos and Color Frame
Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image* Color frame size: 159 X 159 mm (6.25 X 6.25 in.) *Gobo holder not included

Installation

Mounting: Adjustable bracket Location: Indoor use only Orientation: Any Minimum distance to combustible materials: 0.2 m (0.7 ft.) Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
Connections AC power in, thru: Neutrik PowerCON TRUE1 DMX and RDM data in/out: 5-pin locking XLR

Electrical

AC power: 100-240 V nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch-mode Idle power (zero intensity): 5 W Half-cycle RMS inrush current at 230 V, 50 Hz: 15.3 A Fixture link via PowerCON at 100-120 V: Up to 4 fixtures Fixture link via PowerCON at 200-240 V: Up to 9 fixtures Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

Typical Power and Current

110 V, 60 Hz: 2.6 A, 280 W, PF 0.99 208 V, 60 Hz: 1.4 A, 270 W, PF 0.97 230 V, 50 Hz: 1.2 A, 269 W, PF 0.96 240 V, 50 Hz: 1.2 A, 268 W, PF 0.96 Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal

Cooling: Forced air (temperature-regulated, low noise) Maximum ambient temperature (Ta max.): 40° C (104° F) Minimum ambient temperature (Ta min.): 0° C (32° F) Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)

Included Items

Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
Mounting bracket
User manual
