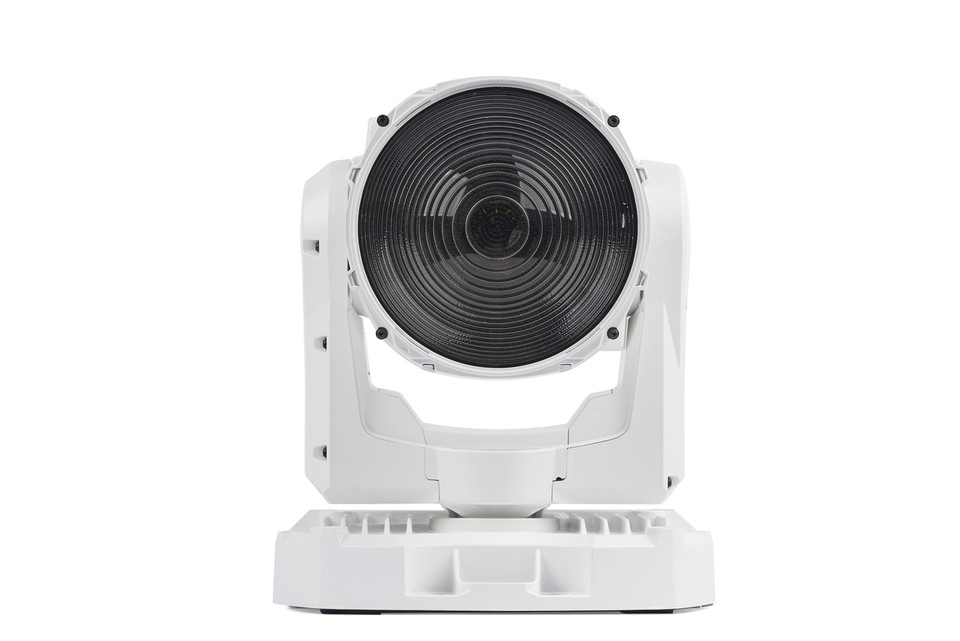

Martin Pro MAC One white in Cardboard

Martin Pro MAC One white in Cardboard

Martin Pro MAC One white in Cardboard

Martin Pro MAC One white in Cardboard

SKU: MAR-90250210HU
MSRP: $3,200.00
MAP: $3,200.00

Overview

Setting a new standard for compact moving heads, MAC One is a revolutionary Beam, Wash and Eye-Candy fixture, featuring a captivating Fresnel lens that transforms any stage or event into an extraordinary visual spectacle. Compact, lightweight, and highly versatile, MAC One defines a new compact class of performance lighting.

MAC One excels in three powerful feature areas. First, its narrow, high-intensity beam packs the same punch as larger, heavier fixtures to enable robust and vibrant aerial effects. Next, its stunning Fresnel lens creates a soft wash with a 4 to 27-degree zoom range, delivering seamless transitions and engaging visual effects. Rounding out the robust feature-set is an innovative backlight system with 24 RGB effect LEDs within the lens to guarantee memorable and show-stopping visual experiences.

With an impressive output of 2,500 lm and a narrow beam intensity of 375,000 cd, MAC One's performance is unparalleled in its category. Powered by a custom-developed 120 W RGBL (Red, Green, Blue, Lime) LED engine, it ensures higher light quality (CRI, TM-30, TLCI) than traditional RGBW fixtures, appealing to discerning lighting designers.

MAC One stands out against competing fixtures by delivering an innovative combination of features in an incredibly compact and low-weight form-factor. The fixture is easy to handle and manage, opening up a world of creative possibilities for lighting designers and users. More fixtures can be used in a show without compromising weight or space limitations, resulting in lower transport costs and a significant return on investment for rental companies.

For additional versatility, MAC One can also be used with the interlocking accessory system originally created for Martin’s VDO Atomic products. Martin fourbar and matrix accessories can also be used to further extend its design potential and ease large quantity deployment. MAC One can be driven with DMX, Art-Net, sACN, and Martin P3 control systems for seamless integration into any lighting setup.

Whether you are a lighting designer, rental company, or event organizer, MAC One is the answer for creating big looks with many fixtures, utilizing a compact fixture for tight spaces or enthralling the stage with captivating eye-candy effects. Transcend expectations, empower creative expression and revolutionize the stage with MAC One.

Features

Light Source

  • Custom in-house developed 120 W RGBL (Red, Green, Blue, Lime) LED offering higher light quality (CRI, TM-30, TLCI) than RGBW
  • Lumen Output: 2500 lm
  • Intensity: 375,000 cd in narrow beam
  • Backlight Effect: 24 x 0.25 W RGB LED
  • Fully calibrated using Martin's Full Gamut Color Calibration
  • Flicker-Free operation
  • LED Driver frequency adjustable for demanding applications

Optics

  • 150 mm Fresnel lens
  • 4 to 27 degrees zoom
  • Defined narrow beam
  • Soft edge wide wash
  • Minimal stray light
  • Minimal color temperature shift from center to edge
  • SoftLens accessory included

Color Palette

  • RGBL color mixing with very bright and vibrant saturated colors, as well as soft pastels and white tones
  • Calibrated and Extended Color Modes
  • Calibrated Color Temperature Control: 2,000 – 12,850 K
  • Calibrated Green Magenta Shift (Tint) Control: Î”uv -0.05 – +0.05
  • Tungsten Emulation Option
  • Virtual Color Wheel

Dynamic Effects

  • More than 200 built-in FX macros with control of foreground color, background color, speed and direction
  • P3 video mapping of fixture Beam and/or Fresnel Backlight pixels
  • P3 Mix allowing crossfade between video looks and DMX looks
  • Extreme speed pan, tilt and zoom

Cooling and Noise

  • Ultra-quiet cooling system (no fans in base, only fans in head)
  • Theater / Broadcast mode at just 23.0 dB(A)
  • Low noise pan, tilt and zoom mode

Construction

  • Weight: 4.4 kg / 9.7 lbs.
  • Dimensions: 254 x 336 x 220

Control

  • DMX, Art-Net, sACN & Martin P3 control
  • Fail-safe bypass on Ethernet ports
  • Battery-powered display for setup and configuration

Installation

  • Single omega bracket attachment
  • M12 threaded holes for direct clamp attachment or attachment to four-bar accessory
  • Optional four-bar accessory
  • Optional grid mount ring accessory

Specifications

Physical

MAC One Fixture
  • Width (across yoke): 226 mm (8.90 in.)
  • Width (base): 254 mm (10.00 in.)
  • Height (head straight up): 336 mm (13.23 in.)
  • Height (maximum): 349 mm (13.74 in.)
  • Depth (head): 220 mm (8.66 in.)
  • Depth (base): 177 mm (6.97 in.)
  • Minimum center-to-center distance in side-by-side installation: 300 mm (11.81 in.)
  • Weight: 4.40 kg (9.70 lbs.)

MAC One Fourbar

  • Length: 1168 mm (45.98 in.)
  • Length (installed end-to-end): 1200 mm (47.24 in.)
  • Width: 88 mm (3.46 in.)
  • Height (without feet): 42 mm (1.65 in.)
  • Height (with feet): 60 mm (2.36 in.)
  • Weight: 3.20 kg (7.05 lbs.)

MAC One VDO Grid Mount Ring

  • Width: 282 mm (11.10 in.)
  • Width (installed side-to-side): 300 mm (11.81 in.)
  • Height: 282 mm (11.10 in.)
  • Height (installed side-to-side): 300 mm (11.81 in.)
  • Depth: 80 mm (3.15 in.)
  • Weight: 0.75 kg (1.65 lbs.)

MAC One Dual VDO Header

  • Length: 568 mm (22.36 in.)
  • Length (installed end-to-end): 600 mm (23.62 in.)
  • Width: 85 mm (3.35 in.)
  • Height: 66 mm (2.60 in.)
  • Weight: 2.20 kg (4.85 lbs.)

Dynamic Effects

  • Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
  • Beam Dimming options: Choice of four dimming curves
  • Beam Color Mixing: RGB, independently variable 0 - 100%
  • Beam Color Temperature Control: Variable 2,000 – 12,850 K
  • Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
  • Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
  • Zoom: Motorized with 1:5 zoom ratio, including zoom pulse effect
  • Pan: Motorized 540°
  • Tilt: Motorized 240°
  • Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  • Backlight Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
  • Backlight Dimming options: Choice of four dimming curves
  • Backlight Color Mixing: RGB, independently variable 0 - 100%
  • Backlight Color Temperature Control: Variable 2,000 – 12,850 K
  • Backlight Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
  • Backlight Virtual Color wheel: 48 color presets, continuous rotation & random color
  • Backlight PixelMapping: Individual RGB control of each of the 24 Backlight pixels
  • Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
  • Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combined
  • LED Frequency control: Variable LED PWM control

Control and Programming

  • Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
  • Protocol Detection: Automatic
  • DMX Modes: Compact, Basic, Ludicrous & Compact Direct
  • DMX Channels: 20, 36, 108 & 20
  • 16-bit Controllable Parameters: Beam & Backlight Dimming, Beam Color Mixing, Zoom, Pan and Tilt
  • Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
  • Local User Interface: Backlit LCD Display with battery-powered operation
  • Fixture identification: User-settable ID number
  • DMX Compliance: USITT DMX512-A
  • RDM Compliance: ANSI/ESTA E1.20
  • Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
  • sACN Compliance: ANSI E1.31 - 2016
  • Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
  • DMX/RDM Transceiver: Galvanic-isolated RS-485
  • Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
  • Firmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

Optics

  • Front Lens Diameter: 150 mm (5.91 in.)
  • Zoom Range: 1:5
  • Full Zoom Range at Half Peak (Beam Angle): 4° - 19°
  • Full Zoom Range at Tenth Peak (Field Angle): 6° - 27°
  • Beam Light Source: 1 x 120 W RGBL LED
  • Backlight Light Source: 24 x 0.25 W RGB LED
  • Total Beam LED Engine Power: 120 W
  • Total Backlight LED Engine Power: 6 W
  • Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
  • *Figure obtained under manufacturer's test conditions

Photometric Data

  • Light Engine Luminous Output: 5,700 lumens
  • Fixture Luminous Output Wide: 2,500 lumens
  • Fixture Luminous Output Narrow: 1,900 lumens
  • Peak Luminous Intensity Narrow: 375,000 cd
  • CCT: Variable 2,000 K – 12,850 K (+/- 200 K)
  • CRI (Color Rendering Index) (default): ≥ 77
  • CRI (Color Rendering Index) (optimized): ≥ 86
  • CQS (Color Quality Scale) (default): ≥ 86
  • CQS (Color Quality Scale) (optimized): ≥ 89
  • TM-30 Rf (IES TM-30-15 Fidelity Index) (default): ≥ 80
  • TM-30 Rf (IES TM-30-15 Fidelity Index) (optimized): ≥ 84
  • TM-30 Rg (IES TM-30-15 Gamut Index) (default): ≥ 114
  • TM-30 Rg (IES TM-30-15 Gamut Index) (optimized): ≥ 105
  • TLCI (Television Lighting Consistency Index) (default): ≥ 68
  • TLCI (Television Lighting Consistency Index) (optimized): ≥ 87
  • Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX
  • Backlight LED Refresh Rate: 1,200 Hz
  • Binning: Tight color and flux binning
  • Calibration: Full Gamut Color Calibration of Beam and Backlight
  • Color Modes: Extended Color Mode and Calibrated Color Mode
  • * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
  • * All Photometric Data measured at 6500 K white
  • Construction Housing: High-impact flame-retardant thermoplastic Color: Black Protection rating: IP20

Connections

  • AC mains power in/thru: Neutrik powerCON TRUE1 TOP
  • DMX and RDM data in/thru: Neutrik 5-pin locking XLR
  • Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass:
  • Neutrik etherCON

Electrical

  • AC power: 100-240 V AC nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch mode
  • Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.5 A
  • Typical earth-leakage current: 0.50 mA
  • Power Factor: 0.99 @ 100V , 0.98 @ 120V , 0.94 @ 208V , 0.92 @ 230V , 0.88 @ 240V
  • Max current draw: 2.0 A @ 100V / 120V, 0.9 A @ 208V / 230V / 240V
  • Typical current draw: 1.6 A @ 100 V , 1.4 A @ 120 V , 0.9 A @ 208 V , 0.8 A @ 230 V , 0.8 A @ 240 V *

Power Consumption

  • Maximum: 180 W
  • Typical: 160 W *
  • Idle: 24 W *
  • Hibernation: 9 W *
  • Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  • Typical: full output white, no effects moving, regulated fan speed.
  • Idle: no output, no effects moving, regulated fan speed.
  • Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

Thermal

  • Cooling: Forced air (temperature regulated, low noise, user-definable levels)
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Minimum ambient temperature (Ta min.): 5° C (41° F)
  • Maximum surface temperature, steady state, at 40° C ambient: 55° C(131° F)
  • Total heat dissipation (calculated, +/- 10%): 546 BTU/hr.

Acoustic Data

  • Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 26.3 dB(A)
  • Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.0 dB(A)

Included Items

  • Single omega bracket with 1/4 turn fasteners for rigging clamp attachment
  • SoftLens
  • Multi-Language Safety and Installation Manual
