Overview

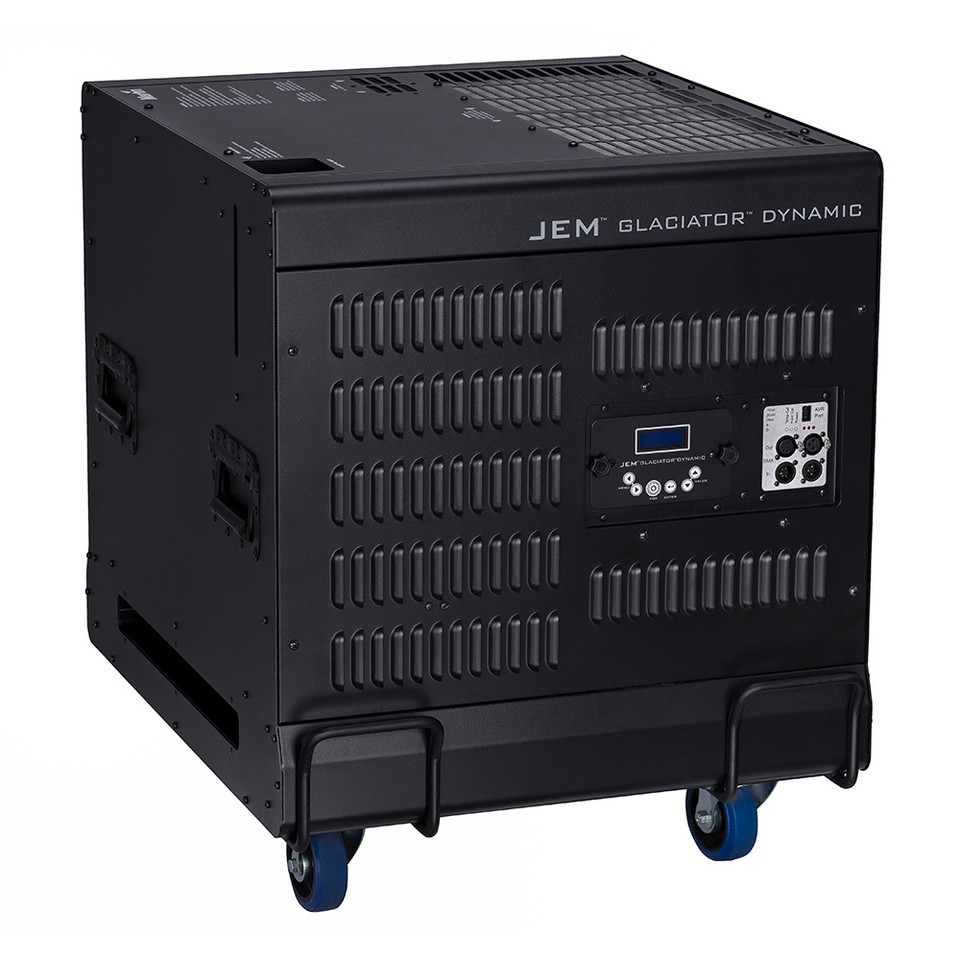

Smaller, quieter, and capable of taking low-fog to more locations—the live event industry’s leading low-fog machine returns with its most significant upgrade in over a decade. Martin JEM Glaciator Dynamic is your complete solution for creating dense, billowy clouds of low-lying fog in any venue without the use of industrial gases or ice. Achieve lush fog on stage with longer-lasting effects. Reduce noise with near-silent operation, perfect for theatrical applications. Enjoy more room backstage with an all-new, more compact design. And tour the world with an updated universal power supply. With a full range of premium accessories, three low-fog fluid types to choose from, and streamlined user controls, you can create dramatic atmospheric effects for your production in moments. Just plug in, set the stage, and amaze.

Features:

• Completely self-contained low-fog system—no industrial gases or ice
• Closed-loop refrigeration for colder, dense, longer-lasting low-fog
• Ultra-quiet operation, including low ambient noise in standby
• All-in-one, self-contained solution without the need for external fans, industrial gas tanks, or ice
• All-new Electronic Inverter Drive for improved effects and lower ambient noise
• Fill your stage with low-fog thanks to continuous 80 m³ (2825 ft³) per-minute output
• Even smaller, compact service-friendly design: 785 x 648 x 769 mm (30.9 x 25.5 x 30.2 in.)
• World touring capabilities via a universal power supply that operates at 208-250 V, 50/60 Hz
• Onboard industry standard DMX connectivity (both 3- and 5- pin) for control and integration
• Intuitive user interface with Fast Access Keypad for fast, easy manipulation of low-fog output
• 180° Low-fog outlet engineered for a smooth, consistent low-fog field
• Achieve diverse effects with three premium fluid options
• Simple, one-touch fluid priming
• 5 l internal fluid reservoir provides an hour of continual consistent low-fog output
• (Optional Accessory) JEM Glaciator Dynamic Ducting Kit for 3-way low-fog diversion
• (Optional Accessory) JEM Glaciator Dynamic Fog Blade for creative output points and waterfall-like low-fog effects
• (Optional Accessory) JEM External Fluid Reservoir—25 l low-fog fluid reservoir for hours of uninterrupted use
• (Optional Accessory) Softcover—custom made of reinforced ballistic nylon protects the machine in transit

Specifications

• Physical Length: 785 mm (30.91 in.)
• Width: 648 mm (25.52 in.)
• Height: 769 mm (30.29 in.)
• Height without castors: 636 mm (25.06 in.)
• Weight, dry: 124 kg (274 lb.)
• Weight, filled: 129 kg (285 lb.)

Performance

• Coverage volume: 80 m3 (2825 ft3) minute
• Fluid consumption, continuous maximum output: 70 ml minute
• Ready time (minimum): 5-minutes
• Ready time (optimal): 7-minutes
• Continuous effect output

Control and Programming

• Control options: Integrated digital remote control, fast access keypad, DMX/RDM, master/slave
• Control parameters: Continuous or timer-controlled output
• Low-Fog/Fan: Proportionally controlled output, 0-100%
• Setting and addressing: Control panel with backlit LCD display and 6-button user interface or via RDM
• DMX channels: 1/2
• DMX compliance: ANSI E1.11 - USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20 RDM

Installation

• Location: Dry location only
• Orientation: Horizontal Only
• Clearance around machine: 60 cm (24 in.)
• Ducting: Optional, max length 10 m (32.8 ft.)

Electrical

• AC power: 208 - 250 V single phase, 50/60 Hz
• Typical power consumption, standby: 10 W
• Typical power consumption, maximum: 3500 W
• Power supply unit: Auto-ranging electronic switch-mode
• Integrated resettable circuit breaker: 25 A, 240 V max., 50/60 Hz
• Half-cycle RMS inrush current at 230 V, 50 Hz: 20 A

Acoustic

• Noise level average, maximum low-fog output: 62.76 dBa
• Noise level average, standby: 40.47 dBa

Approvals

• EU safety: EN 60335-1+A11
• EU EMC: EN 61000-6-1, EN 62233
• EU immunity: EN 61000-6-1+A1

Included Items

• Fluid reservoir, 5 l: P/N 34300506
• Fluid reservoir 0.5 l: P/N 34300515
• JEM Glaciator Digital Remote Control: P/N 92765050
